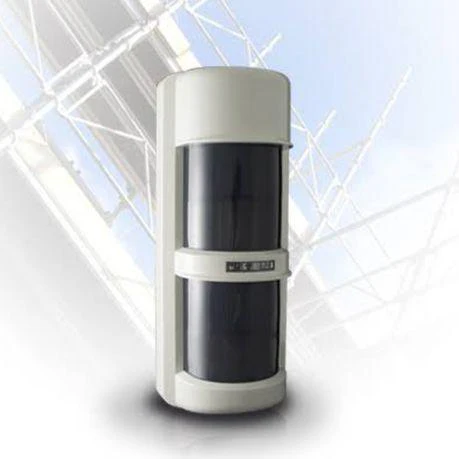

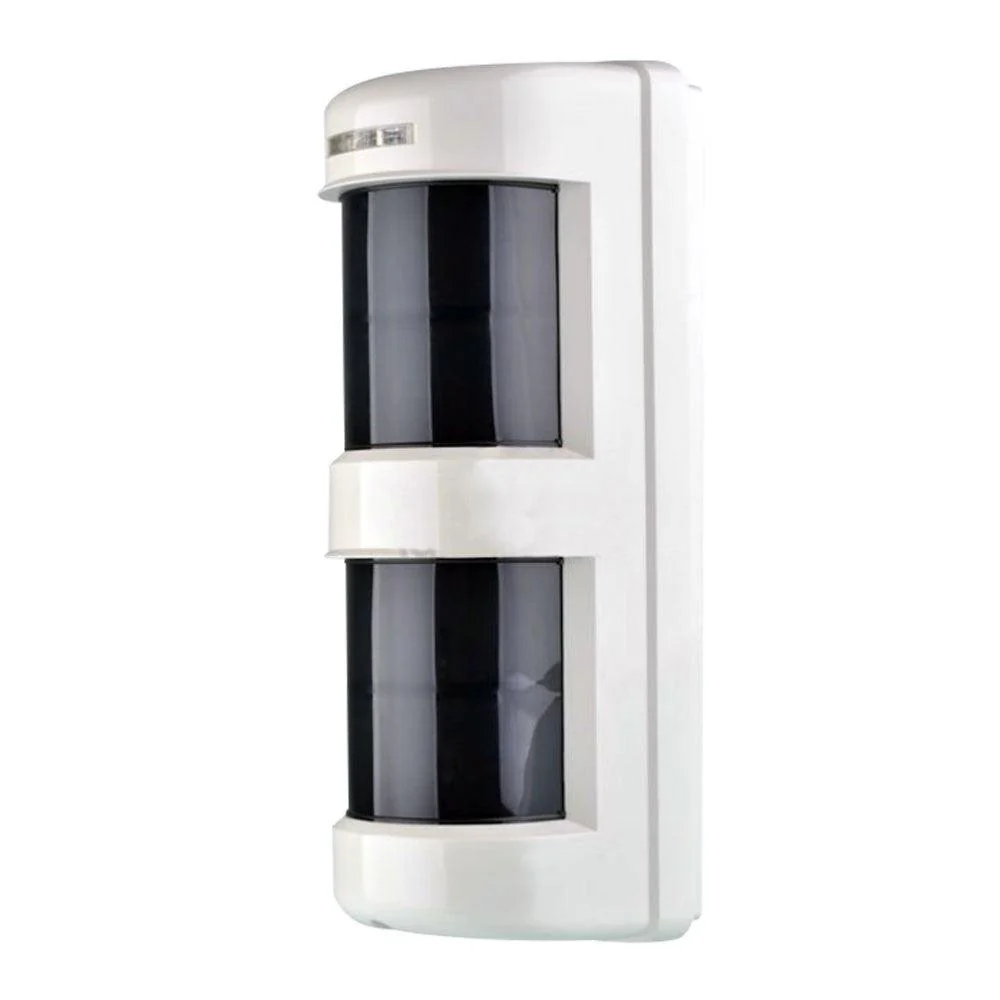

TAKEX 180 DEGREE 12M WIRED BEAM - MS12FE
Dual-Zone PIR's combine a horizontal and downward curtain requiring simultaneous activation for alarm.
With up to 12m x 180˚ range these sensors are perfect for use in both domestic and industrial applications.
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared
|
| Coverage |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) x2 |
| Sensitive zone |
Horizontal zone: 7 zones
Downward zone: 7 zones x2 |
| Mounting height |
0.8 - 1.2m
|
| Area adjustment |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) |
| Supply voltage |
12 to 30V DC (non-polarity)
|
| Current consumption |
40mA MAX.
|
| Alarm output |
Dry contact relay output N.C./N.O. selectable
Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) Contact operation: Detection time + off delay |
| Tamper output |
Dry contact relay output N/C
Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load) |
| LED indicator |
Red LED:
Blinking at warming up (LED disabled) Lighting at alarm (LED disabled) |
| Pulse count |
Once / three times (with a switch)
|
| Sensitivity adjustment |
Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
|
| Detection mode |
AND / OR selectable
|
| Mounting position |
Indoor / Outdoor
|
| Wiring |
Terminals
|
| Weight |
16.5oz (470g)
|
| Appearance |
Body: AES resin
Lens: PE resin |
| Accessory |
Tapping screw: 2
Area masking sheet: 2 |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to +122°F (-20°C to +50°C)
|
