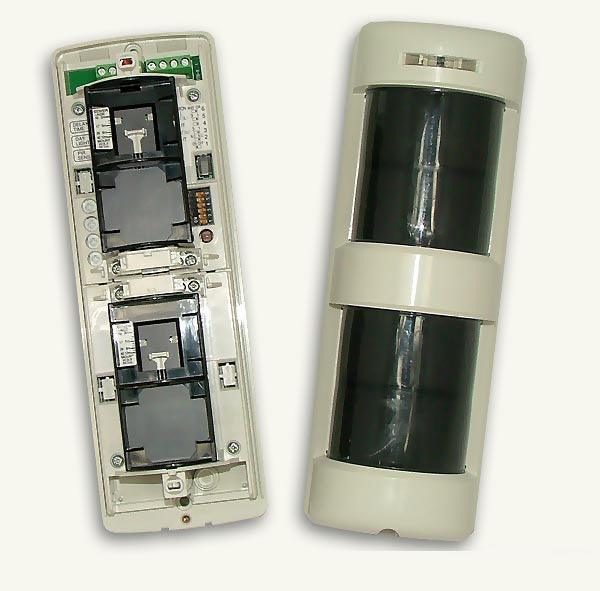

TAKEX DUAL ZONE PIR 90DEG
DUAL ZONE system reduces false alarms, making outdoor use more reliable
DUAL ZONE system
This sensor is equipped with a DUAL ZONE system which initiates an alarm only when detection occurs in both horizontal and downward zones simultaneously. No alarm signal is given if only one zone is activated by small animals, vehicles etc.
Rain Proof Housing
Rain-proof structure facilitates outdoor installation. Various mounting position such as wall and pole can be chosen.
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared
|
| Coverage |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) |
| Sensitive zone |
Horizontal zone: 7 zones
Downward zone: 7 zones |
| Mounting height |
0.8 - 1.2m
|
| Area adjustment |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) |
| Supply voltage |
12 to 30V DC (non-polarity)
|
| Current consumption |
35mA MAX.
|
| Alarm output |
Dry contact relay output N.C./N.O. selectable
Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) Contact operation: Detection time + off delay |
| Tamper output |
Dry contact relay output N/C
Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load) |
| LED indicator |
Red LED:
Blinking at warming up (LED disabled) Lighting at alarm (LED disabled) |
| Pulse count |
Once / three times (with a switch)
|
| Sensitivity adjustment |
Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
|
| Detection mode |
N/A
|
| Mounting position |
Indoor / Outdoor
|
| Wiring |
Terminals
|
| Weight |
13.7oz (390g)
|
| Appearance |
Body: AES resin
Lens: PE resin |
| Accessory |
Tapping screw: 2
Area masking sheet: 1 |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to +122°F (-20°C to +50°C)
|
Please note that pictures may vary from actual product
DUAL ZONE system reduces false alarms, making outdoor use more reliable
DUAL ZONE system
This sensor is equipped with a DUAL ZONE system which initiates an alarm only when detection occurs in both horizontal and downward zones simultaneously. No alarm signal is given if only one zone is activated by small animals, vehicles etc.
Rain Proof Housing
Rain-proof structure facilitates outdoor installation. Various mounting position such as wall and pole can be chosen.
| SPECIFICATIONS | |
|---|---|
| Detection system |
Passive infrared
|
| Coverage |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) |
| Sensitive zone |
Horizontal zone: 7 zones
Downward zone: 7 zones |
| Mounting height |
0.8 - 1.2m
|
| Area adjustment |
Horizontal: +/-90°
Detection distance: 6.6' to 40' (2 to 12m) (By adjusting vertical angle of downward zone) |
| Supply voltage |
12 to 30V DC (non-polarity)
|
| Current consumption |
35mA MAX.
|
| Alarm output |
Dry contact relay output N.C./N.O. selectable
Contact capacity: 30V (AC/DC), 0.25A MAX. (Resistive load) Contact operation: Detection time + off delay |
| Tamper output |
Dry contact relay output N/C
Contact capacity: 30V (AC/DC), 0.1A MAX. (Resistive load) |
| LED indicator |
Red LED:
Blinking at warming up (LED disabled) Lighting at alarm (LED disabled) |
| Pulse count |
Once / three times (with a switch)
|
| Sensitivity adjustment |
Approx. 30% (L) - Approx. 170% (H) (By potentiometer)
|
| Detection mode |
N/A
|
| Mounting position |
Indoor / Outdoor
|
| Wiring |
Terminals
|
| Weight |
13.7oz (390g)
|
| Appearance |
Body: AES resin
Lens: PE resin |
| Accessory |
Tapping screw: 2
Area masking sheet: 1 |
| ENVIRONMENTAL SPECIFICATION | |
|---|---|
| Ambient temperature |
-4°F to +122°F (-20°C to +50°C)
|
Please note that pictures may vary from actual product
