HIKVISION 4CH COLOURVU CCTV KIT – CAT6

Complete kit overview

This Hikvision 4-channel ColourVu CCTV kit over CAT6 delivers true full-colour footage 24/7 while keeping installations neat with structured cabling. ColourVu technology combines a high-sensitivity sensor and built-in warm illumination to retain colour detail in low-light conditions. Using CAT6 with passive video baluns gives tidy cable runs and an easy upgrade path to IP systems.

What’s included

• 4 × Hikvision 2MP ColourVu Bullet Cameras (2.8mm)
• 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
• 1 × 100m CAT6 Cable
• 4 × Full HD Passive Video Baluns (BNC ⇄ RJ45)
• 4 × Male DC Power Jacks
• 1 × 8-Way 12V CCTV Power Supply

Individual component breakdowns

1. Hikvision 2MP ColourVu Bullet Camera (2.8mm)

ColourVu cameras produce full-colour images in low-light using a sensitive sensor and built-in warm illumination, improving identification of people, vehicles and colours at night.

Specifications

• Resolution: 2MP (1920×1080)
• Lens: 2.8mm fixed wide-angle
• Night capability: Full-colour night imaging with warm illumination
• Video outputs: TVI / AHD / CVI / CVBS (switchable)
• Ingress protection: IP67
• Operating temperature: −40°C to +60°C
• Power: 12V DC

2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)

Compact Turbo HD recorder supporting four analogue channels plus an IP channel. Efficient H.265 Pro+ compression and smart motion detection keep storage and alerts under control.

Specifications

• Channels: 4 analogue + 1 IP
• Video outputs: HDMI & VGA (1080p)
• Compression: H.265 Pro+ / H.265 / H.264
• Storage: 1 × SATA (up to 4TB)
• Smart features: Motion Detection 2.0 (human/vehicle filtering)
• Network: 10/100 Mbps Ethernet
• Power: 12V DC

3. 100m CAT6 Cable

Solid-core CAT6 UTP used with baluns to carry HD analogue video while keeping cabling clean and future-proof for IP upgrades.

Uses & Benefits

• Runs HD analogue video via baluns
• Neat routing in conduits and cable trays
• Prepares site for future IP/PoE upgrades

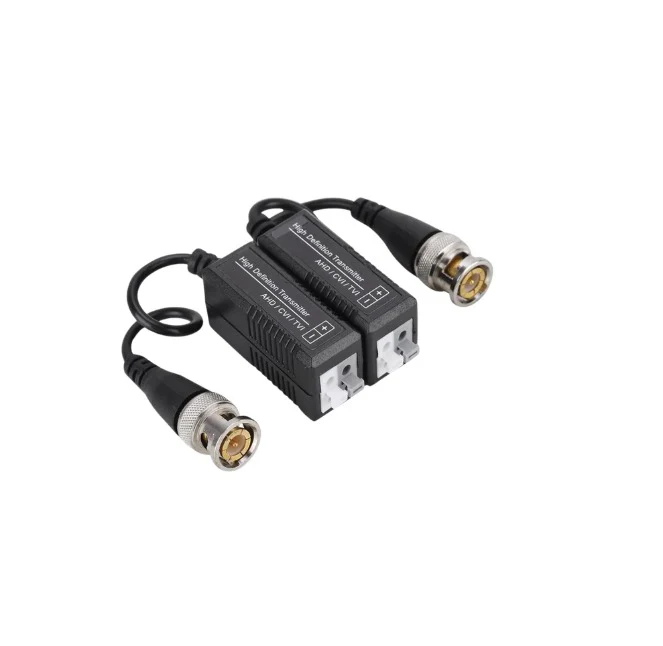

4. Full HD Passive Video Baluns (×4)

Passive baluns convert BNC video to run over CAT6 UTP using one twisted pair per camera—fitted at the camera and DVR ends.

Specifications

• Supports: AHD / CVI / TVI
• Range: Up to 300m (AHD/CVI); approx. 200m (TVI)
• Compatibility: CAT5/5e/6 UTP
• Protection: Built-in surge / interference protection
• Connectors: BNC male → UTP screw terminal

5. Male DC Power Jacks (×4)

Standard male DC barrel connectors used to power each camera from the PSU.

Specifications

• Type: Male DC barrel connector
• Voltage: 12V DC

6. 8-Way 12V CCTV Power Supply

Multi-output 12V power supply providing stable power and built-in protections for up to 8 cameras.

Specifications

• Output: 12V DC
• Channels: 8 outputs (≈1A per channel)
• Protections: Over-current, over-voltage, short-circuit

---

Installation notes

• Use one twisted pair per camera and ensure pair polarity is consistent on both baluns.
• Keep CAT6 runs separate from mains wiring to minimise interference.
• Protect all outdoor connectors with weather boots or silicone sealant.
• Test each run and install HDD before powering the DVR.
• Enable Hik-Connect for remote viewing and secure access.

Below are some optional add-ons for your 4 Channel Kit :

-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)

Ready to buy

This 4-channel ColourVu CAT6 kit gives you full-colour night vision, tidy structured cabling and reliable Hikvision performance — ideal for small properties and businesses that want colour clarity around the clock.
