HIKVISION 4CH HYBRID LIGHT CCTV KIT – CAT6

Complete kit overview

This Hikvision 4-channel Hybrid Light CCTV kit is perfect for small homes, shops and offices that need full-colour night-time footage without moving to IP. Using CAT6 cabling with passive video baluns provides a neat, structured installation while the Hybrid cameras deliver colour at night using built-in white LEDs. Paired with a reliable 4-channel Turbo HD DVR, this kit gives you consistent 1080p recording, smart detection and tidy cable management.

What’s included

• 4 × Hikvision 2MP Hybrid Light Bullet Cameras (2.8mm)
• 1 × Hikvision 4-Channel Turbo HD DVR (DS-7104HGHI-M1)
• 1 × 100m CAT6 Cable
• 4 × Full HD Passive Video Baluns
• 4 × Male DC Power Jacks
• 1 × 8-Way 12V CCTV Power Supply

Individual component breakdowns

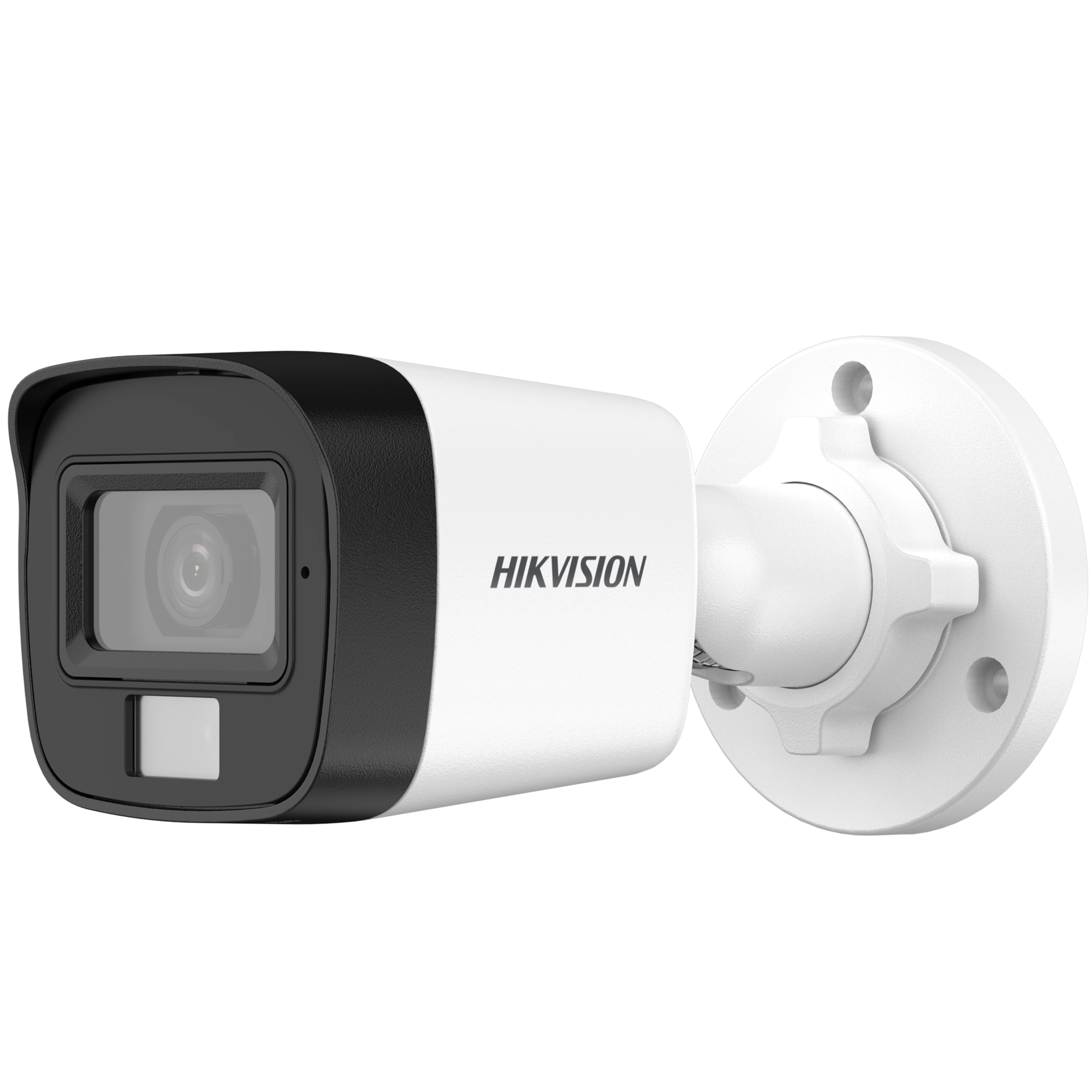

1. Hikvision 2MP Hybrid Light Bullet Camera (2.8mm)

Hybrid Light cameras combine Full HD imaging with built-in white LEDs, allowing full-colour footage in low light and IR fallback where needed. The 2.8mm lens gives wide coverage for entrances, driveways and small outdoor areas.

Specifications

• Resolution: 2MP (1920×1080)
• Lens: 2.8mm fixed
• Illumination: Hybrid white LED + IR (colour night vision with IR fallback)
• Video formats: TVI / AHD / CVI / CVBS (switchable)
• Image features: DWDR, BLC, 2D-DNR
• Ingress protection: IP67
• Operating temperature: −40°C to +60°C
• Power: 12V DC

2. Hikvision 4-Channel DVR (DS-7104HGHI-M1)

Compact Turbo HD recorder supporting four analogue channels and one IP input. Offers efficient compression, HDMI/VGA outputs and smart detection features to reduce false alarms.

Specifications

• Channels: 4 analogue + 1 IP
• Supported formats: HDTVI, AHD, CVI, CVBS
• Video outputs: HDMI & VGA (1080p)
• Compression: H.265 Pro+ / H.265 / H.264
• Storage: 1 × SATA (up to 4TB)
• Smart detection: Motion Detection 2.0 (human/vehicle filtering)
• Network: 10/100 Mbps Ethernet
• Power: 12V DC

3. 100m CAT6 Cable

CAT6 cabling is used to carry HD analogue video via baluns and provides a future-proof backbone for IP upgrades. Neat to route in conduits and ideal for small installations.

Uses & Benefits

• Runs HD analogue video using baluns
• Suitable for future IP/PoE upgrades
• Neat routing through conduits and trays

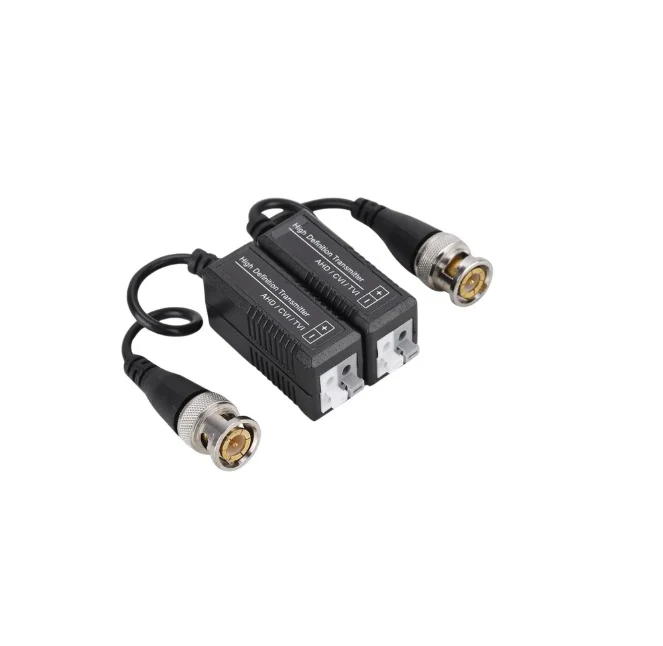

4. Full HD Passive Video Baluns (×4)

Passive baluns convert BNC video to run over CAT6 and back again at the DVR end. One balun is fitted at each end per camera.

Specifications

• Supports: AHD / CVI / TVI
• Range: Up to 300m (AHD/CVI); approx. 200m (TVI)
• Compatibility: CAT5/5e/6 UTP
• Protection: Built-in surge / EMI protection
• Connectors: BNC male → UTP screw terminal

5. Male DC Power Jacks (×4)

Standard male DC barrel connectors used to deliver 12V DC to each camera from the power supply.

Specifications

• Type: Male DC barrel connector
• Voltage: 12V DC

6. 8-Way 12V CCTV Power Supply

Reliable multi-output power supply suitable for small installations — provides stable power to multiple cameras and built-in protections to guard against electrical faults.

Specifications

• Output: 12V DC
• Channels: 8 outputs (1A per channel typical)
• Protections: Over-voltage, over-current, short-circuit

---

Installation Notes

• Use one twisted pair per camera and match pair polarity across both baluns.
• Keep CAT6 runs away from mains wiring to reduce interference.
• Weatherproof outdoor connectors with silicone or boots.
• Install the HDD in the DVR before powering up and update firmware after setup.
• Enable Hik-Connect for remote viewing and alerts.

Below are some optional add-ons for your 4 Channel Kit :

-1TB Toshiba Surveillance Hard Drive (Recommended if you want to store footages incase of an incident that occurred, you can always rewind back to it)
-Junction Boxes (Recommended if you are installing all your cameras outdoor, this helps to protect your cables and connectors from corrosion and harsh weather environments)

Ready to buy

This 4-channel Hybrid Light CCTV kit over CAT6 offers full-colour night surveillance, neat cable management and reliable Hikvision performance — ideal for small residential and commercial properties.
