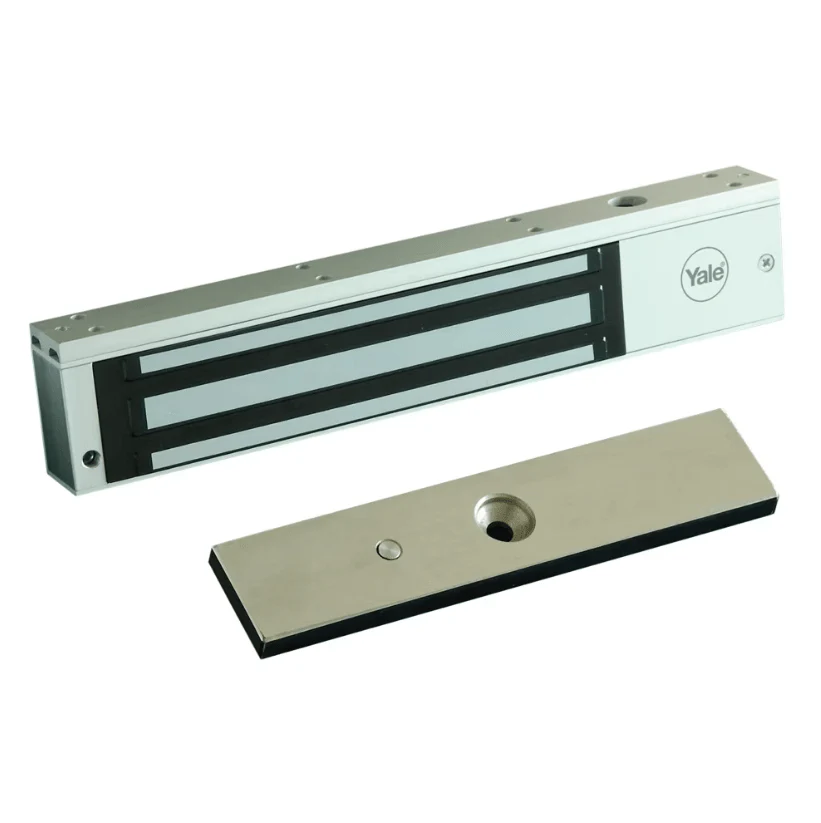

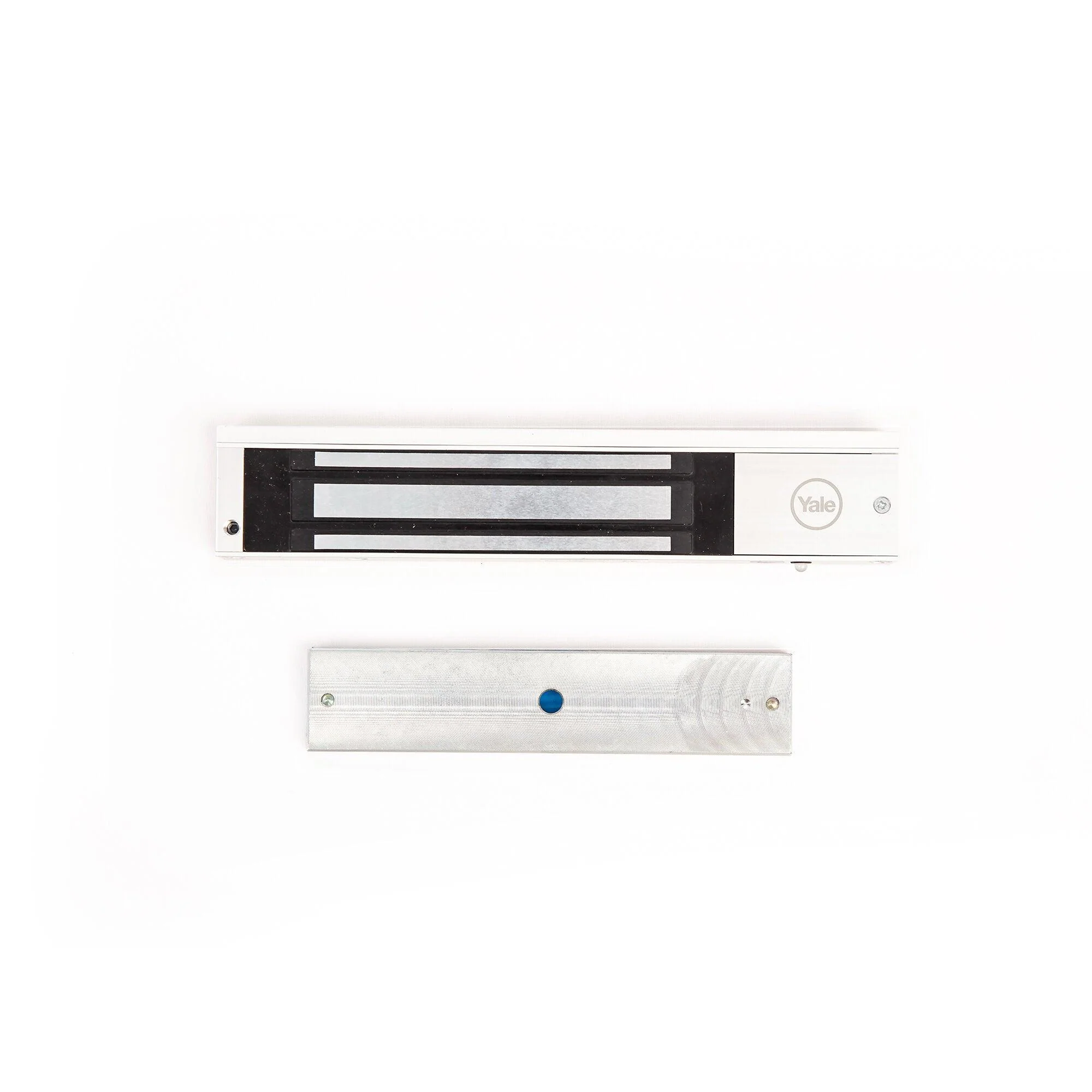

The  YALE 600lbs EM locks were designed to meet fire / life  safety applications by providing an auxiliary locking mechanism that  has no moving parts to bind or wear out for trouble free operation.

This will ensure inhibited release at all times where they have   become  extremely prevalent in applications other than fire/life safety. Suitable for access controlled & secure areas within buildings

Electromagnetic locks are an auxiliary locking mechanism with no moving parts that can bind or wear out for long life trouble free operation. This low energy consumption option with a 600lbs (270kg) holding force is suitable for access controlled medium duty indoor applications.

Features:

• Electroless nickel plated armature plate for zero residual magnetism
• Fail-safe
• Monitored lock status with relay output
• Low energy consumption
• ZL bracket available for inward swinging doors
• CE compliant

Specifications :

• 12/24Vdc selectable (power supply not included)
• Anodized aluminium housing
• Holding force: up to 600lbs (270kg)
• Current drain: 480mA ±10% @ 12Vdc / 240mA ±10% @ 24Vdc
• Holding force: Up to 600lbs
• Operating temperature: -10 to 55°C
• Adjustable mounting bracket
• Dual voltage : 12 or 24 Vdc (selectable)
• Magnet size: 250 x 42 x 26mm
• Armature size: 180 x 38 x 11mm
• Current draw 480mA ±10%/12Vdc
