VECTOR OPTICS DOVETAIL RINGS 30MM 40MOA

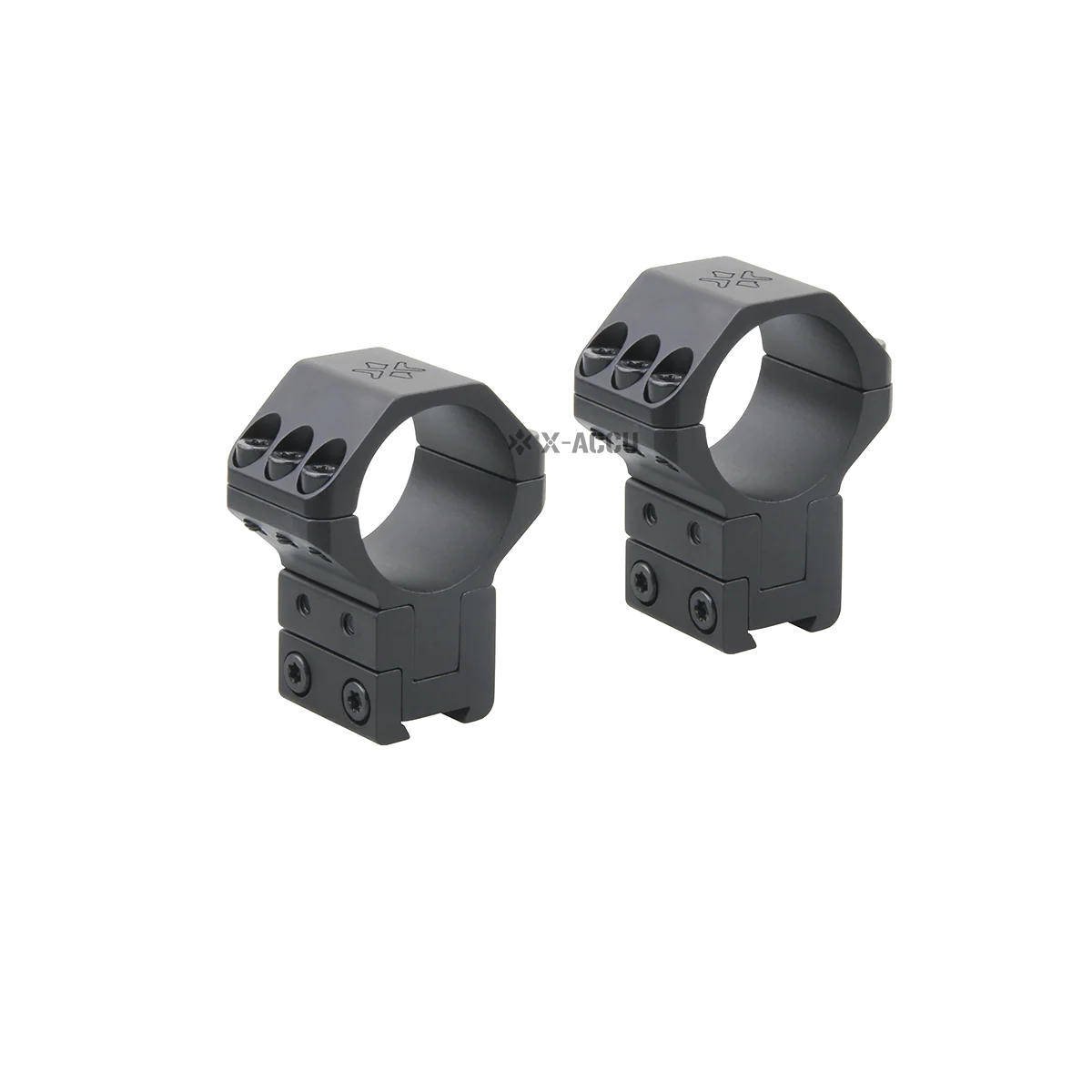

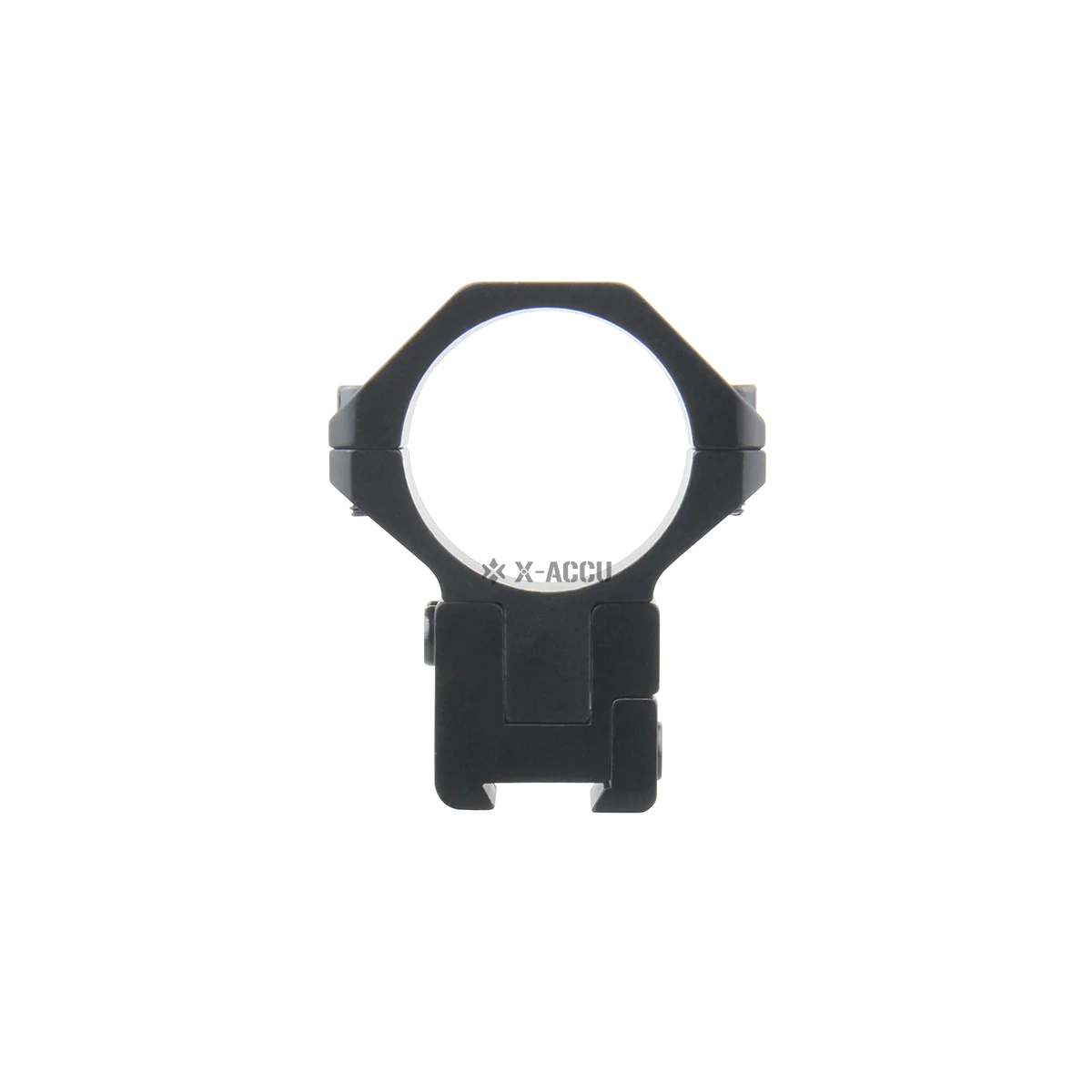

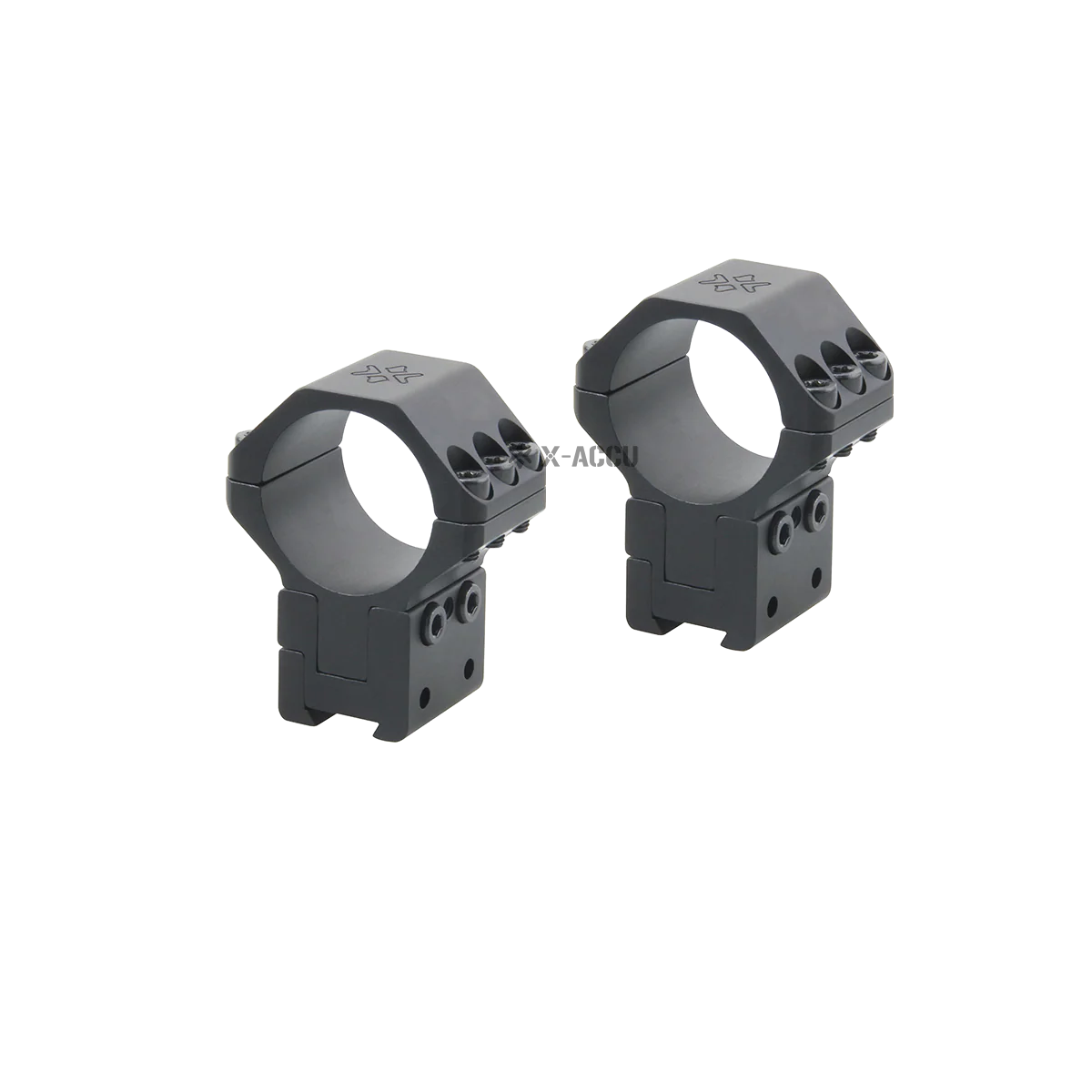

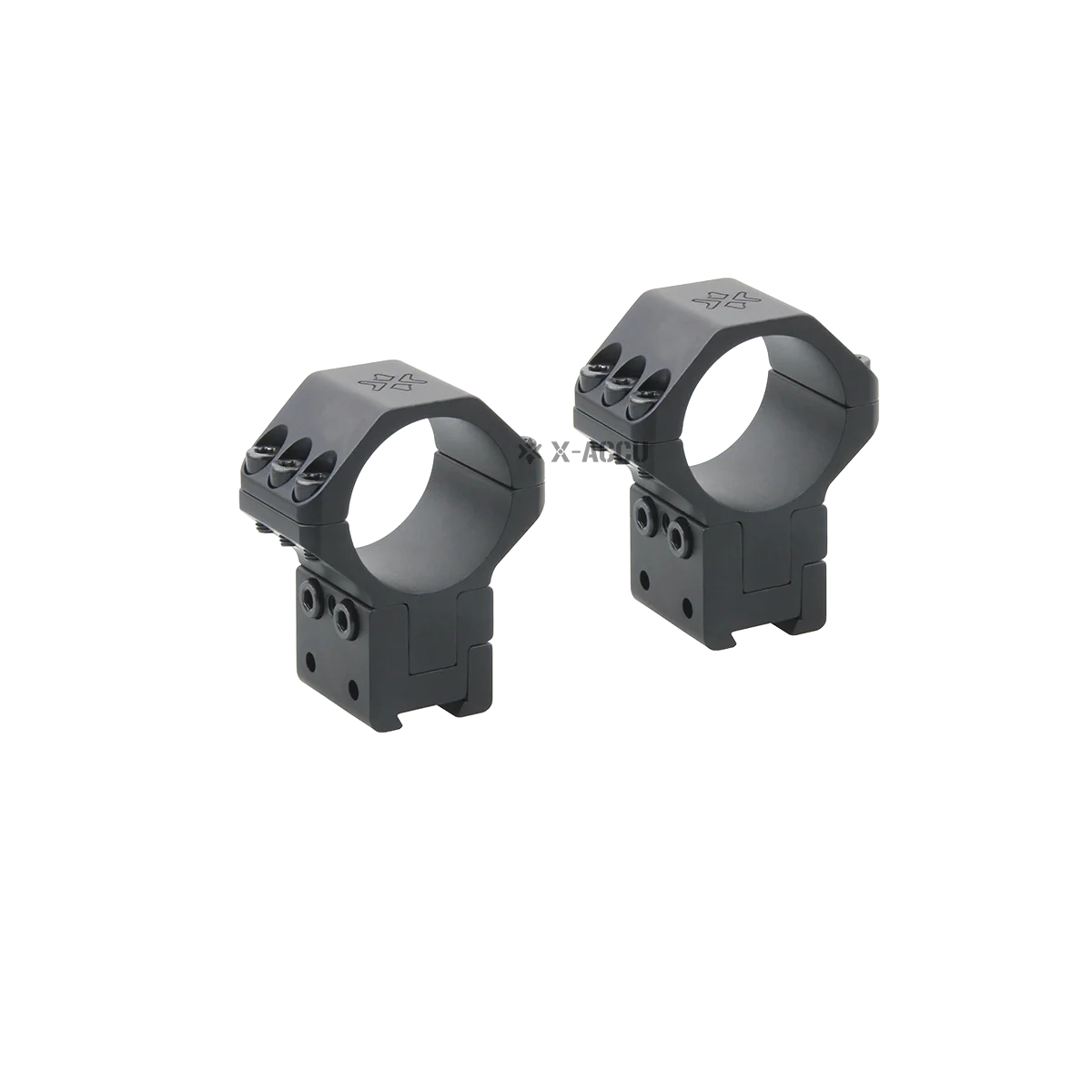

Vector Optics X-ACCU 30mm Adjustable Elevation Dovetail Rings – XASR-3045
Precision-Engineered Scope Rings for Optimal Alignment
The Vector Optics X-ACCU 30mm Adjustable Elevation Dovetail Rings (Model: XASR-3045) are meticulously crafted to provide shooters with a customizable and secure mounting solution. Designed for 30mm scope tubes, these rings offer adjustable elevation settings, ensuring optimal alignment and accuracy for various shooting applications.
Key Features
Adjustable Elevation Height
Allows for elevation adjustments ranging from 35mm to 41mm (1.4" to 1.6") from the base to the ring center, facilitating precise scope alignment.
Robust Construction
Crafted from durable 6061-T6 aluminum alloy with a black matte finish, ensuring strength and resistance to wear.
Secure Mounting
Each ring is secured with six Torx screws, providing a firm grip on the scope and maintaining zero under recoil.
Compatibility
Fits 11mm dovetail rails and accommodates scopes with objective lenses up to 56mm in diameter.
Lightweight Design
Weighs only 140g (4.9oz), adding minimal weight to your firearm setup.
Specifications
| Feature | Details |
|---|---|
| Model | XASR-3045 |
| Tube Diameter | 30mm |
| Elevation Height | 35mm – 41mm (1.4" – 1.6") |
| Ring Width | 26mm / 1.0 inch |
| Weight | 140g / 4.9oz |
| Material | 6061-T6 Aluminum Alloy |
| Finish | Black Matte |
| Mount Type | 11mm Dovetail |
| Screws per Ring | 6 Torx Screws |
| Max Objective Lens | Up to 56mm |
| Torque Specification | Do not exceed 18 in-lbs on ring screws |
What’s in the Box
Vector Optics X-ACCU 30mm Adjustable Elevation Dovetail Rings (Model: XASR-3045)
T15 Torx Wrench
