Organise your power connections with confidence. The TR-722 12V DC Distributor is a compact power hub designed to split one 12V DC input into nine stable outputs. Perfect for powering multiple CCTV cameras, LED strips, routers, access control systems, and other low-voltage devices, it delivers neat, efficient and reliable power distribution from a single source.

Key Features

• 9-channel DC 12V distribution hub for CCTV, LED, routers, and more
• 1.5A per output — up to 13.5A total load capacity (depending on input supply)
• Standard 2.1mm DC barrel jacks for easy plug-and-play connections
• LED indicators for each output channel to monitor status
• Durable metal housing with ventilation for heat dissipation
• Short-circuit and overload protection (varies by model batch)
• Compact and easy to mount on walls, shelves, or inside control boxes

Specifications

• Model: TR-722
• Input voltage: DC 12V ±10%
• Output voltage: DC 12V (same as input)

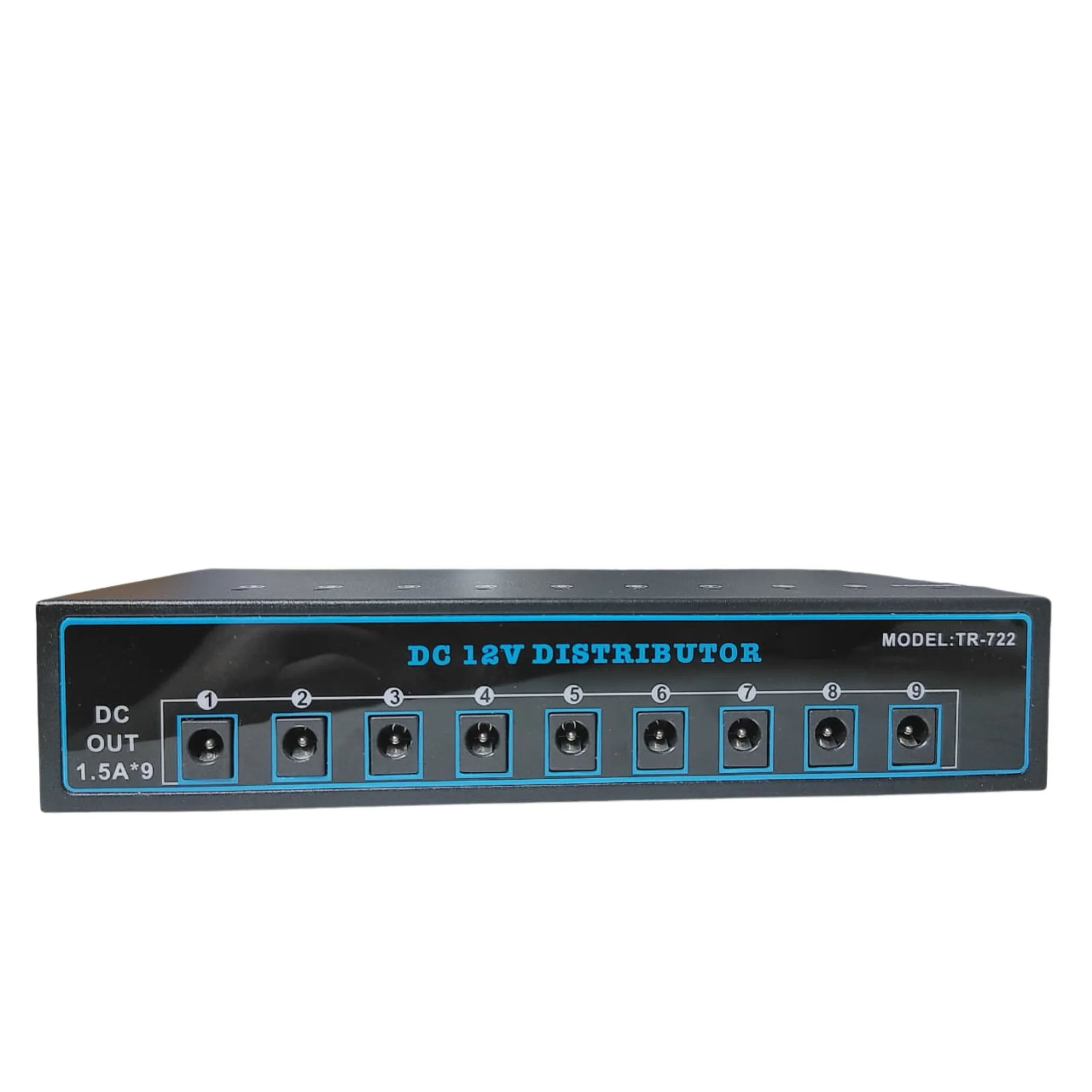

• Outputs: 9 channels, individually labelled (1–9)
• Maximum current per output: 1.5A
• Total maximum load: 13.5A (subject to input supply rating)
• Connectors: 2.1mm × 5.5mm DC barrel jacks
• Housing material: Black powder-coated steel

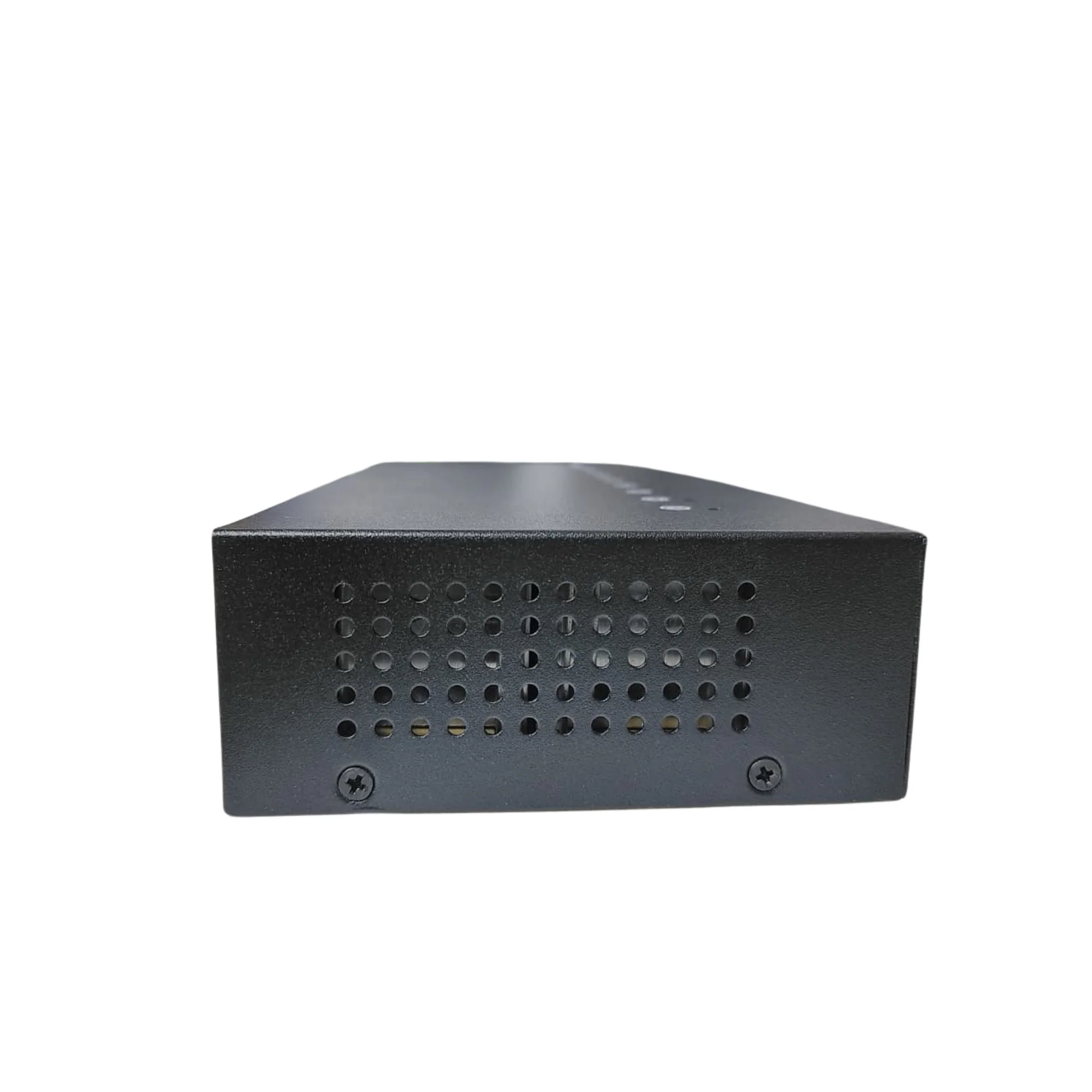

• Cooling: Passive air vents (no fan required)

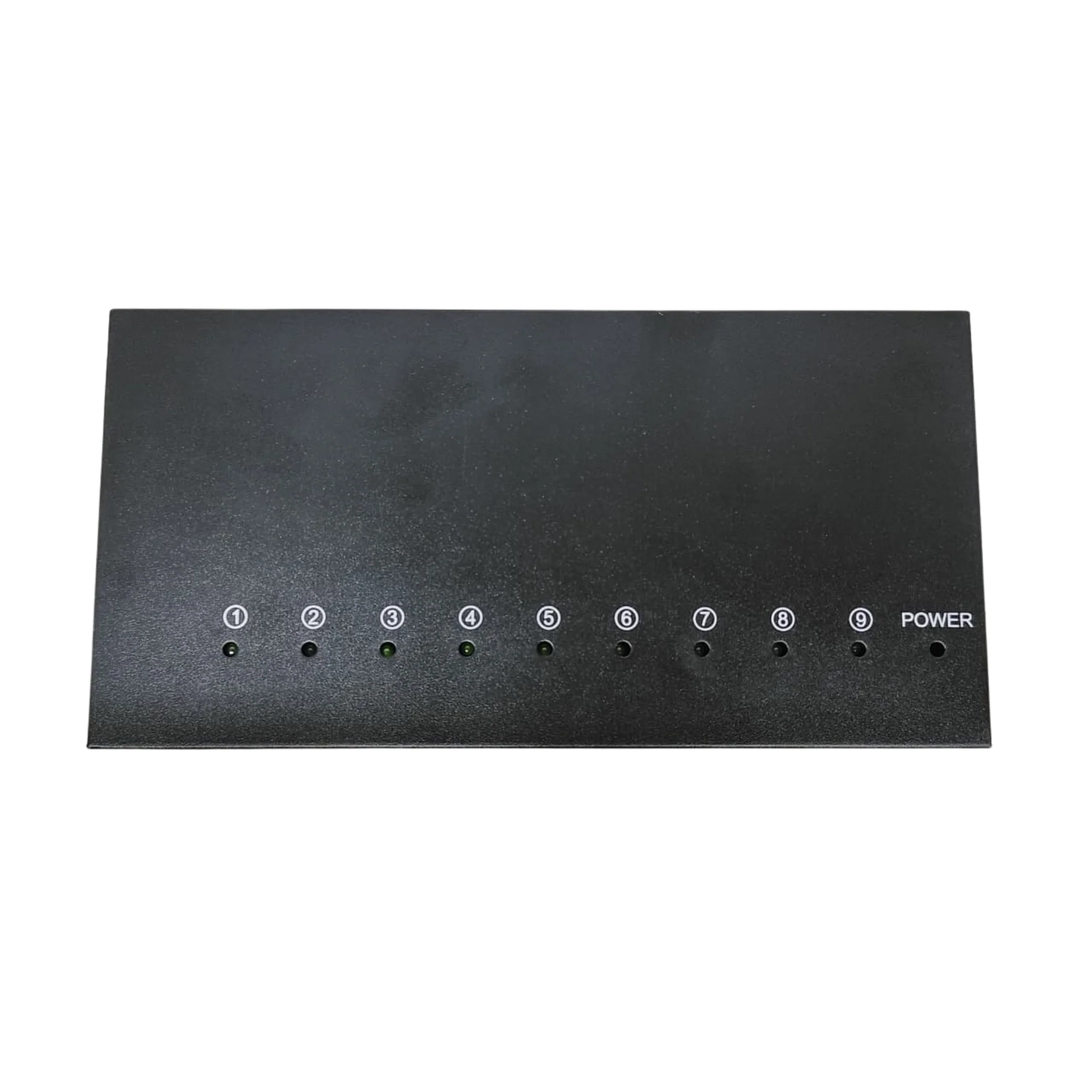

• Indicator LEDs: Yes, one per output channel
• Dimensions: ±175 × 75 × 35 mm
• Weight: ±350 g

Typical Applications

• Powering up to 9 CCTV cameras from a single 12V adapter
• Distributing power to LED lighting strips and small automation devices
• Providing 12V DC to multiple routers, switches, or wireless transmitters
• Used in home, retail, or small office security installations

Installation Notes

• Ensure your input power supply can deliver enough current for all connected devices.
• Example: 9 cameras × 0.5A = 4.5A total → use at least a 5A or higher-rated 12V adapter.
• Check polarity before connecting any devices.
• Allow ventilation space around the unit for passive cooling.
• Mount securely using wall screws or within a control cabinet.

What's in the Box

• 1 × TR-722 12V 9-Channel Power Distribution Box
• 1 × User Guide (if included)
• Mounting screws (optional, depending on package)

Why Choose the TR-722

The TR-722 provides a clean and professional way to manage multiple 12V devices from a single source. With individual LED indicators and up to 1.5A per channel, this compact unit is the perfect solution for CCTV installers, technicians, and DIY enthusiasts looking for a reliable power distribution solution.

TR-722 | 9-Way 12V Power Distributor – Simplify your power management with a reliable 9-channel hub for all your 12V devices. Designed for safety, durability, and efficiency.
