Product Specifications

---

• Housing Fits Standard 17A/H Battery.
• Microprocessor Controlled Charging Output
• Low battery switches off at 10V DC.
• Tri-color LED Indication

LED colors to indicate the following

GREEN = Mains are on

ORANGE = mains failure, Battery is good

RED = Mains failure battery low (11.5VDC)

OFF = Mains failure batter switched off.

• Buzzer tones on battery low and AC Fail
• Resettable Fuse Protection On Output
• 6x Individually Fused
• ABS Plastic Enclosure

Product Features

---

• Microprocessor Controlled charging output.
• Low battery switches off at 10V DC.
• Buzzer tones on battery low and AC Fail.
• Resettable Fuse protection on output.
• Fuse protection on AC input.
• ABS Plastic enclosure

Application usage

---

• Alarm Panel Battery Backup
• CCTV Battery Backup
• Backup Power Supply For Door Controller
• Maglock For An Access Control solutions

Technical Specifications

---

• Input Voltage Range: 110V ~ 230V AC 50HZ
• Output Voltage: 13.8v ~ 14.2v
• Max Current output: 6.4A DC OR 70 Watts
• Relay Contact rating: 10A
• AC Fail output rating: 140mA Positive Switching
• Operating temp: -3c to 60c
• Dimensions(lxbxh): 315 x 230 x 100mm
• Gross Weight:1.30Kg

What's Included :

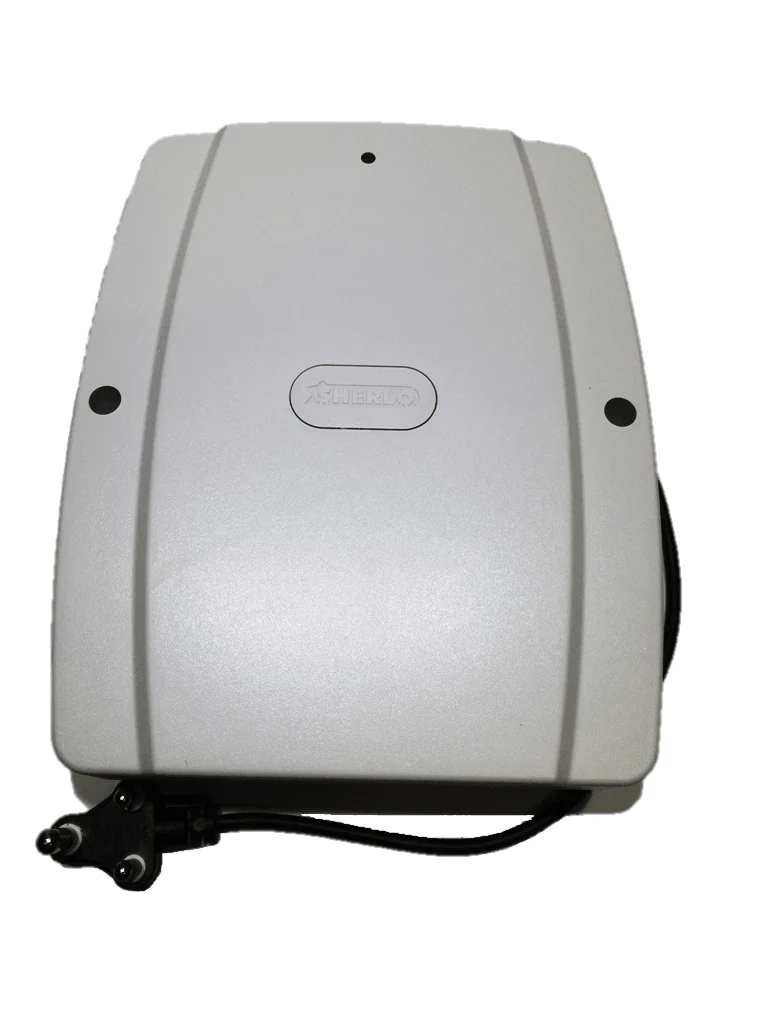

1 X Sherlotronics 13.8Vdc 6.4A Back Up Power Supply Unit
