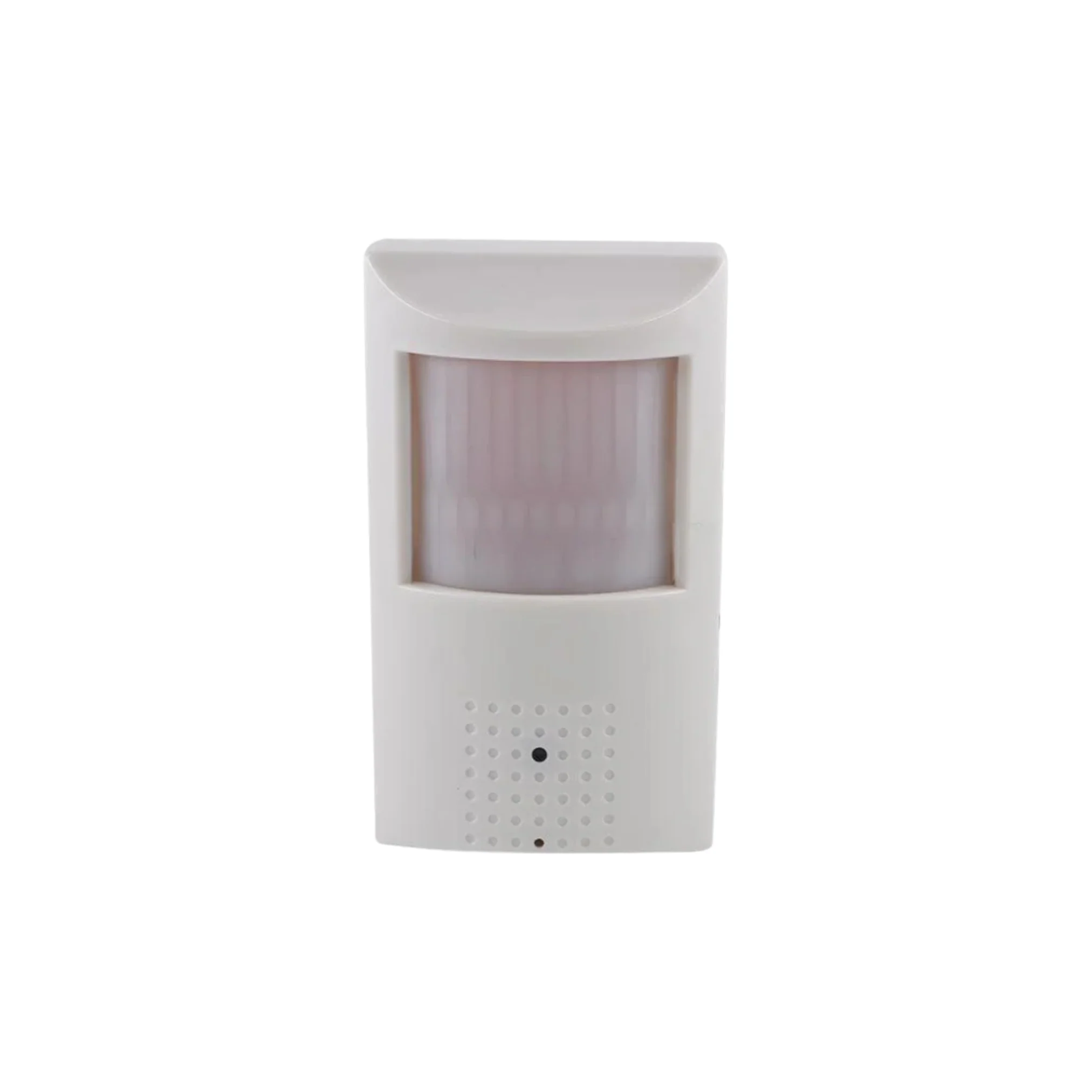

High-definition covert surveillance in a compact form. The Securi-Prod 1080P covert camera features a 3.7 mm pinhole lens with an integrated PIR motion-detector and selectable 4-in-1 video output (AHD, TVI, CVI & CVBS). Ideal for indoor covert or semi-covert security applications, it provides full HD footage while blending into discreet mounting locations.

Why this camera stands out

• Selectable 4-in-1 video modes: AHD, TVI, CVI or CVBS compatibility allows seamless integration into most HD-analogue CCTV systems.
• 3.7 mm pinhole lens: Offers a wide-angle view while maintaining a compact, unobtrusive profile.
• 1080P resolution: Full HD output for clear images and meaningful detail.
• Working PIR sensor: Built-in passive infrared motion detection helps trigger recording, alert systems or conserve storage.
• Tamper and NO/NC contact: Gives your system an alarm-linked feature for tampering detection.

Key specifications

• Image sensor: 1/3″ IMX322 CMOS sensor
• Minimum illumination: ± 0.1 Lux @ F1.2
• Lens: Fixed 3.7 mm pinhole lens
• Video output: AHD / CVI / TVI / CVBS selectable
• Operating voltage: 12 V DC (±10%)
• Operating temperature: -10 °C to +50 °C
• Dimensions: 90 mm (L) × 60 mm (W) × 50 mm (H)
• Warranty: 12-month manufacturer limited warranty

Typical applications

• Covert indoor surveillance in retail, offices or private spaces
• Hidden or discrete camera installations where minimal profile is needed
• Supplementing HD-analogue CCTV systems with a low-footprint camera

Installation instructions

• Confirm power supply is stable 12 V DC with proper current rating and wiring.
• Mount the camera where the 3.7 mm pinhole lens has line of sight to your desired field of view and the PIR sensor can detect motion.
• Ensure the recorder or DVR is set to the correct video format matching your system (AHD/TVI/CVI/CVBS).

What’s in the box

• 1 × Securi-Prod 1080P Camera with Working PIR — 3.7 mm lens (4-in-1)
