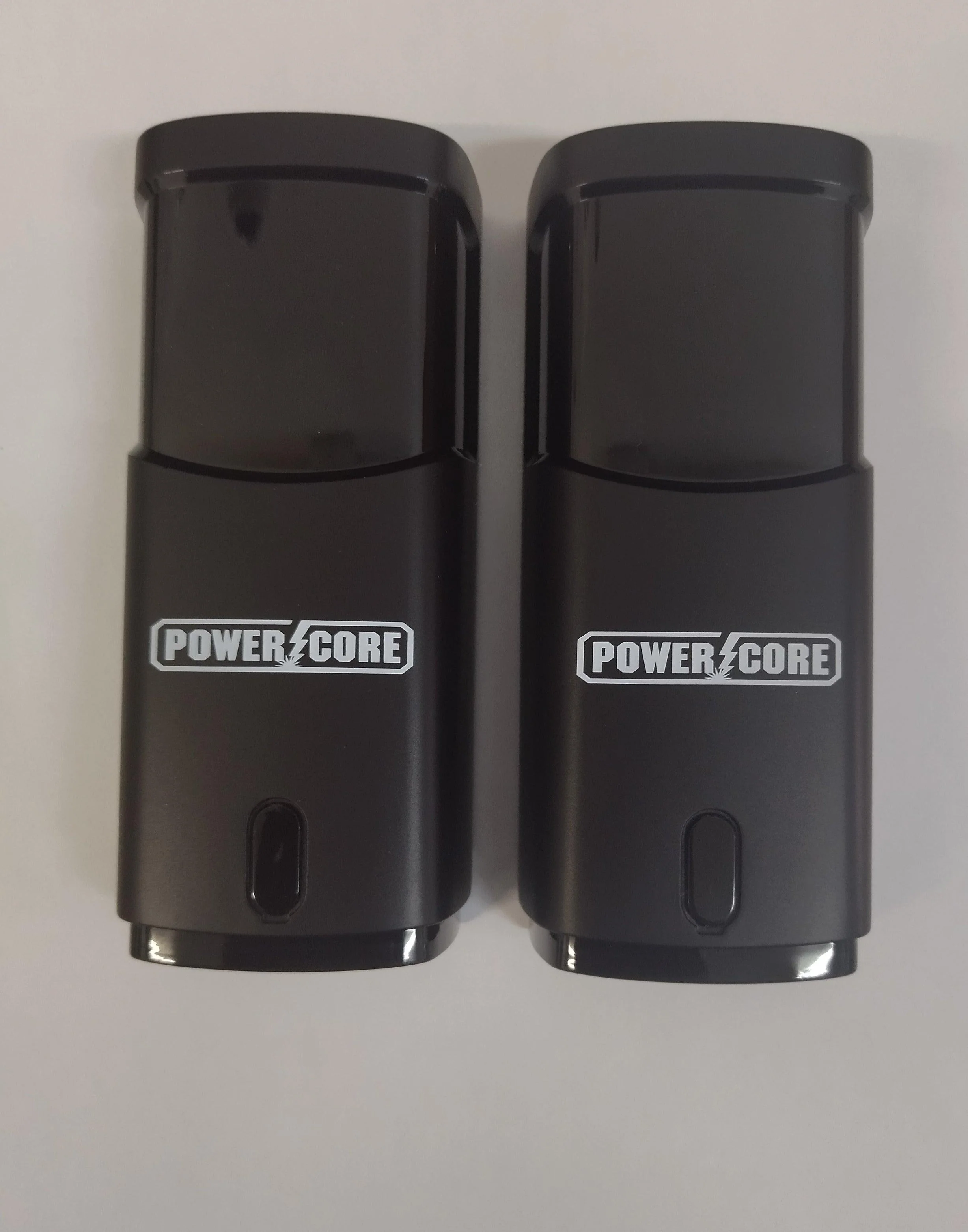

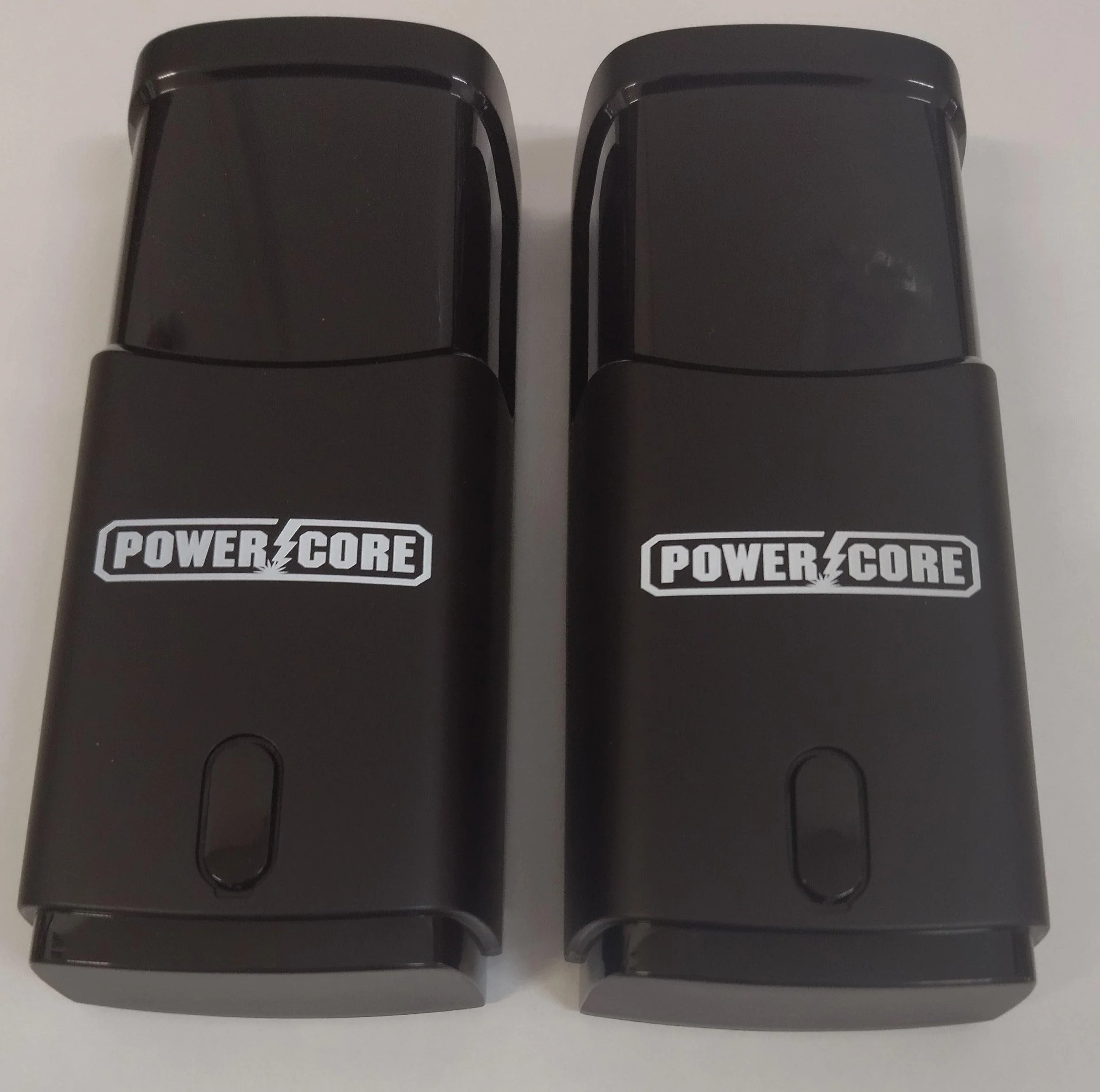

Powercore Infrared Gate Beam

The infrared gate beam sensor provides an invisible infrared beam or automation applications such as sliding and swing gates as well as garage doors and security applications such as perimeter beams either indoors or outdoors. When the battery power is low, A red LED of the transmitter will flash and buzzer of the receiver will beep every one second to remind users to replace the battery in time.



Specifications :

Receiver :

-Power Source : 12 -  24V AC/DC

-Detecting Distance : 15m/30m Optional

-Alarm Time : 0-15 Seconds Adjustable

-Alarm Output : Relay Output NC/NO

-Contact Capacity : 30V DC/3A Max / 250V AC/3A Max

Product Size : 132 x 57 x 35mm



Transmitter :

-Power Source : 3V (2 x AA Alkaline Batteries)

-Working Current : <60uA

-Wavelength : 940mm

-Modulation Frequency : Pulse

Product Size : 132 x 57 x 35mm



AA Batteries are not included
