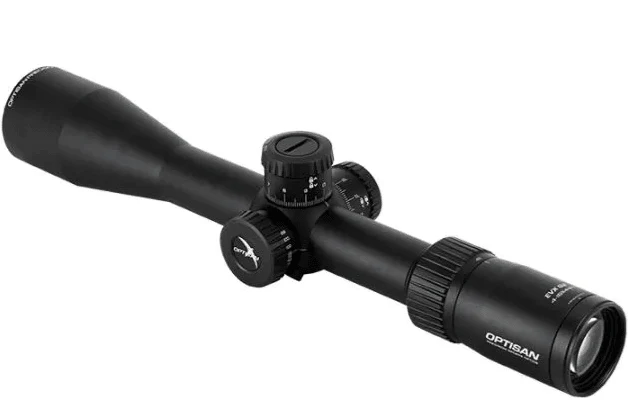

OPTISAN 04006 EVX G2 4-16X44F1

The new EVX Gen II model builds upon the reliable and consistent reputation of our EVX line, which has been serving for over 15 years.

It has been carefully designed to provide sub-MOA accuracy for precision shooting and successfully tested in the field to withstand muzzle velocities of up to 6000j after the barrel. With a Japanese optical system, this rifle scope offers outstanding high-resolution imaging at high magnification levels, while also ensuring a comfortable eye box for shooters.

Optisan 04006 EVX G2 4-16X44F1 - Developed in collaboration with top shooters, Optisan co-creates shooting systems that can endure the rigors of the field and excel in competitive settings. Our extensive testing and constant improvements have gained the approval of European champion shooters.

Before becoming a part of your shooting system, each of the 90-150 components that make up your optic are subject to over 200 quality control points, all performed in-house with meticulous attention to detail.

Stainless steel tactical turret



The standout characteristic of the EVX scope is its stainless steel turret, which emits a distinct and audible clicking noise, delivering clear and satisfying feedback to shooters.

The turret can be secured in place by pushing or pulling it, and resetting the zero is as effortless as turning the removable coin cap found on the top of the turret. For those who want to personalize their hold-over markings, a blank turret is included with the scope.

Additionally, all EVX scopes now come in either MIL/MIL (10 MIL per turn) or MOA/MOA (20 MOA per turn) configurations, matching the turret and reticle design. Furthermore, the scope boasts a revamped mil-hash reticle that enables precise long-range holdover aiming.

OPTICAL DATA

• Magnification (High) 16X 5%
• Magnification (Low) 4X 5%
• Objective Diameter (mm) 44mm
• Outer dia. Objective (mm) 52mm
• FOV (min.mag(ft/100yds) 27.2
• FOV (max.mag(ft/100yds) 6.5
• Eye relief (in) 3.8” – 3.5”
• Exit Pupil (Max mag. (mm) 2.75mm
• Exit Pupil (min. mag. (mm) 11mm
• Diopter Range (dpt) +/- 2.0
• Parallax Adjustment 10yds – infinity (100 yds pa free)
• Coating Fully multi-coated

MECHANICAL DATA

• Tube Construction One-piece tube, aircraft aluminum
• Elevation Adjustment (value per click) 1/4 moa
• Windage Adjustment (value per click) 1/4 moa
• Turret Style (Elevation) Lockable Target Turret
• Turret Style (Windage) Lockable Target Turret
• Travel Per Rotation 20 moa
• Elevation adj. range >= 70 moa
• Windage adj. range >= 48 moa
• Eye Piece Diameter (in) 1.73”
• Eye Piece Diameter (mm) 44mm
• Eye Piece Length (in) 2.15”
• Eye Piece Length (mm) 51.2mm
• Mounting Length rear (mm) 56.5mm
• Mounting Length front (mm) 58.5mm
• Tube Dia. (mm) 30mm
• Length (in) 13.81”
• Length (mm) 351mm
• Weight (g) 748g
• Weight (oz) 26.38oz
• Surface Finish Matte Black

ENVIRONMENT DATA

• Functional temperature -20 ~ 50 degree celsius
• Storage temperature -20 ~ 50 degree celsius
• Submersion tightness JIS 7

RETICLE DATA

• Reticle F1MOA16
• Calibrated Ranging Power Not applicable
• Focal plane FFP
• Illumination Non-illuminated
