OLARM CP304 SECURITY COMMUNICATOR 4G/WIFE DUAL SIM
Olarm CP304 (MAX) Security Communicator – 4G/Wi‑Fi, Dual‑SIM
The Olarm CP304 (MAX) is a multi-path security communicator that smart‑enables your existing alarm and electric‑fence systems. With dual‑SIM 4G (Vodacom & MTN) and Wi‑Fi connectivity, it keeps you informed and in control—whether you're at home, abroad, or offline.
Key Features & Specifications
Always-On Connectivity: Dual‑SIM 4G/2G + Wi‑Fi ensures continuous, redundant signals for critical alertsÂ

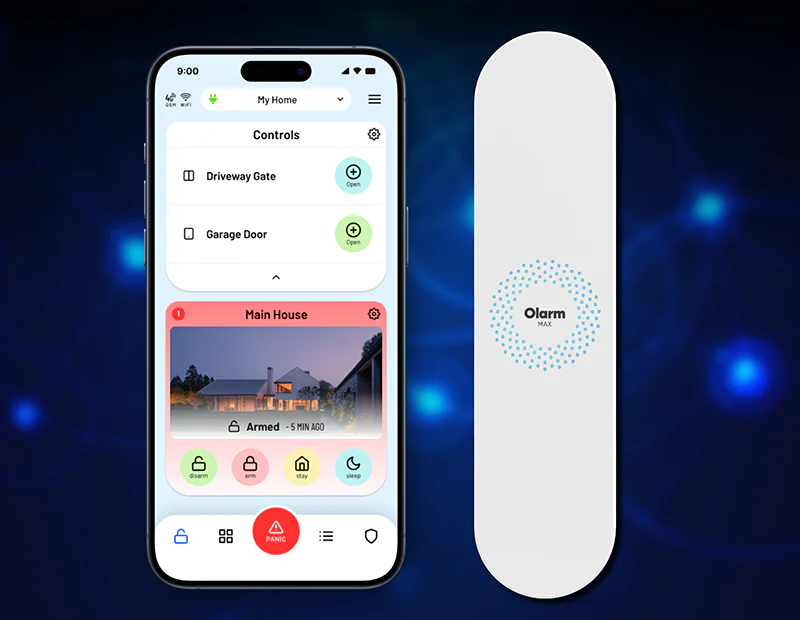

App-Controlled: Use the Olarm App to remotely monitor or control gates, alarms, fences, garage doors—and receive real-time status updatesÂ
Plug & Play Setup: Zero‑configuration install—auto-detects most alarm panels and electric fences (e.g., Paradox, Texecom, DSC, Nemtek, JVA)Â
Tamper & Power Alerts: Built-in optical tamper sensor and power-cut detection send immediate notificationsÂ

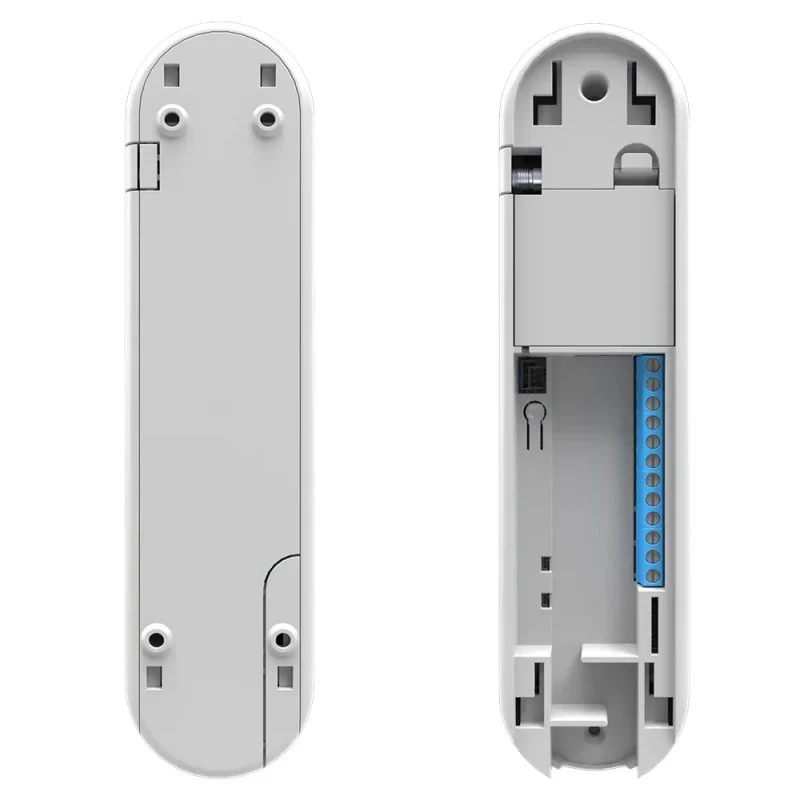

Rugged & Compact: 200 Ă— 50 Ă— 20 mm ABS enclosure; internal antennas with optional SMA external antenna supportÂ
Built-In Super-Capacitor: Keeps system live for up to 4 minutes during mains failureÂ
Secure Communication: Encrypted TLS 1.2 and AES-128; supports Contact ID, SIA DC09 signallingÂ
OTA Updates: Supports Over-The-Air firmware upgrades—no technician visits needed
Specifications at a Glance
| Feature | Detail |
|---|---|
| Dual‑SIM 4G/2G + Wi‑Fi | Vodacom & MTN, IEEE 802.11b/g/n |
| Connectivity Antennas | Internal (optional external via SMA) |
| Power Supply | 7–24 V DC (100 mA idle / 250 mA max) |
| Internal Battery/Capacitor | 3.7 V super‑capacitor (4 min backup) |
| Tamper Detection | Optical sensor + break-away wall mount tab |
| Enclosure & Size | ABS, 200 × 50 × 20 mm, 111 g |
| Operating Conditions | –15 °C to +60 °C, 0–90 % RH |
| Certifications | Contact ID, SIA, ETSI, IEC safety & EMC |
What’s in the Box
1 Ă— Olarm MAX (CP304) Communicator
1 Ă— Tamper-resistant wall mount
Mounting hardware (screws, anchors)
1.5 m peripheral Molex cable
Quick‑Start Guide
