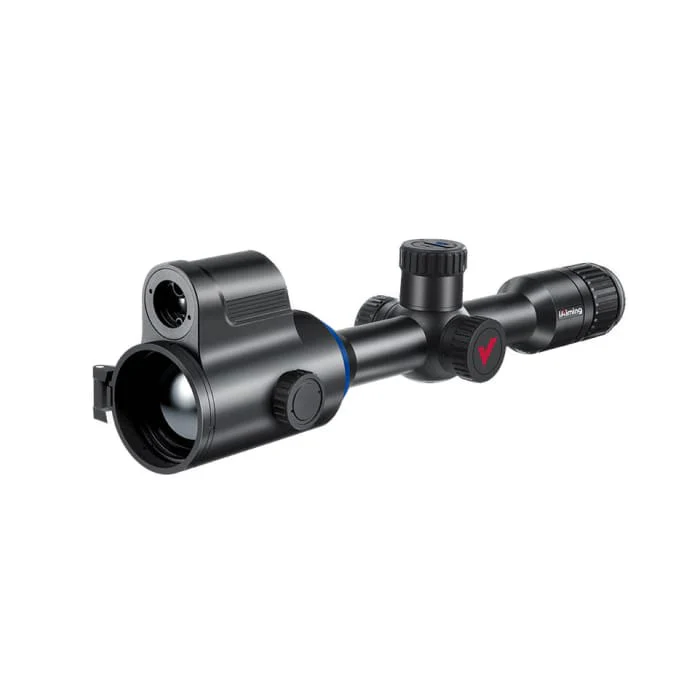

The iA-612 LRF Thermal Rifle Scope is a high-performance thermal imaging optic designed for precision detection and observation in low-light and no-light environments. Featuring a powerful 640×512 VOx uncooled thermal sensor with a 12μm pixel pitch and ≤30mK NETD sensitivity, this scope delivers exceptional thermal detail and target recognition even in challenging weather conditions.

Equipped with a 50mm objective lens and advanced image processing, the iA-612 LRF provides a detection distance of up to 2600 meters for human-sized targets. The integrated laser rangefinder allows accurate distance measurement up to 1000 meters, making this optic ideal for precision shooting and long-range observation.

Key Features

• High-Resolution Thermal Sensor – 640×512 VOx uncooled sensor with 12μm pixel pitch
• Excellent Thermal Sensitivity – ≤30mK NETD for clear thermal imaging
• 50Hz Frame Rate – Smooth image rendering and target tracking
• Laser Rangefinder – Accurate distance measurement up to 1000m
• Detection Range – Up to 2600m for human-sized targets
• Digital Zoom – Continuous zoom from 2.8× to 22.4×
• AMOLED Display – 1024×768 resolution display for crisp image clarity
• Multiple Color Palettes – White Hot, Black Hot, Ironbow, Glowbow, Sepia, Red Hot, and Green Hot
• Integrated Video Recorder – Record video and images with built-in 32GB storage
• WiFi Connectivity – Wireless connection for streaming and device integration
• Laser Pointer – 5mW pointer for target indication
• Durable Construction – Aluminum alloy body with IP66 protection rating

Technical Specifications

• Model: iA-612 LRF
• Sensor Type: VOx Uncooled
• Sensor Resolution: 640 × 512
• Pixel Pitch: 12 μm
• NETD: ≤30 mK
• Frame Rate: 50 Hz
• Objective Lens: 50 mm
• Field of View: 8.8° × 7.0°
• Digital Zoom: 2.8× – 22.4×
• Eye Relief: 48 mm
• Diopter Adjustment: ±4
• Display Type: AMOLED
• Display Resolution: 1024 × 768
• Detection Distance (Human 1.8m): 2600 m
• Reticle Types: 10
• Adjustment Accuracy: 0.15 mil
• Adjustment Range: 73.2 × 58.6 mil
• Video Format: MP4 / JPG
• Internal Storage: 32 GB
• WiFi: 2.4 GHz (802.11 b/g/n)
• Laser Wavelength: 905 nm
• Rangefinder Accuracy: ±1 m
• Rangefinder Distance: Up to 1000 m
• Battery System: Built-in 18650 ×2 + External 18500 ×1
• Battery Capacity: 6400 mAh (internal) + 2000 mAh (external)
• Operating Time: ≥12 hours
• External Power: 5 V
• Charging Time: Approx. 5 hours
• Mount Type: 30 mm scope rings
• Maximum Recoil Resistance: 6000 J
• Shock Resistance (Shotguns): 900 G
• Body Material: Aluminum alloy
• Weight: 1050 g
• Length: 365 mm
• Protection Rating: IP66
• Operating Temperature: -25°C to +50°C
• Storage Temperature: -50°C to +60°C

With advanced thermal imaging technology, integrated rangefinding, and onboard recording capabilities, the iA-612 LRF thermal scope delivers a powerful combination of detection performance, durability, and versatility for professional users and demanding outdoor environments.
