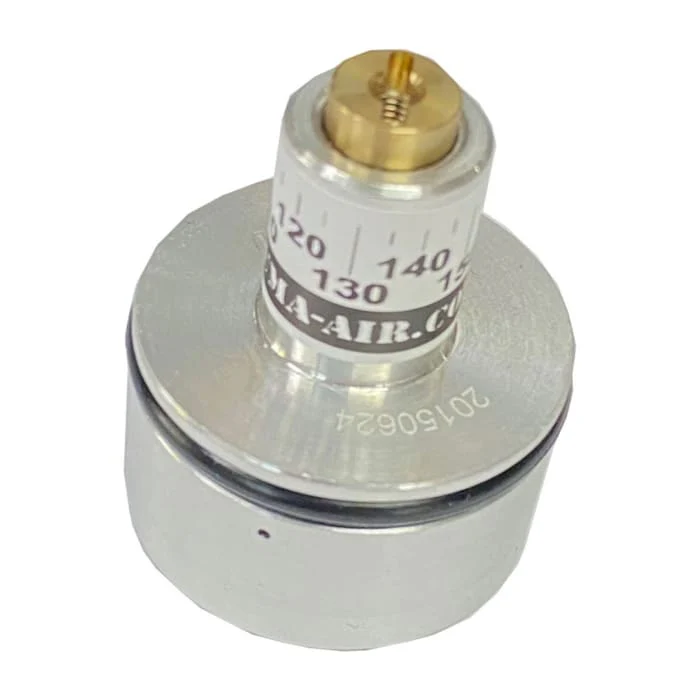

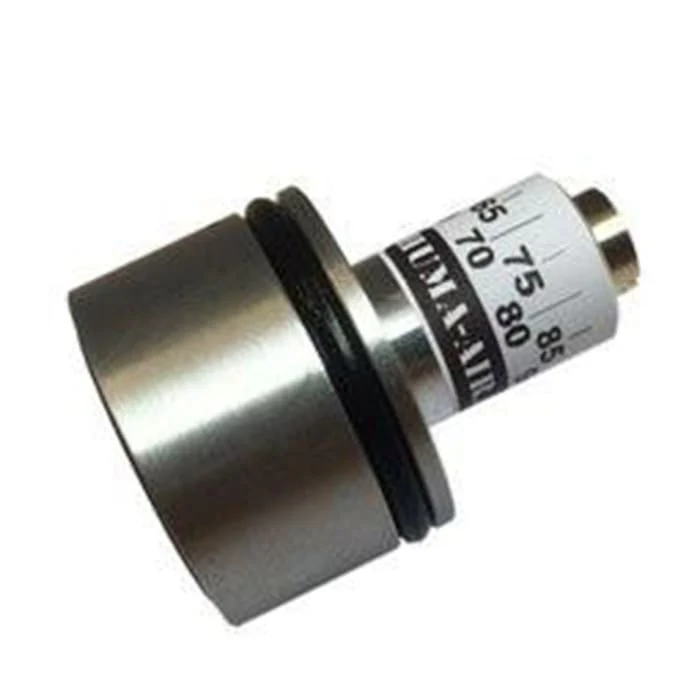

Huma-Air Tuning Regulator for Weihrauch HW100

This Huma-Air pressure regulator is engineered for the Weihrauch HW100 air rifle and installs directly into the pressure tube. Compatible with all HW1xx models featuring front fill or quick-fill units on the cylinder's front side.

The regulator vents to atmosphere without modifications to your pressure tube—no drilling required, eliminating power creep issues.

Installation Instructions

1. Depressurize the rifle completely
2. Unscrew the cylinder endcap from the action side
3. Remove the large o-ring from the endcap
4. Insert the Huma-Air regulator into the pressure tube with the pressure label facing the barrel
5. Reinstall the endcap

Bridge the factory regulator by removing its steel ball. Once removed, the original regulator becomes inactive and the Huma-Air unit controls pressure adjustment.

Benefits of the Huma-Air HW100 Regulator

• Improved accuracy through elimination of pellet velocity fluctuations
• Consistent pellet speed across the entire working pressure range
• Enhanced shot count with immediate flat shot strings
• Temperature-stable performance in varying conditions

Package Includes

• Regulator preset to your specifications
• Pressure scale in Bar for fine-tuning and adjustment
• "Huma-Air Regulated" breech sticker
• PDF fitting instructions download link

Recommended Pressure Settings

• Low pressure range: 60–110 bar for 16 Joule / 12 ft/lbs models
• High pressure range: 100–170 bar for FAC rifles in .177, .22, and .25 calibers

Huma-Air Quality Assurance

All Huma-Air regulators are CNC machined from aircraft-grade aluminum and bronze. Each unit undergoes individual assembly, computerized simulation testing, and pressure calibration. Premium Belleville springs ensure less than 1% variance in repeat cycle accuracy.

Warranty: 2-year coverage (excludes shipping and wear items such as o-rings and valve discs).

*NO RETURNS ON HUMA REGULATORS*
