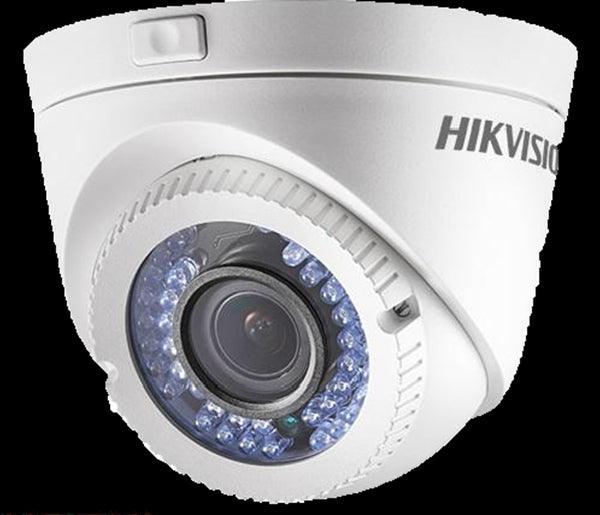

HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM
HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM
OVERALL FEATURES:
- 2 MP varifocal PoC turret camera
- 2.8 mm to 12 mm varifocal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Transmits both HD video and power over the same coaxial cable
SPECIFICATIONS:
- Camera
- Image Sensor2 MP progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type Varifocal lens, manual adjustment, 2.8 mm to 12 mm
- Focal Length & FOV Horizontal FOV 105.2° to 32.8°
- Lens MountΦ14
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 40 m
- Image
- Image Settings AGC; Brightness; Sharpness; Mirror
-
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night Mode Auto/Color/BW (Black and White)
- Image Enhancement BLC;DWDR
- Noise Reduction2D DNR
- Interface
- Video Output1 HD analog output
- General
- Power12 VDC ±15%/PoC.at, max. 6.5 W
- Material Main body: Metal, Enclosure: Plastic
- Dimension - Ø 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
- Weight - Approx. 710 g (1.57 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
- Language - English
- Approval
- ProtectionIP67
HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM
OVERALL FEATURES:
- 2 MP varifocal PoC turret camera
- 2.8 mm to 12 mm varifocal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Transmits both HD video and power over the same coaxial cable
SPECIFICATIONS:
- Camera
- Image Sensor2 MP progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type Varifocal lens, manual adjustment, 2.8 mm to 12 mm
- Focal Length & FOV Horizontal FOV 105.2° to 32.8°
- Lens MountΦ14
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 40 m
- Image
- Image Settings AGC; Brightness; Sharpness; Mirror
-
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night Mode Auto/Color/BW (Black and White)
- Image Enhancement BLC;DWDR
- Noise Reduction2D DNR
- Interface
- Video Output1 HD analog output
- General
- Power12 VDC ±15%/PoC.at, max. 6.5 W
- Material Main body: Metal, Enclosure: Plastic
- Dimension - Ø 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
- Weight - Approx. 710 g (1.57 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
- Language - English
- Approval
- ProtectionIP67
$54.45
HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM—
$54.45
Description
HIKVISON DOME DS-2CE56DOT-VFIR3F 2.8-12MM
OVERALL FEATURES:
- 2 MP varifocal PoC turret camera
- 2.8 mm to 12 mm varifocal lens
- Up to 40 m IR distance for bright night imaging
- Water and dust resistant (IP67)
- Transmits both HD video and power over the same coaxial cable
SPECIFICATIONS:
- Camera
- Image Sensor2 MP progressive scan CMOS
- Max. Resolution1920 (H) × 1080 (V)
- Min. Illumination0.01 Lux@(F1.4, AGC ON), 0 Lux with IR
- Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
- Day & Night IR Cut Filter
- Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
- Signal System PAL/NTSC
- Lens
- Lens Type Varifocal lens, manual adjustment, 2.8 mm to 12 mm
- Focal Length & FOV Horizontal FOV 105.2° to 32.8°
- Lens MountΦ14
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 40 m
- Image
- Image Settings AGC; Brightness; Sharpness; Mirror
-
Frame Rate
PAL: 1080p@25fps
NTSC: 1080p@30fps
- Day/Night Mode Auto/Color/BW (Black and White)
- Image Enhancement BLC;DWDR
- Noise Reduction2D DNR
- Interface
- Video Output1 HD analog output
- General
- Power12 VDC ±15%/PoC.at, max. 6.5 W
- Material Main body: Metal, Enclosure: Plastic
- Dimension - Ø 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
- Weight - Approx. 710 g (1.57 lb.)
- Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
- Language - English
- Approval
- ProtectionIP67
