ISD-SMG318LT-D
Temperature Measurement Walkthrough Metal Detector

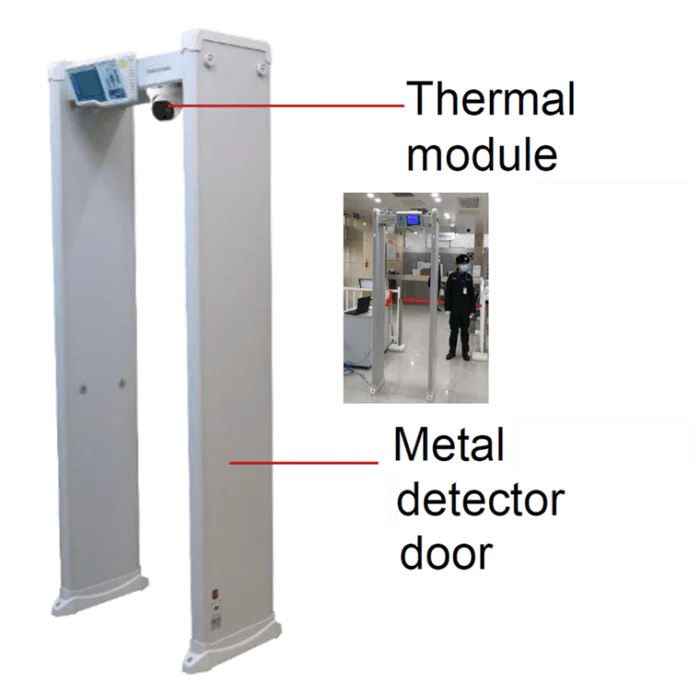

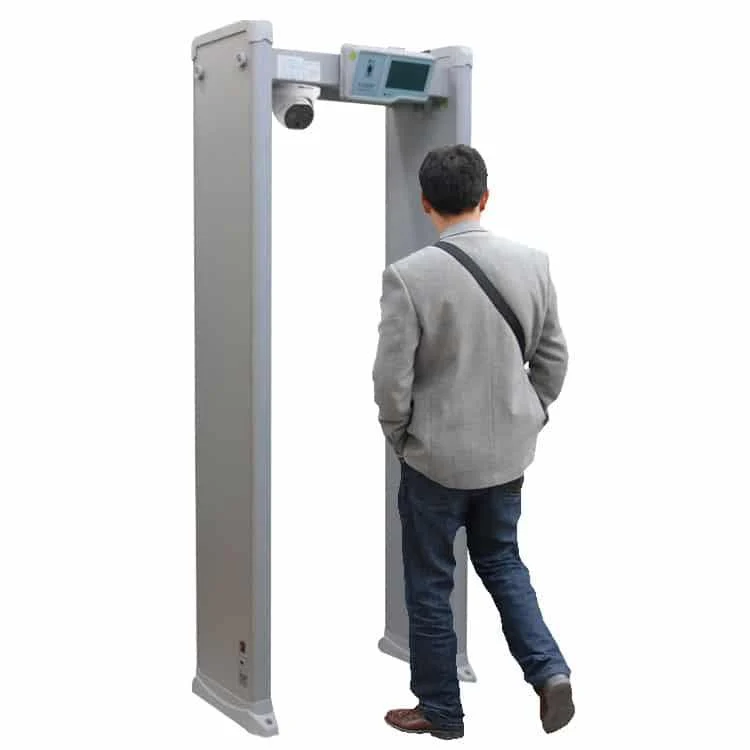

Hikvision’s ISD-SMG318LT-F Temperature Measurementm Walkthrough Metal Detector uses thermographic technology for contactless temperature screening. The camera’s detection function accurately targets the skin surface. The detector also supports metal detection.

The detector also supports network transmission, which makes it able to report passenger flow statistics/metal detection dataas well as configure parameters remotely. It is suitable for safety inspection of dangerous goods and is widely used in public facilities, sensitive areas, etc. It is recommended to be used indoors in a stable, windless environment.

General :

 Network Transmission Reports Passenger Flow Statistics and Metal Detection Data  Configure Remotely via Web Client
 Counts Entry/Exits for limit Flow Alarm/Statistic Report
 Mandatory Default Password Changing Strategy
 Non-Contact Face Temperature Measurement
 Accurate Personnel Matching
 Temperature Accuracy: ±0.5° C @ 0.5 m to 1.5 m, target height: 1.45 m to 1.85 m
 Adjustable Temperature Threshold Triggers Audible Strobe Light
 Displays Walkthrough Count, Metal Alarm Times, Real Time Temperature, People in Abnormal Temperature
 Metal Detection
 Alarm Indicates up to 18 Metal Positions on Body
 Easy Transmission and Installation

Smart Functions :

 Temperature Exception Detection
 Audible Alarm Linkage
 White Strobe Light Alarm Linkage
 Detector Configuration via Web Client

Thermal Imaging Functions :

 Uncooled Sensor, Resolution: 160 x 120
 AGC 4.0, DDE, and 3DNR
 Dual-Light Fusion Image
 Visible Light/Thermal Imaging Frame Overlay
 15 Pseudo Colors: White, Black , Red, etc.

Visible Light Functions :

 4 MP, 1/2.7" CMOS, 2688 x 1520 @ 25 fps
 Low Bit Rate, Low Latency, and ROI
 Independent Settings for Day or Night
 Dual-Channel, Single IP
 Dual-Streaming
 PoE Power Supply
 IP66 Protection Level
 Operating Temperature: 10° to 35° C, <95% RH

RH Interfaces :

 10M/100M Self-Adapting Network Interface
 MicroSD/SDHC/SDXC Card (128 GB/256 GB) Slot
 1-ch Alarm Input/Output
 1-ch Audio Input/Output
 1-ch 12 VDC Power Input


Security :

 Verification Such as HTTPS Supports License Creating
 Three User Levels, IP Address Filtering, User andPassword Authentication

Metal Detection Features :

 25 mm Metal Detectable in Detector Middle. Belt Buckles etc. Can Be Excluded. Detects Copper, Aluminum, Zinc (over 150 g), Knives, Guns
 Multiple Detectors Can Work Abreast at Same Time
 Alarm: Indicates Metal Position on Body (Up to 18 Areas)
 100 Frequencies Can Be Set w/Different Ring Tones
 Sensitivity Settings: 255 Levels  Display Number of Walkthroughs and People in Alarm
 LED on Entry Side of Plank Indicates Position of Prohibited Goods
 7-inch LCD Touch Screen for Easy Operation
 Store Sensitivity Parameters for Different Scenes
 Material: PVC Shell



Please Note : The Dome Camera is only for illustration purposes and not included

To view product specifications please click the link :
https://us.hikvision.com/sites/default/files/data_sheet/isd-smg318lt-d_metal_detector_031021na.pdf
