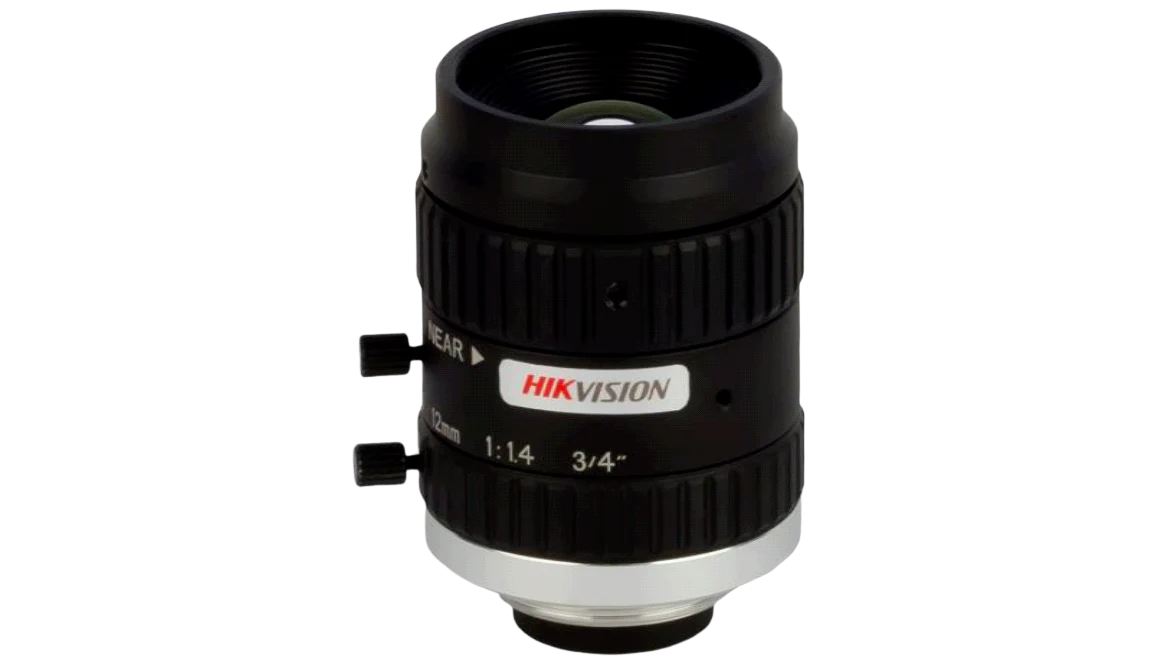

Precision optics for high-resolution CCTV systems. The Hikvision MF1214M-5MP lens is designed for 5-megapixel cameras, offering a 12 mm fixed focal length, manual-iris control, and a C-mount design. Ideal for professional surveillance setups in South Africa, it delivers consistent image quality, sharp focus, and reliable performance in both indoor and outdoor environments.

Enhanced clarity and dependable focus

Built for precision, this fixed-focal lens ensures crisp detail and minimal distortion. With manual iris adjustment and 5 MP compatibility, it provides accurate control over exposure and image quality — making it perfect for installations that demand professional-grade performance and clear visibility.

Key features & benefits

• 5 MP resolution support: Optimised for high-definition cameras for detailed, sharp imagery.
• 12 mm fixed focal length: Provides stable framing and consistent focus across your surveillance area.
• Manual iris control: Allows fine-tuned adjustment for varying lighting conditions.
• C-mount compatibility: Easily integrates with most professional CCTV cameras.
• Durable and compact: Robust build with a lightweight body, designed for reliable long-term operation.

Technical specifications

• Model: MF1214M-5MP
• Focal length: 12 mm
• Resolution: Up to 5 MP
• Maximum image format: Ø12.1 mm (3/4″)
• Aperture / F-number: F1.4-C
• Mount type: C-mount (flange back length: 17.5 mm)
• Minimum object distance: 0.5 m
• Dimensions: Ø37.2 mm × 45.4 mm
• Weight: Approx. 128 g
• Operating temperature: -20 °C to +60 °C
• Field of view (approx.):
  • Diagonal (3/4″): 56°
  • Horizontal (3/4″): 48.6°
  • Vertical (3/4″): 27.1°

Ideal applications

• Access control areas, corridors, and fixed-position indoor cameras.
• High-resolution CCTV systems requiring reliable fixed views.
• Professional surveillance installations across South Africa.

Installation & setup tips

• Ensure your camera supports C-mount lenses with a 17.5 mm flange back distance for proper focus.
• Adjust focus manually using live video before locking in position.
• Set the iris to match ambient lighting to balance brightness and contrast.
• For outdoor use, use a weather-proof housing and clean the lens regularly for optimal clarity.

Professional clarity starts with quality optics. The Hikvision MF1214M-5MP lens delivers reliability, accuracy, and sharp visual performance — a smart choice for high-resolution surveillance systems throughout South Africa.

Short product blurb (for collection pages): Hikvision MF1214M-5MP — 12 mm fixed-focal manual-iris lens for 5 MP cameras (C-mount). High-precision optics for professional CCTV systems.
