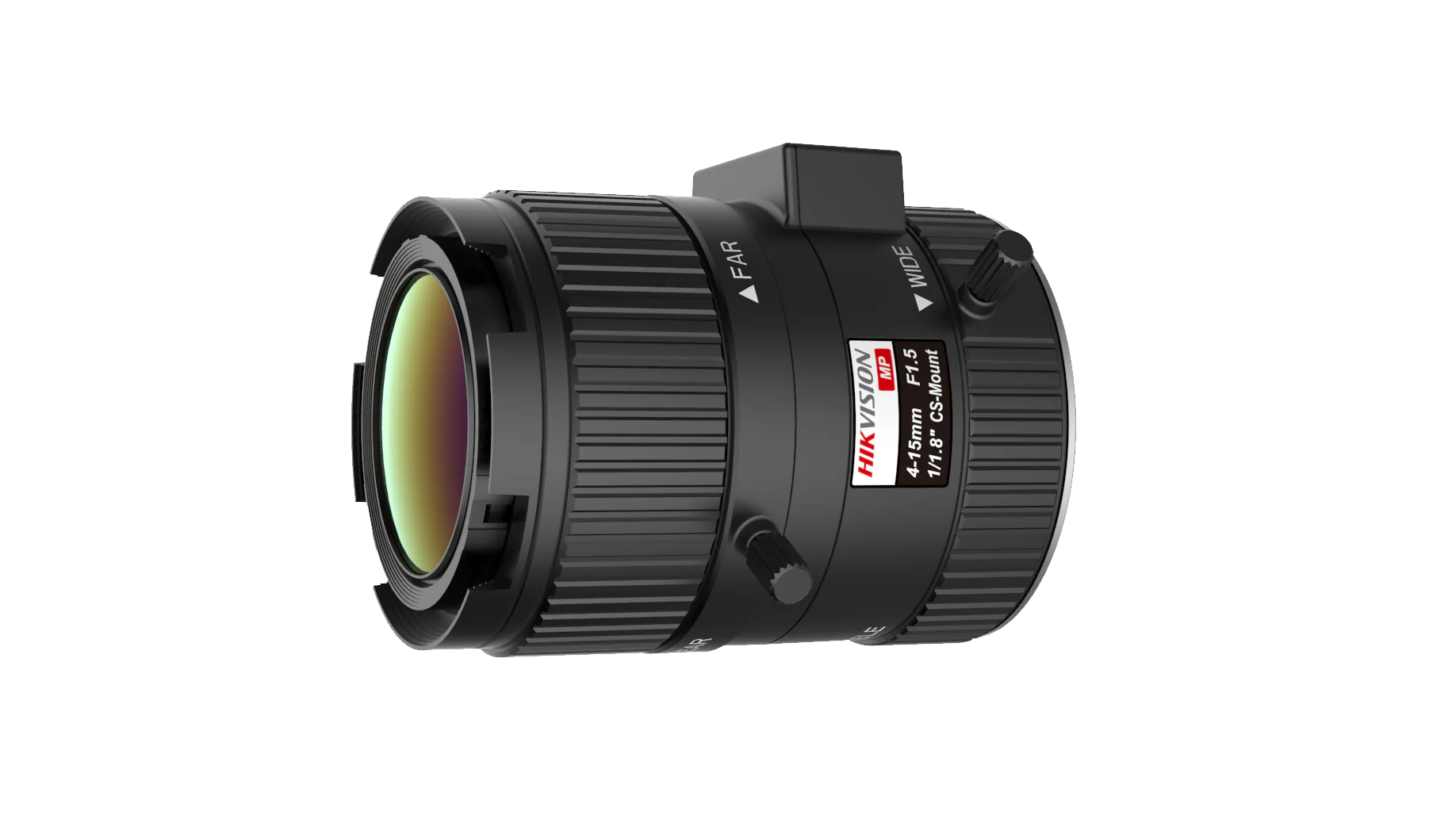

Unlock sharper, more flexible surveillance views with the HV0415D-MP. This varifocal lens from Hikvision gives you the power to fine-tune your field of view — from wide overviews to tighter detail shots — all while delivering 3-megapixel clarity. Designed for professional CCTV installations in South Africa, it pairs with standard CS-mount cameras to upgrade your system’s optical performance.

Benefits that make a difference

When your security setup demands better image detail, control and adaptability, the HV0415D-MP steps up:

• Get the exact framing you need—no more relying on fixed lenses that show too little or too much.
• Maintain consistent exposure and clarity even with changing lighting thanks to the auto-iris design.
• Upgrade your existing camera instead of replacing the whole unit—saving cost and downtime.
• Install with confidence in commercial or residential builds—rugged build specs and broad compatibility from a trusted brand.

Features & Specifications

• Model: HV0415D-MP
• Resolution support: Up to 3 MP
• Focal length: 4–15 mm varifocal
• Aperture / F-number: F1.5-C
• Mount type: CS-mount (12.5 mm flange back length)
• Maximum image format: Ø9 mm (1/1.8″) sensor coverage
• Minimum object distance (M.O.D): 0.1 m
• Field of view (approx): Diagonal: 126.8° – 37.6° (1/1.8″); Horizontal: 101.9° – 31.3° (1/1.8″)
• Dimensions: Φ50.2 mm × 73.8 mm
• Weight: ~102.4 g
• Operating temperature: -20 °C to +60 °C
• Zoom & focus: Manual zoom / manual focus with DC auto-iris control

Ideal for

• Retail, offices or property entrances where you need variable coverage—from wide context to tighter face detail.
• Upgrading your existing camera system to high-resolution performance without replacing the full camera unit.
• Installations that face changing lighting conditions and require auto-adjusting optics for reliable footage.
• Any professional CCTV build where optical clarity matters—from small business sites to homes with high security standards.

Installation & Setup Tips

• Check that your camera uses a CS-mount or has the correct adapter for CS-mount lenses.
• Mount the camera, set live view, adjust the 4–15 mm zoom until your desired framing is achieved, then focus manually.
• Ensure the auto-iris control signal is compatible on your camera to make full use of the auto-iris feature.
• Lock set screws after focus/zoom adjustments to prevent drift caused by vibration or handling.
• For outdoor use, fit the lens in a weather-proof housing to protect against dust and moisture—and clean the lens surface with a lint-free cloth only.

Important Notes & Safety

This lens is designed for use with compatible CCTV cameras—installing optics incorrectly may result in vignetting (black corners) or blurred edges. For best performance in South African environments, ensure proper housing, secure mounting and correct calibration. Handle the lens glass surface with care to avoid scratches and damage.

Take control of your surveillance visuals. With the Hikvision HV0415D-MP varifocal lens, you’re fitting optics built for precision, clarity and flexibility—so you get the shot you need, when you need it. Upgrade your system today and trust the results you’ll see.

Short product blurb: Hikvision HV0415D-MP 4–15 mm varifocal lens (3 MP, CS-mount, auto-iris) — optical upgrade for professional CCTV systems.
