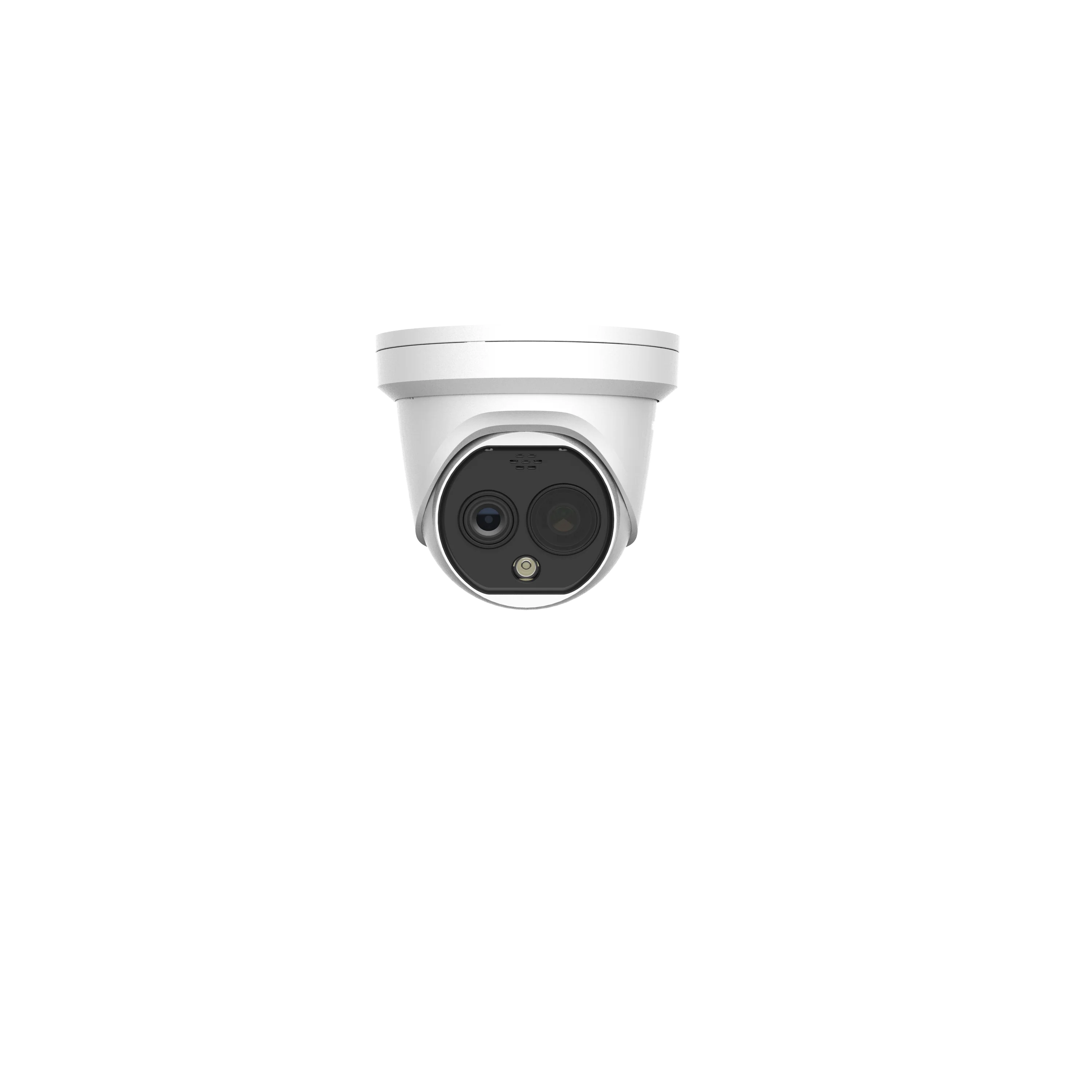

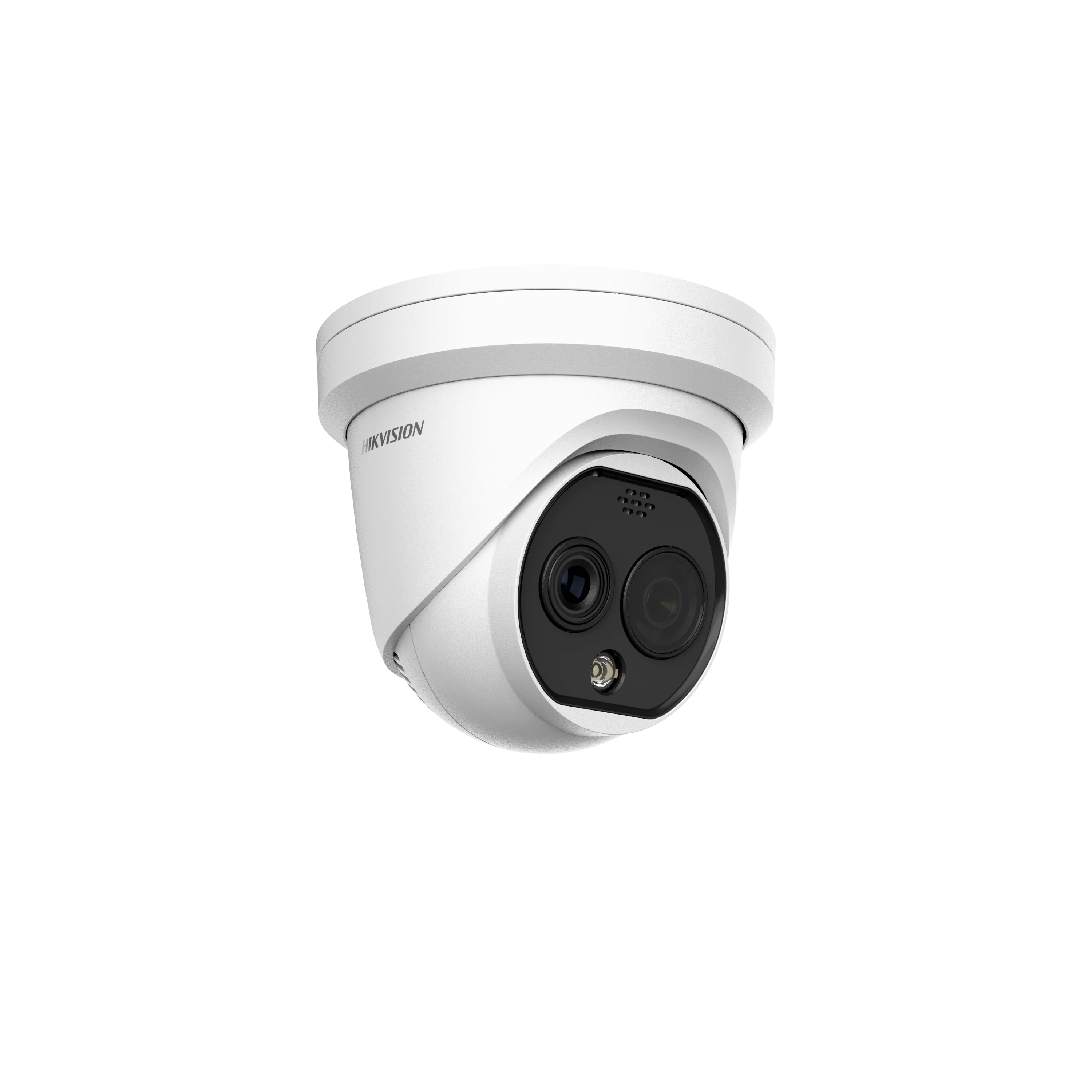

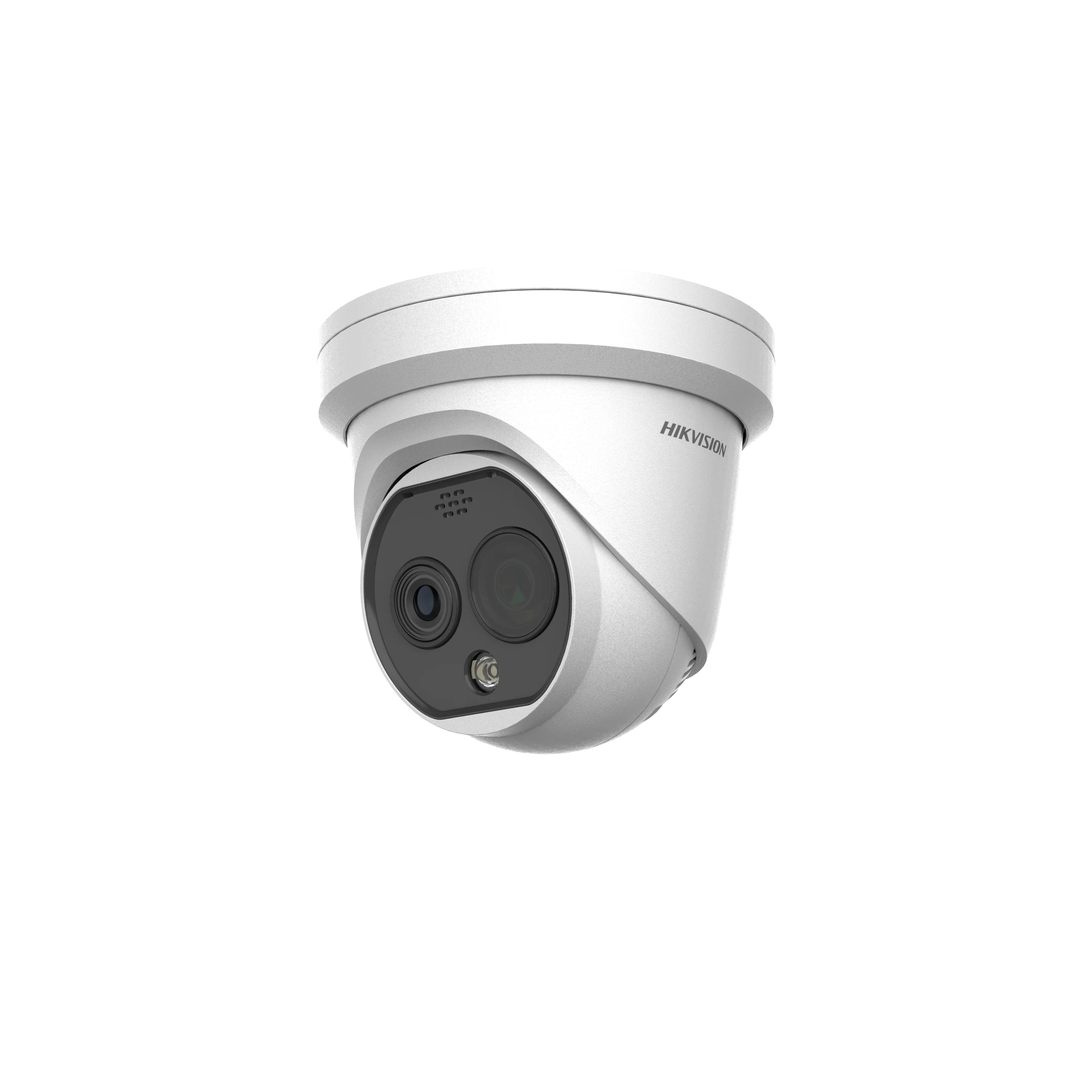

Advanced bi-spectrum surveillance built for high-risk environments. The Hikvision DS-2TD1228T-2/QA(B) integrates both thermal and high-definition optical imaging in one turret-camera housing. Designed for demanding installations such as warehouses, manufacturing sites and perimeter areas in South Africa, it offers thermal detection of heat signatures alongside a 4 MP optical sensor for visual verification — delivering comprehensive coverage regardless of lighting or visibility challenges.

Why this camera makes a difference

Conventional visible-light cameras struggle when lighting fails, smoke develops or visibility drops. The DS-2TD1228T-2/QA(B) solves this by pairing a thermal module — capable of detecting heat events and temperature anomalies — with an optical channel for visual clarity and identification. With built-in analytics and high-contrast performance, it offers smarter alerts and deeper insight for your security setup.

Key features & benefits

• Bi-spectrum design: Thermal sensor (256×192 VOx) and optical sensor (4 MP) combined in one unit.
• Thermal detection: Thermal resolution 256×192, pixel pitch 12 µm, NETD ≤ 40 mK (@25 °C, F1.0) — ideal for identifying heat signatures and early fire or hotspot conditions.
• Wide thermal field of view: 2.1 mm thermal lens delivering approx. 90° × 65.4° (H × V) for broad-area coverage.
• Optical clarity: 4 MP progressive-scan sensor with a 2.2 mm lens offering a field of view around 117.8° × 70.4° (H × V) — perfect for visual confirmation of events.
• Smart analytics and temperature alarms: Supports human/vehicle classification, line crossing, intrusion detection and temperature-exception alarms covering ranges from –20 °C up to 550 °C with accuracy up to ±2 °C or ±2 %.
• Outdoor-ready design: Rugged IP67-class weather protection (or equivalent outdoor-rating) and operating temperature from –40 °C to +65 °C — built for South African conditions.

Technical specifications

• Model: DS-2TD1228T-2/QA(B)
• Thermal Module:
  • Resolution: 256×192 pixels
  • Pixel pitch: 12 µm
  • Spectral range: 8–14 µm
  • NETD: ≤ 40 mK (@25 °C, F1.0)
  • Focal length: 2.1 mm
  • Field of view: Approx. 90° × 65.4° (H×V)
  • Min focusing distance: 0.1 m
• Optical Module:
  • Sensor: 1/2.7″ Progressive Scan CMOS
  • Resolution: 2688 × 1520 (4 MP)
  • Minimum illumination: 0.0176 Lux @ F2.25 (AGC ON), 0 Lux with IR
  • Focal length: 2.2 mm
  • Field of view: Approx. 117.8° × 70.4° (H×V)
  • Shutter speed: 1 s to 1/100 000 s
  • WDR: 120 dB
• Video/Compression & Smart Features:
  • Bi-spectrum image fusion and picture-in-picture support
  • White-light and audio alarm features included
  • Smart functions: Line crossing, intrusion, region entrance/exit — up to 8 VCA rules
  • Temperature measurement: 10 points, 10 areas and 1 line (21 rules)
  • Measurement range: –20 °C to 550 °C
  • Temperature accuracy: Max ±2 °C or ±2%
• Power & Environmental:
  • Power: 12 V DC ± 25% or PoE (802.3af Class 3)
  • Power consumption: Max approx. 6 W
  • Operating temperature: –40 °C to +65 °C
  • Protection level: IP67 ingress (outdoor-rated)
• Physical:
  • Dimensions: approx. 138.3 mm × 138.3 mm × 123.1 mm
  • Weight: approx. 940 g

Applications

• Perimeter and asset-protection for warehouses, manufacturing yards and logistics centres in South Africa.
• Fire- or hotspot-monitoring areas such as material stores, incineration plants or enclosed workshops.
• Outdoor installations where lighting or visibility is poor and both thermal detection and visual clarity are required.

Installation & setup tips

• Mount the camera on a stable surface with a clear view of the target zone — ensure both thermal and optical channels are unobstructed.
• Use PoE cabling when possible to simplify power and network connectivity.
• Configure your temperature-exception rules, detection zones and analytics in the web interface or via your NVR for tailored alerts.
• Perform periodic lens cleaning and firmware updates to maintain optimal performance, especially in dusty or exposed outdoor areas.

Ready for precision surveillance? The Hikvision DS-2TD1228T-2/QA(B) delivers high-performance dual-spectrum monitoring built for demanding environments. Whether you’re securing a warehouse, estate or industrial site, this turret camera brings advanced thermal and optical capability to your install.

Short product blurb (for collection pages): Hikvision DS-2TD1228T-2/QA(B) — 256×192 thermal + 4 MP optical bi-spectrum turret camera, temperature-exception alarms, IP67 outdoor ready.
