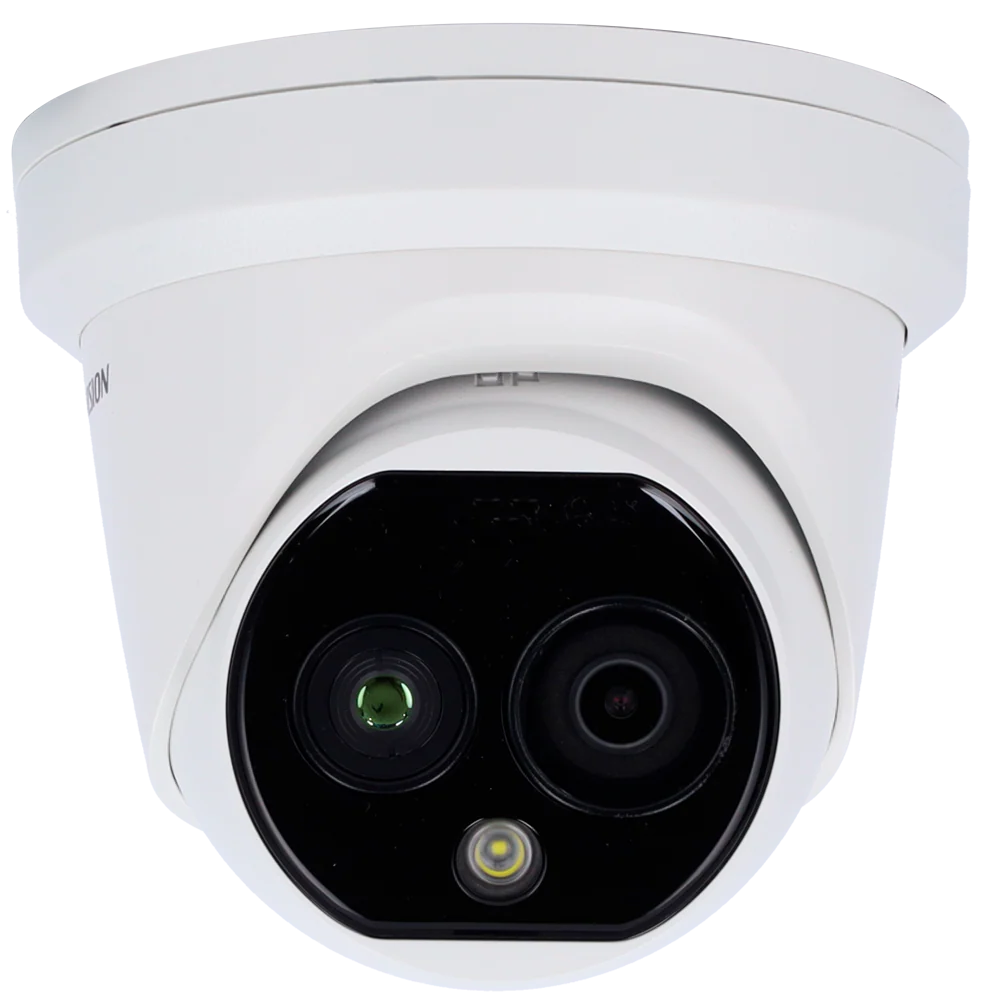

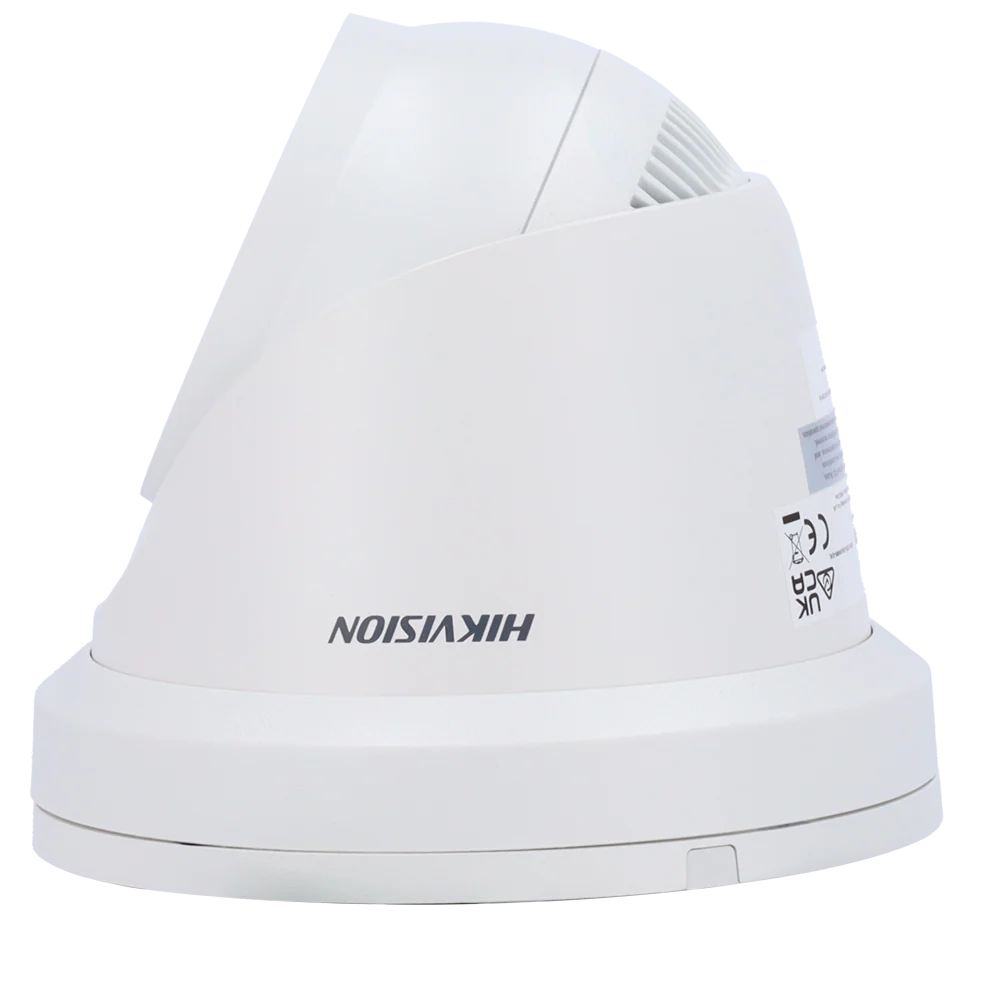

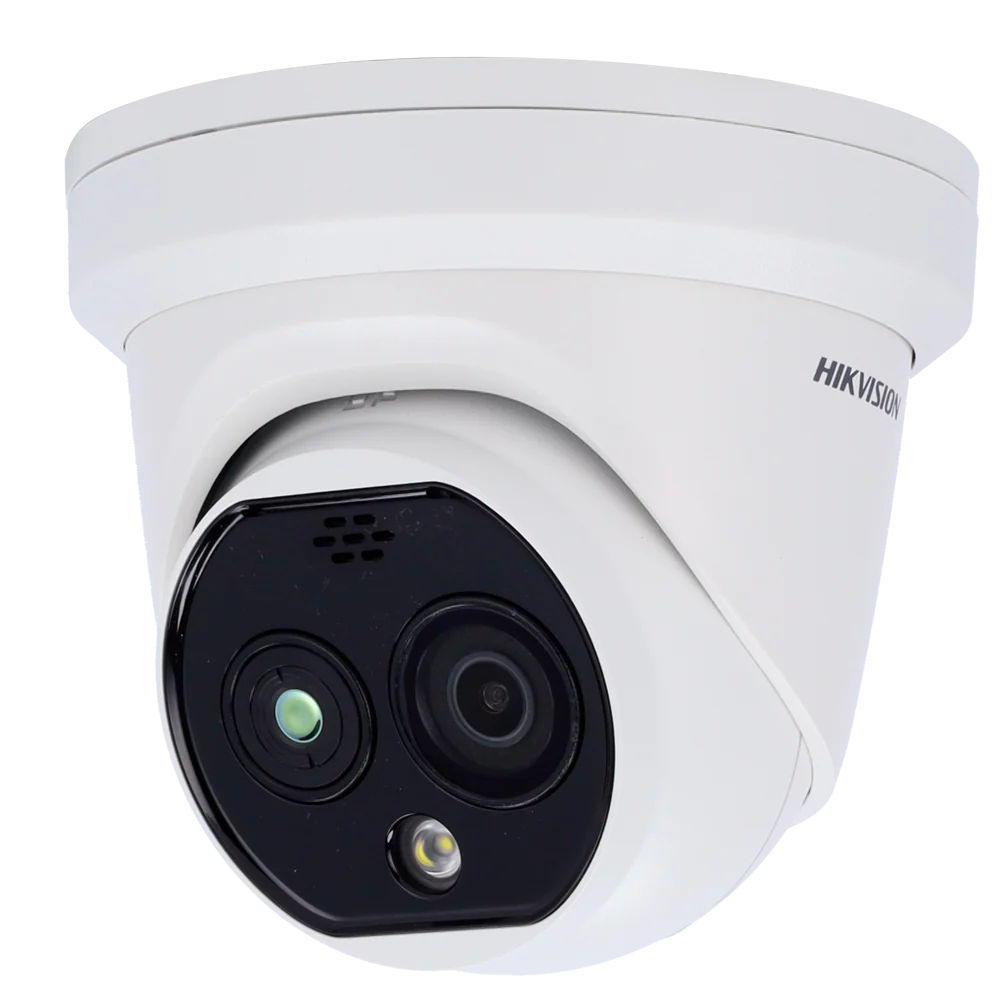

HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA

Ultra-Wide Thermal & Optical Dome for Close-Range Surveillance

The HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA delivers precise thermal and optical monitoring in a compact, wide-angle dome format. Built for environments that require close-range coverage with detailed heat and motion detection, this camera is ideal for entrances, indoor security zones, and small outdoor perimeters across South Africa.

Accurate Dual-Spectrum Detection

Combining thermal imaging with a 4 MP optical channel, this HeatPro dome camera ensures reliable detection and visual confirmation — even in total darkness or challenging lighting. Its 2.1 mm thermal lens provides a wide field of view for close-proximity monitoring, while the smart analytics engine minimises false alarms and supports precise alerts for human or vehicle detection.

• Dual-Spectrum Technology: Merges thermal and optical channels for simultaneous heat and visual monitoring.
• Thermal Module: 256 × 192 VOx uncooled detector, 12 µm pixel pitch, with ≤ 40 mK sensitivity for subtle heat differentiation.
• Thermal Lens: 2.1 mm focal length for ultra-wide detection coverage.
• Optical Module: 4 MP (2688 × 1520) resolution with 2.8 mm optical lens for sharp visuals and wide optical field of view.
• Temperature Measurement: –20 °C to +150 °C range with adjustable temperature alarms for proactive monitoring.
• Smart Detection Functions: Includes human/vehicle classification, line-crossing, intrusion, and region entry/exit alerts.
• Rugged Design: Weather-resistant IP67 housing, perfect for indoor or sheltered outdoor installations.
• Flexible Power & Storage: Supports 12 V DC and PoE (802.3af) with onboard microSD slot up to 256 GB.

Key Specifications

• Thermal Detector: 256 × 192 resolution, 12 µm pixel pitch
• Thermal Lens: 2.1 mm focal length
• Thermal NETD: ≤ 40 mK (@ 25 °C, F1.0)
• Optical Sensor: 1/2.7″ Progressive Scan CMOS
• Optical Resolution: 2688 × 1520 (4 MP)
• Optical Lens: 2.8 mm focal length
• Minimum Illumination: 0.0089 Lux @ F1.6 (AGC ON)
• Temperature Range: –20 °C to +150 °C
• Accuracy: ±8 °C (depending on configuration)
• Ingress Protection: IP67 weatherproof rating
• Operating Temperature: –40 °C to +65 °C
• Power Supply: 12 V DC ±25% / PoE (802.3af, Class 3)
• Dimensions: 138.3 mm × 138.3 mm × 123.1 mm
• Weight: Approx. 940 g

Applications & Use Cases

Ideal for offices, retail spaces, security lobbies, factory entry points, and building corridors. The ultra-wide thermal lens enables large-area awareness at close distance — allowing you to detect movement, heat anomalies or potential intrusions with speed and precision.

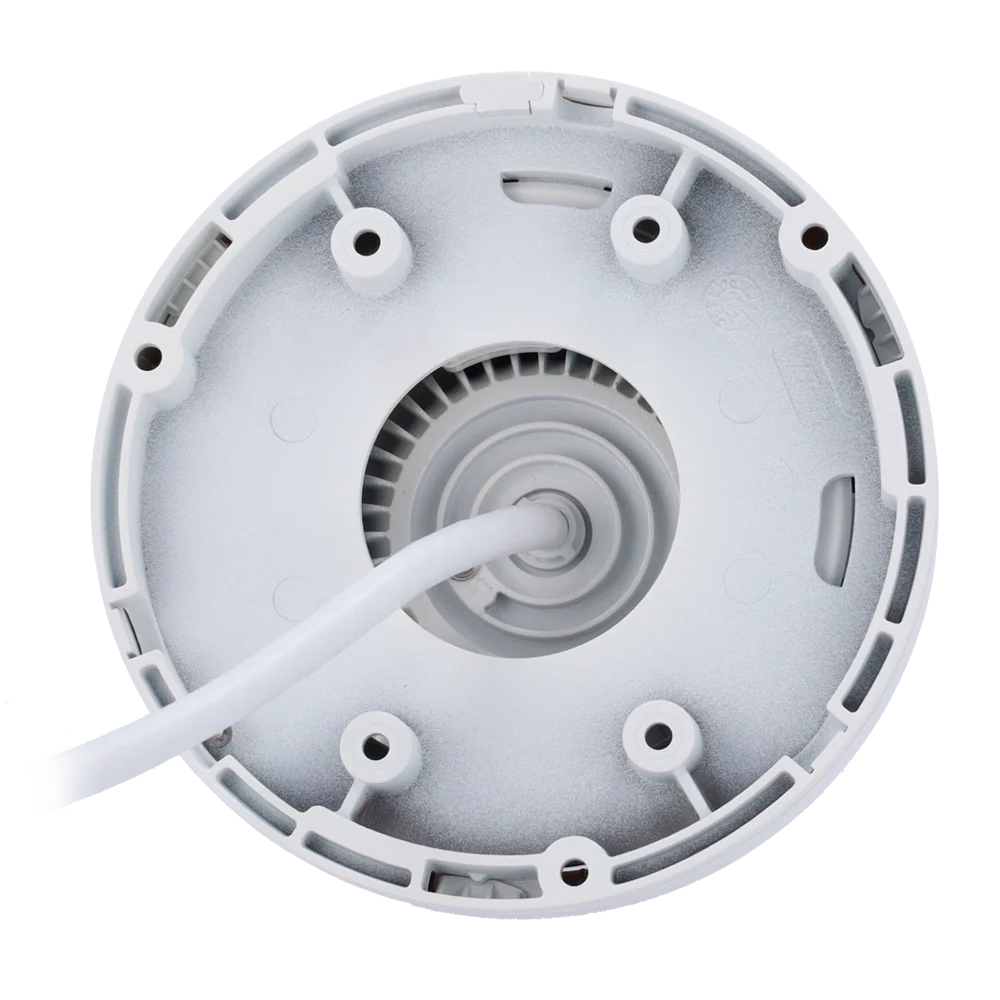

Installation Tips

• Mount between 2 m and 3.5 m height for best field coverage.
• Ensure no reflective or glass surfaces are directly in front of the thermal lens.
• Integrate with your Hikvision NVR or ONVIF-compliant recorder for advanced event management and alarm control.
• Set temperature-based rules for machinery monitoring or fire-risk zones.

Professional Thermal Detection in Compact Form

The HIKVISION HEATPRO DOME 2.1MM DS-2TD1228-2/QA provides dependable thermal and optical monitoring in a discreet, compact design. It’s the perfect blend of precision, reliability, and smart analytics for short-range protection. ✅ Available now at NeonSales.co.za — add professional-grade heat detection to your security system today.
