Dual-spectrum surveillance you can rely on. The DS-2TD2617-3/QA from Hikvision’s HeatPro series combines thermal imaging and high-definition optical video in a rugged outdoor housing built for South African conditions. With thermal detection for low-light or obscured scenes and a 4 MP optical module for visual clarity, this camera gives you complete monitoring capability in one unit.

Why it’s a smart choice

Traditional cameras often struggle when lighting fails, smoke builds up or visibility is obstructed. With the DS-2TD2617-3/QA, you get an integrated thermal sensor and a visible-light camera in one streamlined unit — giving you both detection and verification. Smart analytics further reduce false alarms, so you get actionable alerts, not noise.

Key features & benefits

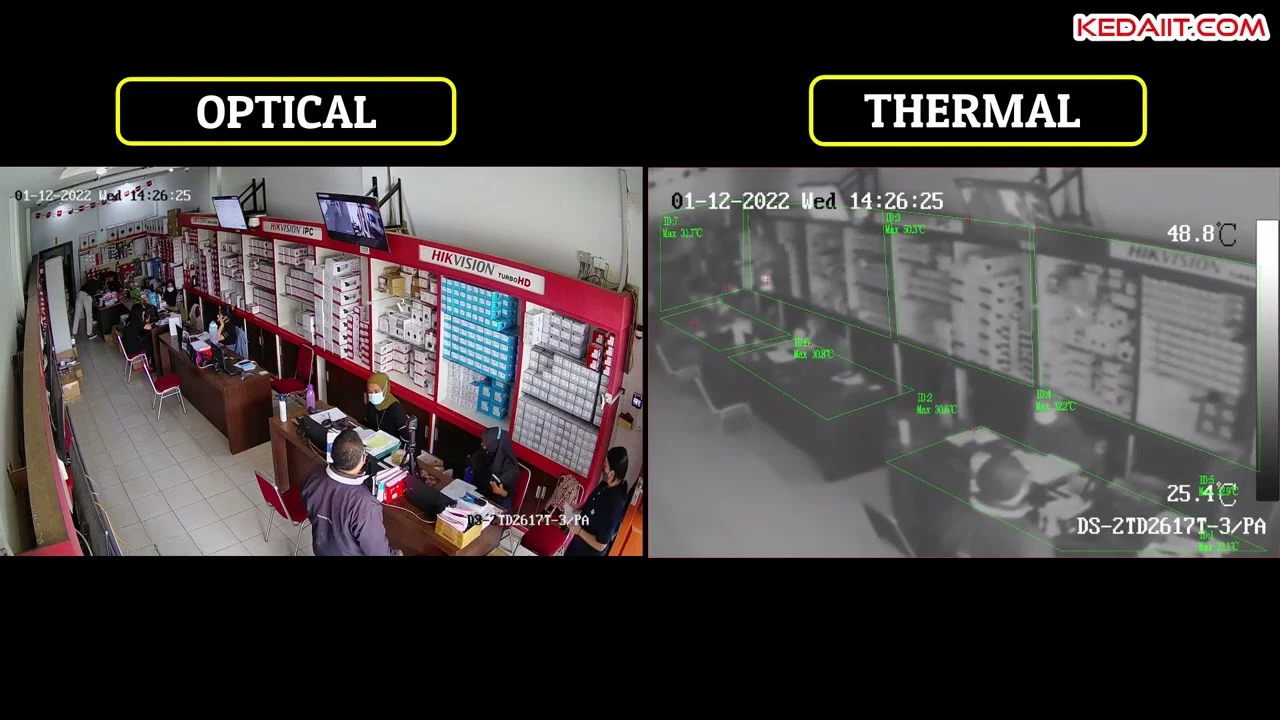

• Bi-spectrum design: 160 × 120 thermal module (17 µm VOx) with a 4 MP optical sensor — dual capability in one housing.
• High-accuracy temperature exception alarms: Temperature measurement range –20 °C to +150 °C, accuracy ±8 °C — useful for fire-prevention and hotspot detection.
• Robust build for outdoor use: IP67 weather protection, IK10 vandal resistance and surge/lightning protection ensure durability in harsh climates.
• Smart analytics included: Line crossing, intrusion detection, region entrance/exit rules plus temperature-based alarms help minimize false alerts.
• 4 MP visible-light module: Optical sensor (2 688 × 1 520) with 4 mm fixed lens covers a wide field of view for visual verification.

Specifications

• Model: DS-2TD2617-3/QA
• Thermal Module: 160 × 120 pixels, 17 µm VOx sensor; NETD < 40 mK (at 25 °C, F1.1)
• Thermal lens / field of view: Approx. 3.1 mm focal length; field of view approx. 50° × 37.2° (H×V)
• Optical Module: 1/2.7″ Progressive Scan CMOS, 2 688 × 1 520 resolution; min illumination approx. 0.0089 Lux (F1.6, AGC ON)
• Optical lens / field of view: 4 mm fixed focal length; field of view approx. 84° × 44.8° (H×V)
• Temperature measurement: –20 °C to +150 °C; accuracy ±8 °C
• Video compression: H.265 / H.264 / MJPEG dual-stream support
• Ingress protection: IP67; IK10; surge protection (e.g., 6000 V)
• Power: 12 V DC ±25% or PoE (802.3af Class 3); max power consumption approx. 6 W

Ideal applications

• Perimeter protection for industrial sites, factories, mines or warehouses where visibility is compromised
• Fire-risk areas needing both visual surveillance and temperature-based warning
• Gated estates, logistics yards or campuses where dual-spectrum monitoring reduces total camera count
• Outdoor environments in South Africa with harsh weather, low light or smoke/haze where conventional cameras struggle

Installation & setup tips

• Mount the camera at a suitable height and clear line of sight — ensure both thermal and optical modules cover the critical zone.
• Use PoE for simplified installation where possible — reduces separate power cabling.
• Configure the temperature exception and analytics rules in the camera’s web interface to match your site’s environmental conditions.
• Ensure proper housing/protection if located in dusty or high-moisture outdoor areas; maintain lens cleanliness for optimal thermal performance.

Upgrade your security with dual-spectrum precision. The Hikvision DS-2TD2617-3/QA brings together thermal detection and high-definition visible-light imaging in one robust package — ideal for South African installations where reliability and clarity cannot be compromised.

Short product blurb (for collection pages): Hikvision DS-2TD2617-3/QA — Bi-Spectrum Thermal & Optical Bullet Camera, 160×120 thermal + 4 MP optical, temperature exception alarms, IP67 rated for outdoor use.
