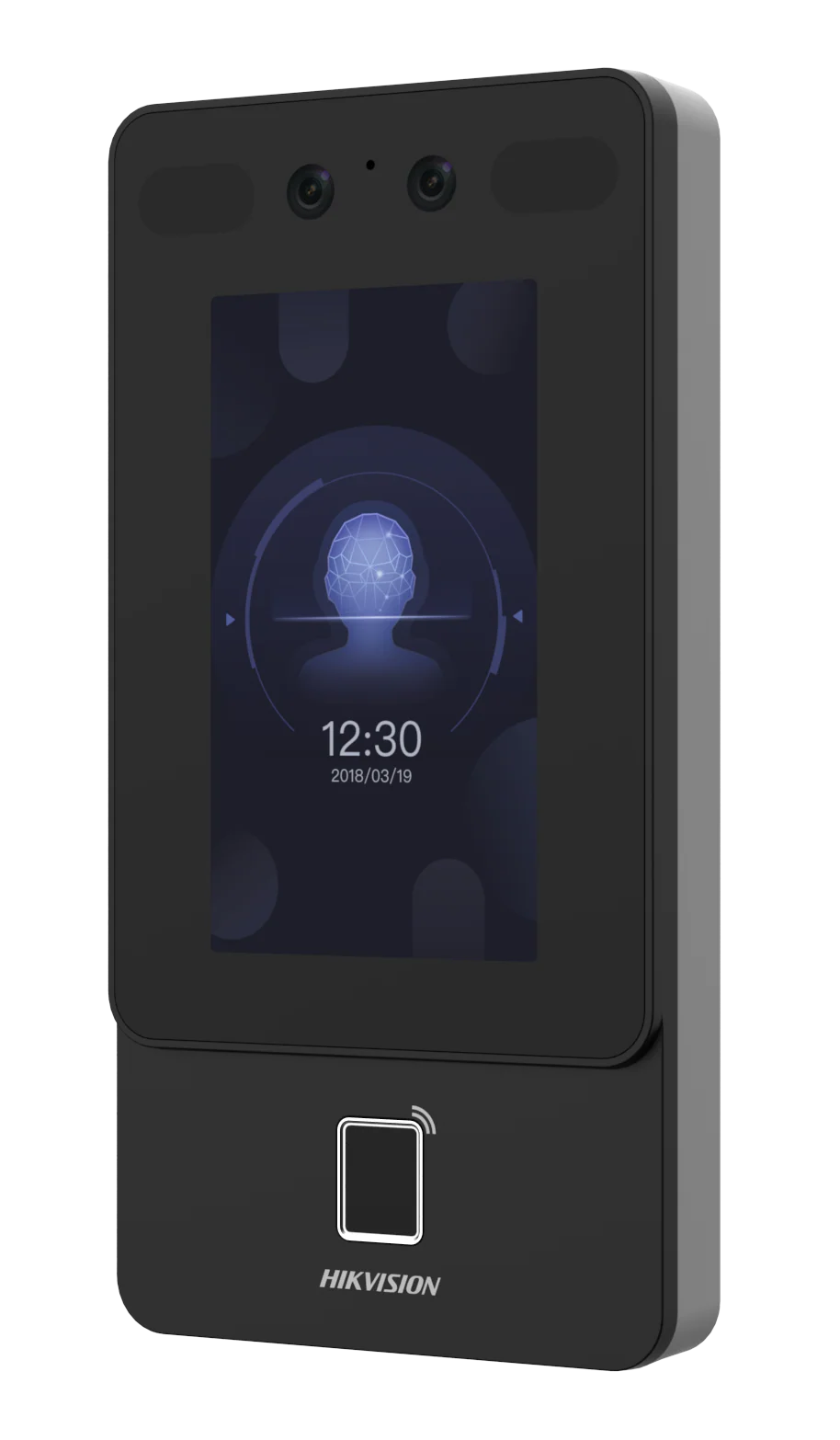

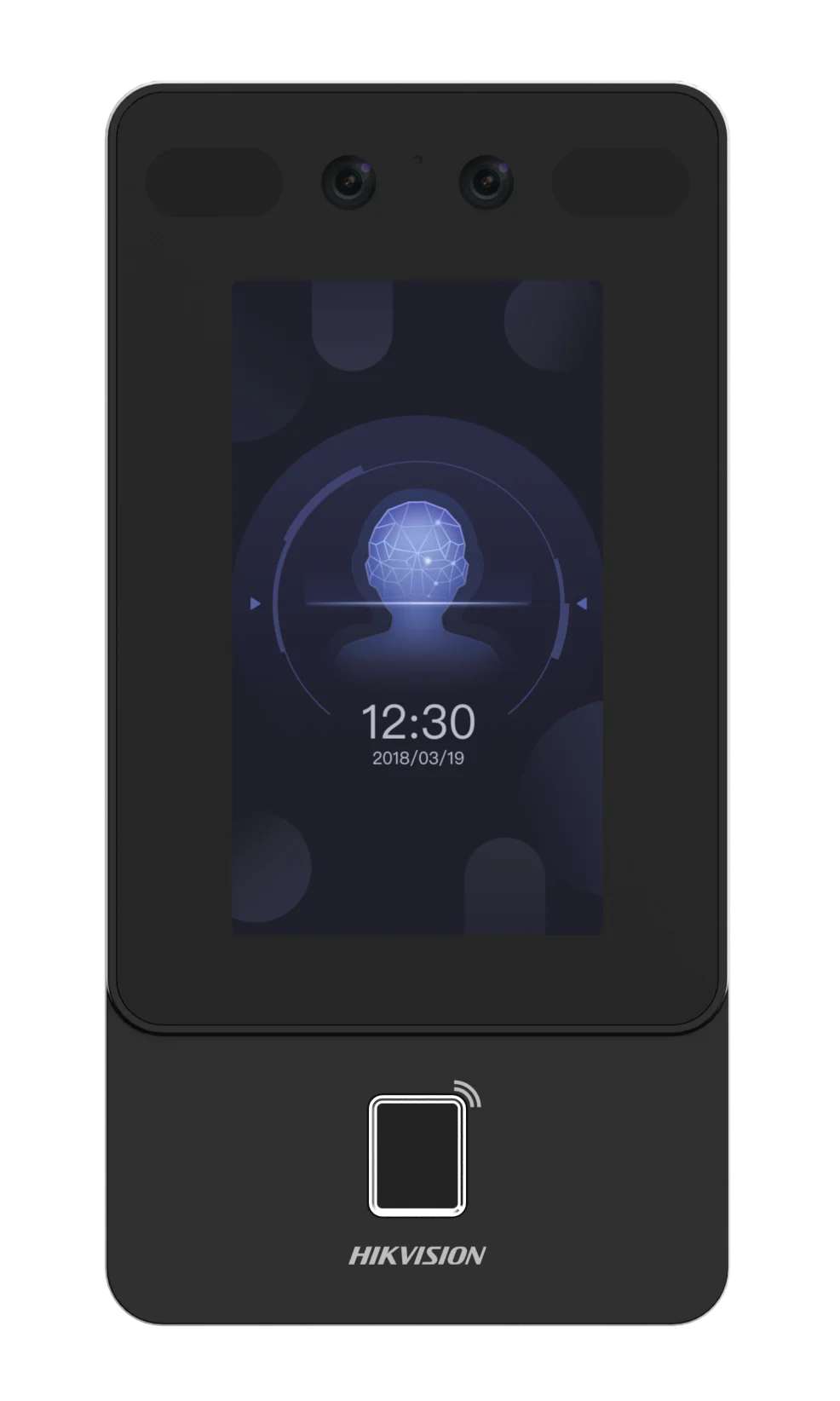

Hikvision DS-K1T342MFWX-E1 Face Recognition Terminal

Secure and fast biometric access control for modern facilities. The Hikvision DS-K1T342MFWX-E1 is a high-performance facial recognition terminal engineered for dependable identity verification in offices, schools, factories and residential estates. With support for up to 1,500 faces, 3,000 fingerprints and 3,000 cards, plus sub-0.2-second recognition, this device delivers both speed and accuracy when controlling access — ideal for South Africa’s demanding environments.

Why it’s a smart access-control choice

• Rapid biometric authentication: Face recognition in less than 0.2 seconds with accuracy over 99% in tests.
• Multi-modal credentials: Supports 1,500 faces, 3,000 fingerprints and 3,000 cards — flexible for your users.
• Mask-recognition capable: Works even when users are wearing face masks — ideal for health-aware or high-traffic environments.
• Built-in PoE and lock output: Can be powered via PoE (37-57 VDC) and supplies 12 VDC/1 A to door lock when PoE powered — simplifies installation.
• Weather-resistant build: IP65-rated housing, wide temperature range (-30 °C to +60 °C) — suitable for both indoor and sheltered outdoor entry points in South Africa.

Specifications & features

Model	DS-K1T342MFWX-E1
Face capacity	1,500 users
Fingerprint capacity	3,000 users
Card capacity	3,000 users (M1 card, 13.56 MHz)
Recognition distance	0.3 m to 1.5 m
Recognition duration	<0.2 s (face)
Accuracy rate	>99%
Display	4.3″ capacitive-touch screen (272×480)
Camera	2 MP wide-angle lens
Interface	10/100 Mbps network; Wi-Fi support
Power input	12 V DC/1 A or PoE 37-57 VDC
Lock output	12 V DC/1 A (when driven via PoE)
Operating temp.	-30 °C to +60 °C
Protection rating	IP65

Installation & usage tips

• Mount at eye-level for most users (approx. 1.4 m from ground) and ensure no direct sunlight or strong backlight hits the camera area.
• Connect via PoE if possible to simplify cabling and use the built-in lock output to drive a 12 V actuator directly.
• Configure user groups and authentication modes (face only, face + card, fingerprint) to suit your site’s security policy.
• For outdoor or semi-outdoor use, place the unit under an awning or recess to protect from direct rain, even though it is IP65 rated.
• Keep firmware up to date via Hikvision’s web-interface to ensure best performance and latest security patches.

Frequently asked questions
