HIKVISION CAT 6 CABLE GREY (DS-1LN6UTC0) PER METER

This HIKVISION CAT 6 CABLE GREY (DS-1LN6UTC0) PER METER boasts stable electrical performance, meeting ANSI/TIA-568.2-D, IEC61156, and ISO/IEC11801 standards. The sheath provides strong mechanical properties and high tensile and compressive strength to minimize damage during installation. It excels in the Fluke 90-meter permanent link test at 50°C high temperatures and in the Fluke 100-meter channel test with 57 V/1 A DC power (PoE) continuously loaded. Thanks to its Solid-Bare Copper conductor, this cable has low resistance and offers superior electrical and transmission performance. Plus, it is compliant with RoHS 2.0 regulations.

FEATURES

:
• Revolutionize your network with the innovative HIKVISION CAT 6 CABLE GREY (DS-1LN6UTC0) PER METER.
• Core diameter: 0.565mm
• Unmatched copper wires for exceptional transmission performance.
• Quality verified by Fluke test
• Guaranteed long PoE transmission distance
• Great PVC flame resistance.

      SPECIFICATION:

• Category -Cat 6
• Structure-U/UTP
• Fire Resistance-CPR Fca
• Usage Scenario-Indoor

• Conduct
• Conductor Material-Solid-Bare Copper
• Conductor Diameter-0.515 ± 0.005 mm 24AWG

• Insulation
• Insulation Diameter-0.93 ± 0.05mm

• Sheath
• Sheath Materia-lPVC
• Sheath Color-Grey, or orange

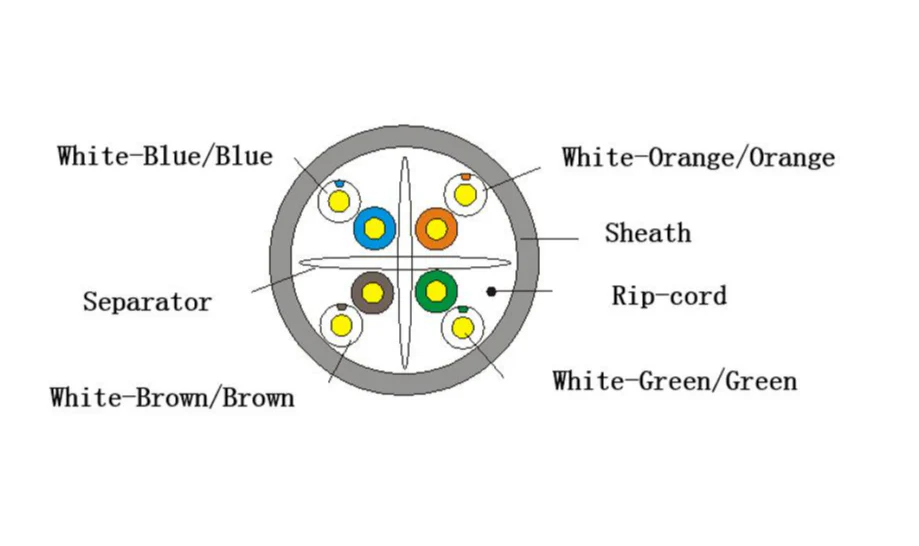

• Structure
• Length-305 ± 1.5 m
• Rip Cord-Yes
• Separator-Yes
