Compact, efficient NVR for small sites

The Hikvision DS‑E08NI‑Q1/8P is a purpose‑built 8‑channel network video recorder featuring an integrated 8‑port PoE switch and SSD storage. Designed for small retail outlets, offices, kiosks and compact installs, it offers reliable recording, low power consumption and simplified cabling — cameras connect and receive power directly from the unit.

What’s great about it

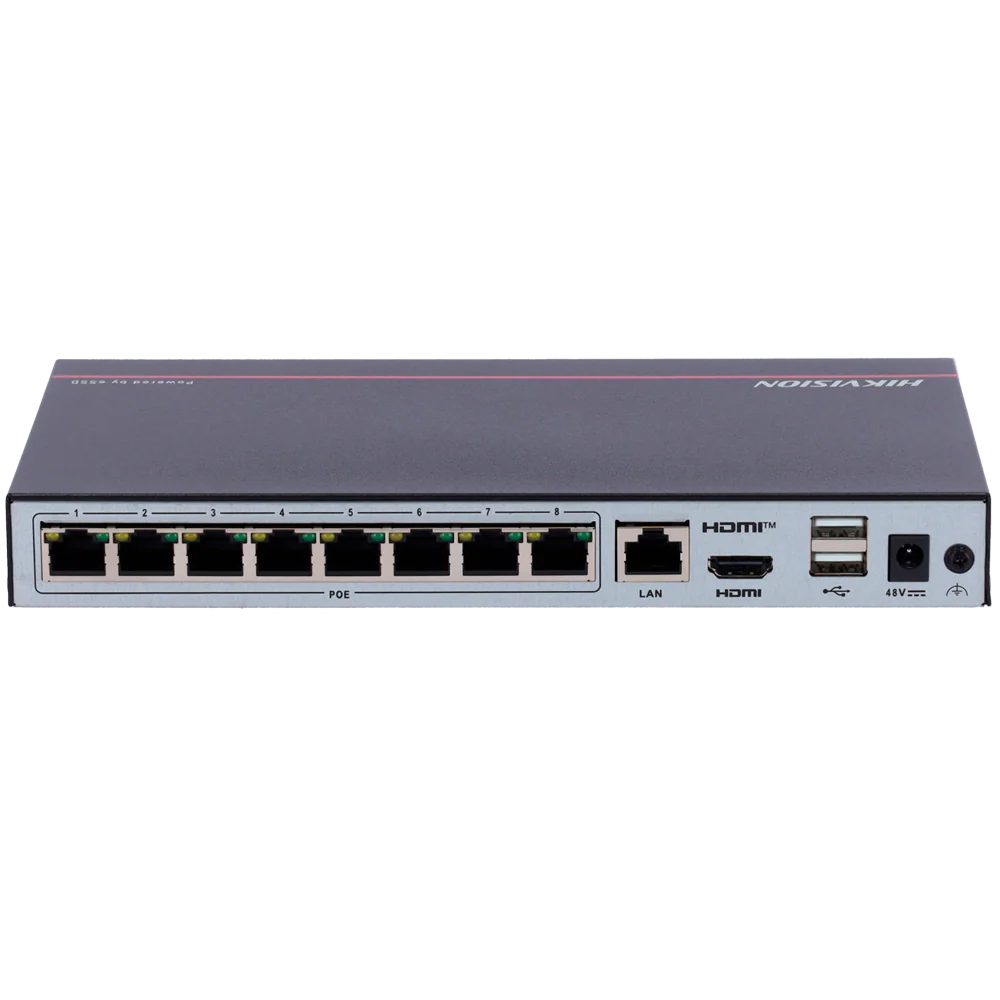

• All‑in‑one convenience: 8 PoE ports (IEEE 802.3af/at) mean cameras connect and power from one device — fewer power boxes and simpler installs.
• SSD storage: Pre‑installed SSD options (1 TB / 2 TB) deliver fast boot, quiet operation and low power draw.
• Efficient compression: H.265 / Smart265 support reduces storage and bandwidth without compromising image quality.

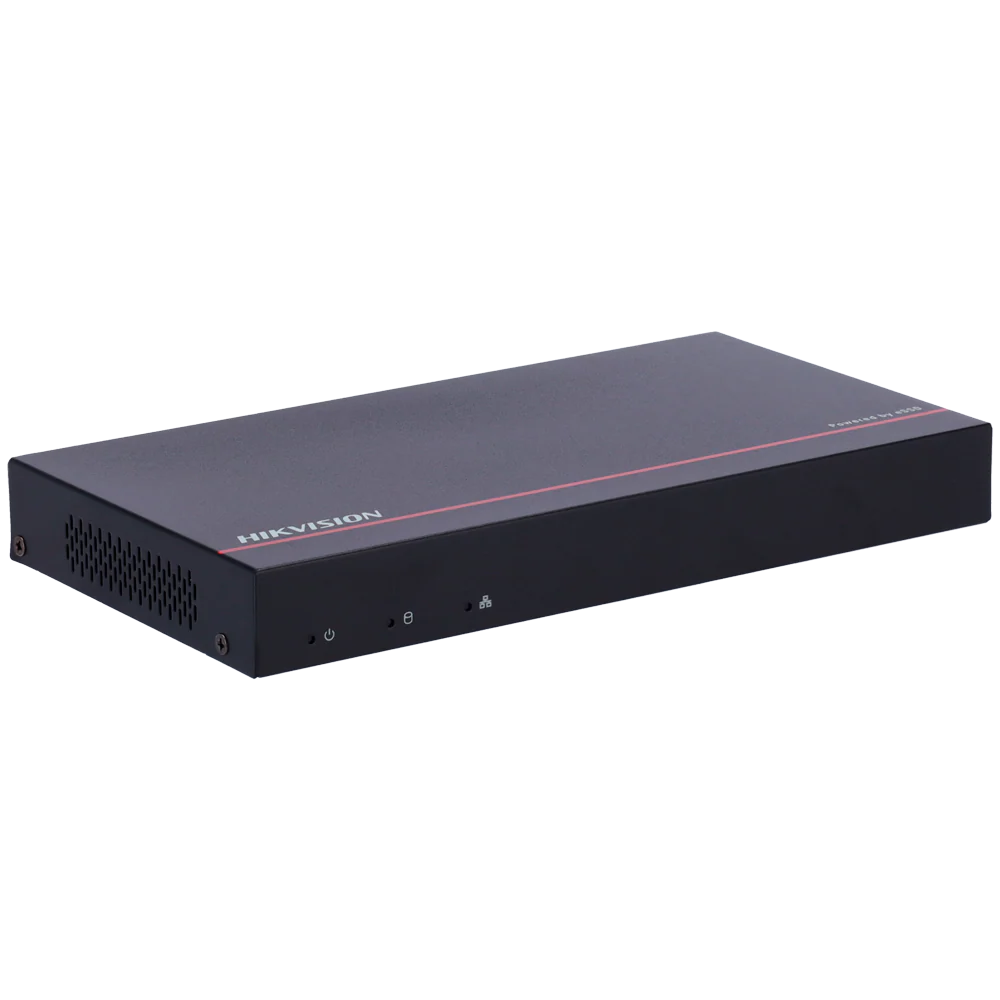

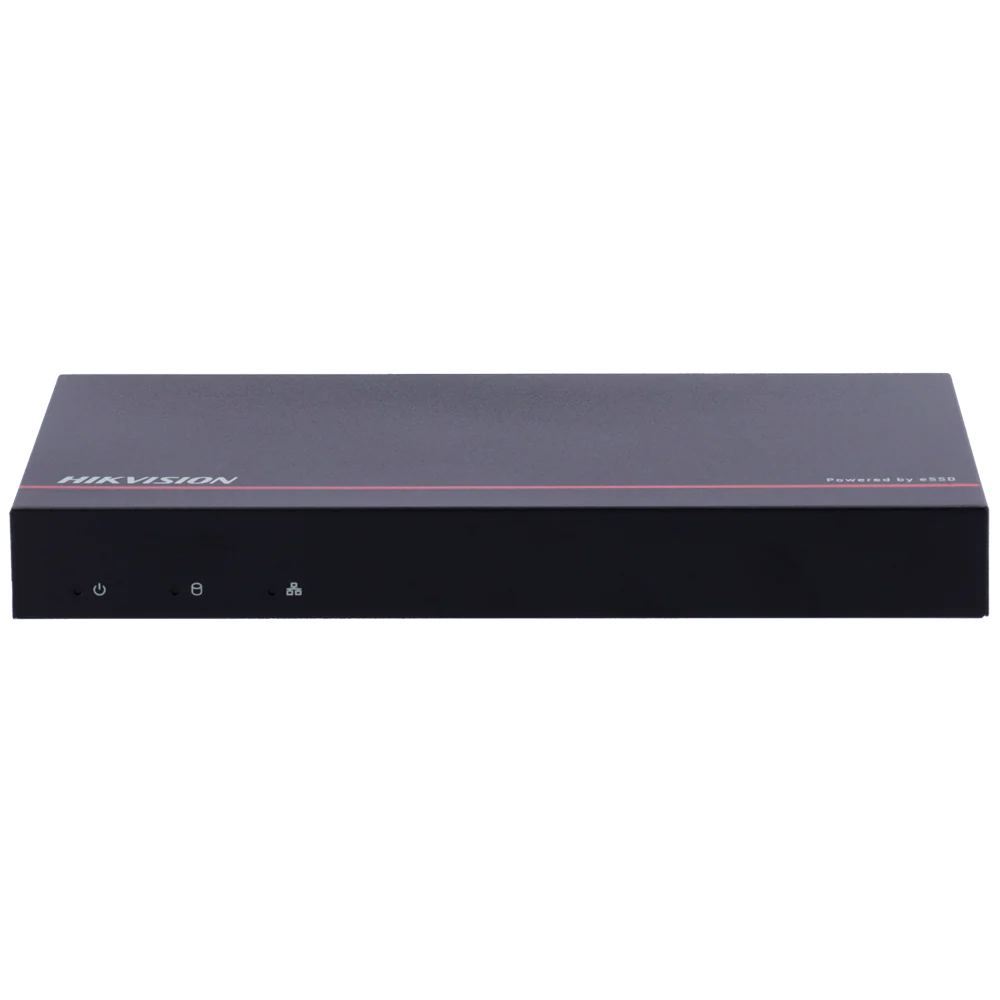

• Small footprint: Slim, low‑power design fits on a shelf or behind a counter — ideal where space and cooling are limited.
• Ready for IP: Supports up to 8 IP camera channels and modern networking for easy upgrades from analogue systems.

Key specifications

• Channels: 8 IP inputs
• PoE ports: 8 × 10/100 Mbps RJ‑45, IEEE 802.3af/at
• Bandwidth: Incoming / outgoing up to 60 Mbps
• Decoding: 4‑ch @ 1080p (25 fps) decoding capability
• Compression: H.265, Smart265, H.264, Smart264
• Storage: SSD (1 TB or 2 TB models; check model variant)
• Power: 48 V DC input (1.36 A). Typical power ≤ 10 W with SSD installed
• Operating temp: −10 °C to +50 °C
• Dimensions: 225 × 122 × 27 mm
• Weight: ≤ 0.57 kg

Ideal applications

• Small retail stores and boutiques
• Office reception areas and compact branches
• Kiosks, vending and small‑footprint sites
• Quick IP upgrades from older DVR systems

Installation & commissioning notes

• Install the NVR in a ventilated, cool location — SSDs prefer stable temperatures for long life.
• Confirm PoE budget: total camera power draw must be within the unit’s 8‑port specification.
• Update firmware on first install to ensure security and latest features.
• Use Hik‑Connect or secure VLAN access for remote viewing; enable strong passwords and HTTPS.
• Plan storage retention (continuous vs motion) based on SSD capacity to balance retention days and cost.

Why this model?

For small sites that want modern IP recording without complicated networking or extra power supplies, the DS‑E08NI‑Q1/8P simplifies cabling and management while offering SSD reliability and efficient compression — a neat, low‑maintenance solution.
