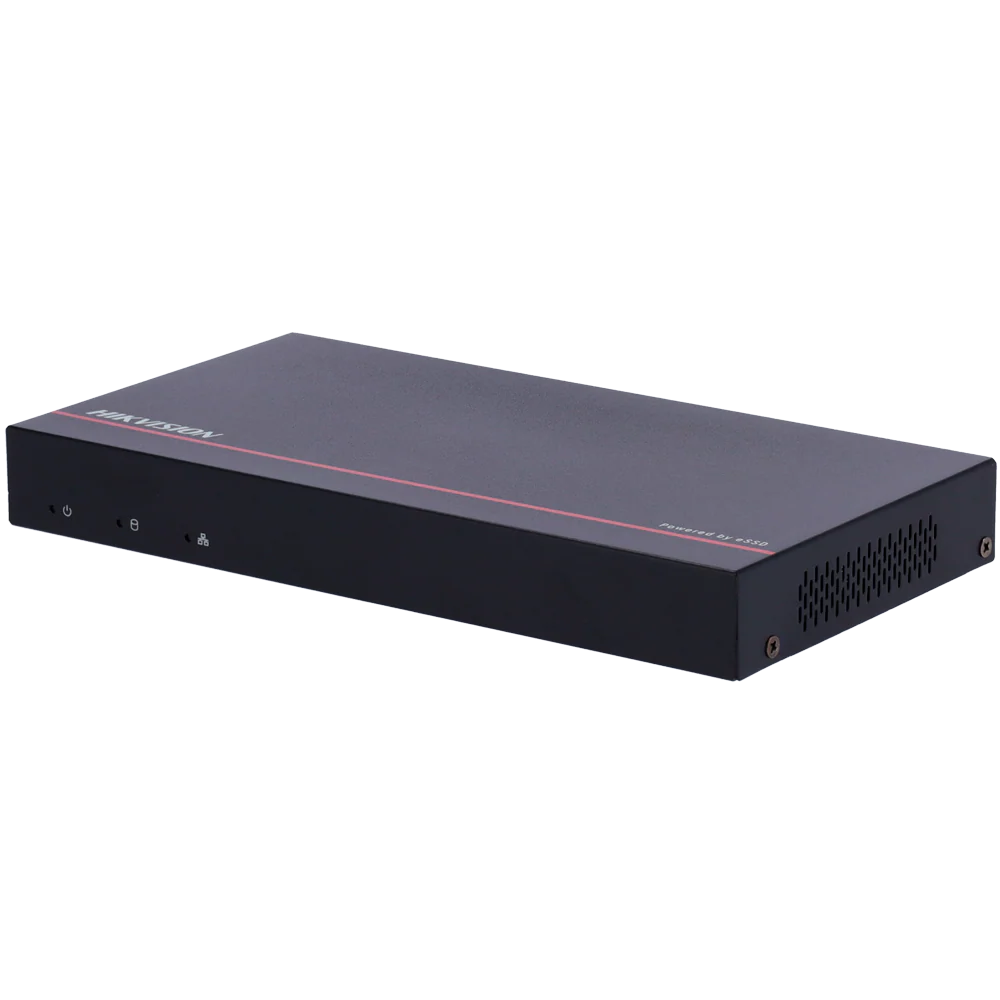

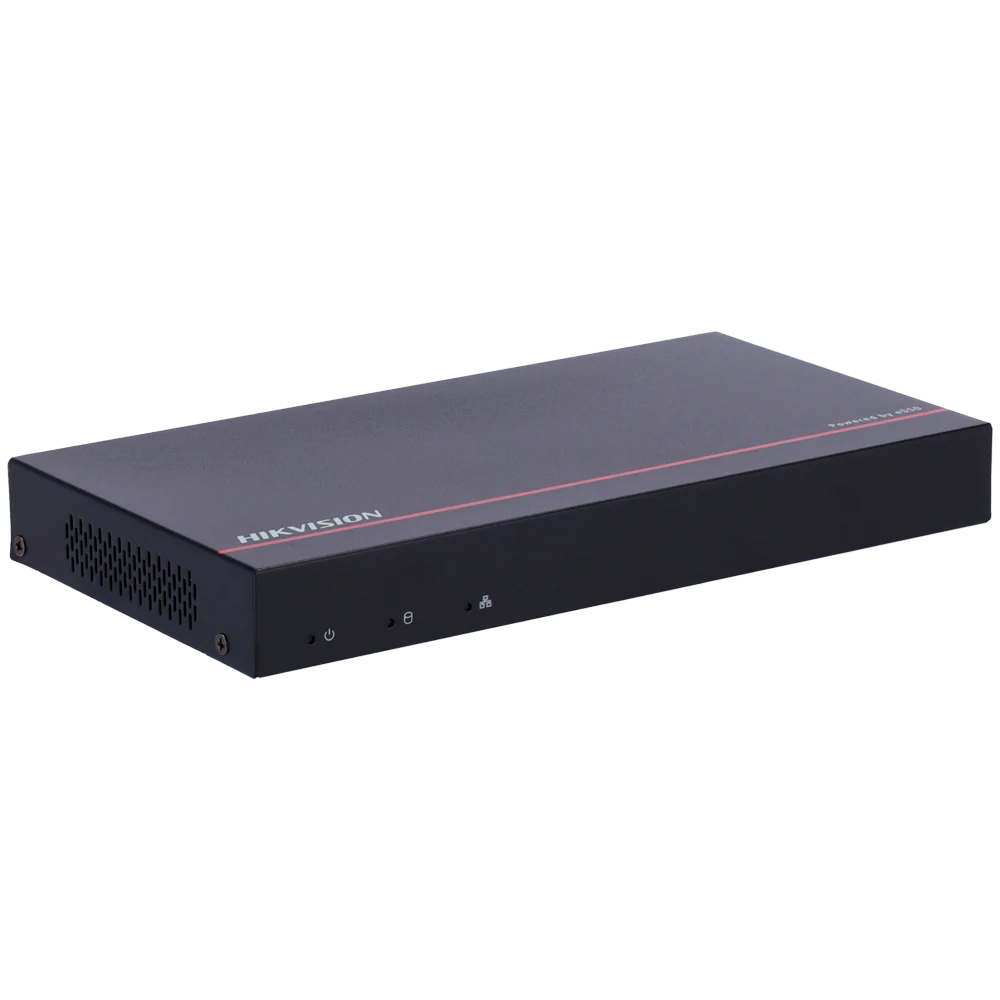

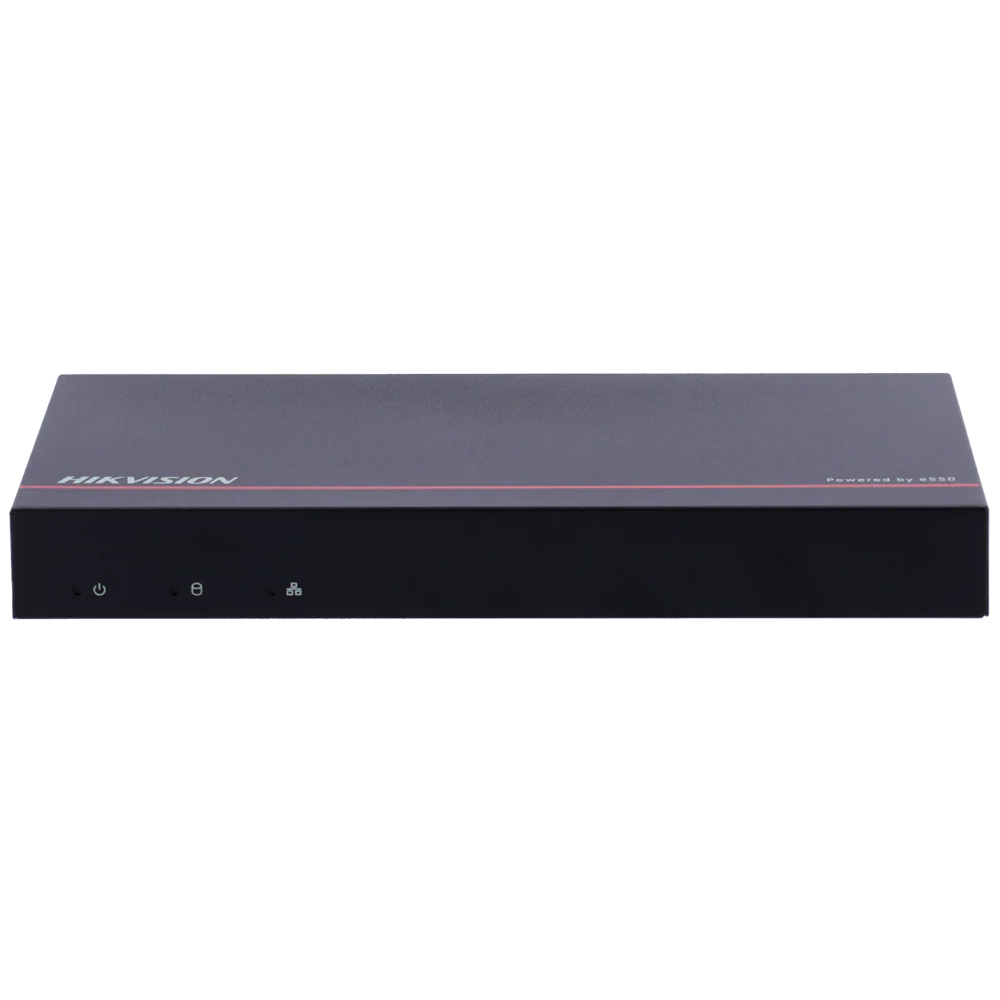

HIKVISION DS-E08NI-Q1/8P — 8-Channel SSD NVR with 8-Port PoE

Overview

The DS-E08NI-Q1/8P is an 8-channel network video recorder with integrated 8-port PoE switch, designed for compact installations that demand IP recording with minimal cabling. Pre-configured with SSD storage options and efficient H.265+/H.265 compression, this NVR is ideal for small retail shops, offices, kiosks and branch sites in South Africa where simplicity and reliability matter.

Features & benefits

• Supports 8 IP camera inputs — enables full coverage for modest site sizes.
• Built-in 8 PoE ports (IEEE 802.3af/at) simplify installation and reduce external power wiring.
• Low power consumption (<10 W with SSD) and compact form factor (225 × 122 × 27 mm) make it suitable for constrained spaces.
• Efficient video compression (H.265+/H.265/H.264+/H.264) helps reduce storage and bandwidth requirements.
• Pre-installed SSD options (1 TB / 2 TB) provide fast boot and reliable recording with minimal maintenance.

Technical specifications

• IP video inputs: 8-channels
• Incoming bandwidth: 60 Mbps
• Outgoing bandwidth: 60 Mbps
• Decoding capability: Up to 4-channels @1080p (25 fps)
• Video compression: H.265, Smart265, H.264, Smart264
• PoE ports: 8 × RJ-45 10/100 Mbps, IEEE 802.3af/at, ≤58 W
• Storage: SSD up to 2 TB pre-installed (model dependent)
• USB ports: 2 × USB 2.0 (rear panel)
• Network interface: 1 × RJ-45 10/100 Mbps
• Power supply: 48 V DC, 1.36 A
• Power consumption: ≤10 W (with SSD, without cameras)**
• Working temperature: -10 °C to +50 °C
• Dimensions: 225 × 122 × 27 mm; Weight ≤ 0.57 kg

Recommended applications

• Retail shops or boutiques needing IP video recording with minimal hardware.
• Branch offices or kiosks where camera power and cabling should be simplified.
• Small business sites upgrading from analogue DVRs to IP but with limited rack space.

Installation notes

• Ensure the total camera PoE budget does not exceed the NVR’s built-in port capability.
• Install in a ventilated area to maintain SSD and system longevity.
• Update firmware on commissioning, change default credentials and restrict network access to maintain security.
• Plan retention days based on resolution, motion events and SSD capacity.
