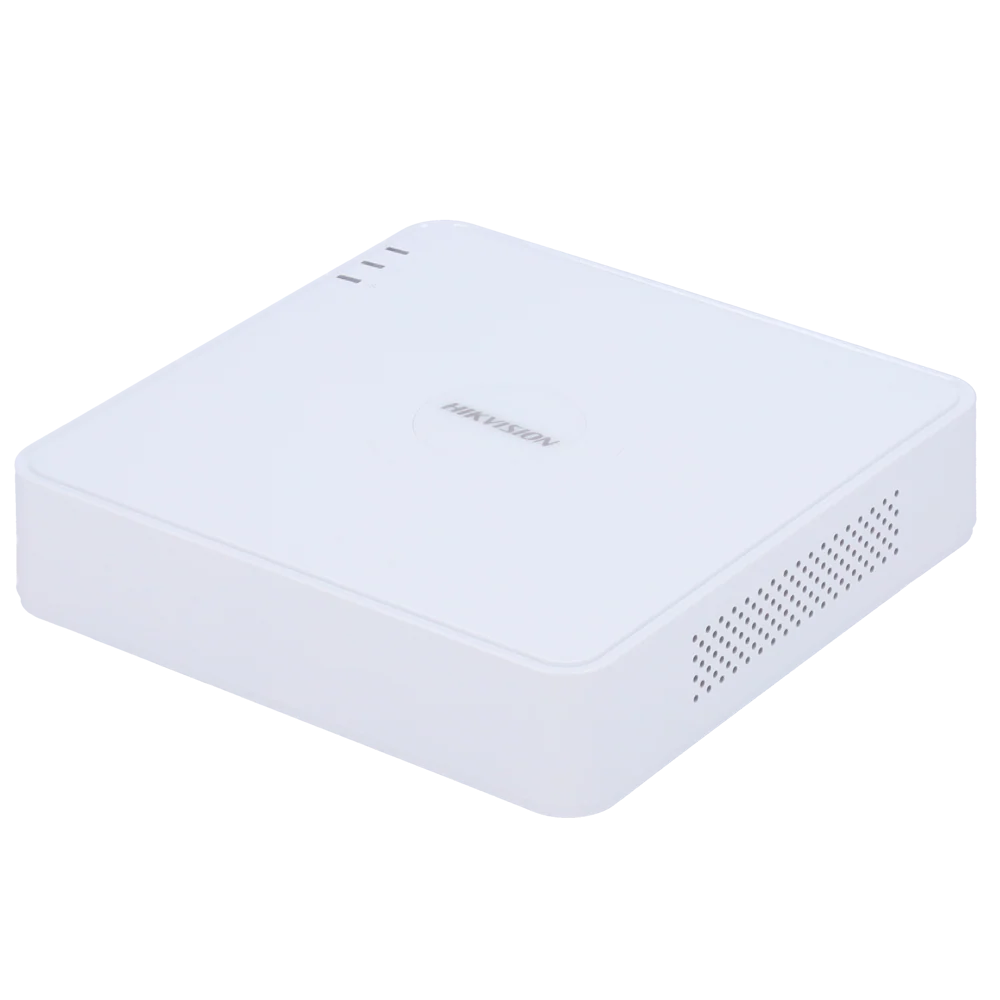

Hikvision DS-7104NI-Q1/4P – 4-Channel Mini PoE NVR

Overview

The Hikvision DS-7104NI-Q1/4P is a compact, efficient 4-channel network video recorder designed for small sites and retail branches in South Africa. It integrates four PoE ports to power IP cameras directly, supports modern H.265+/H.265 compression and offers simultaneous HDMI and VGA outputs for flexible monitoring. Ideal for stores, offices, kiosks and light commercial applications requiring dependable IP video recording.

Key Features & Benefits

• Supports up to 4 IP camera inputs, enabling active surveillance of smaller installations.
• Built-in 4 PoE ports simplify cabling and camera deployment (IEEE 802.3af/at standard).
• Efficient H.265+/H.265 compression reduces storage requirements and bandwidth usage.
• Incoming bandwidth of up to 40 Mbps and outgoing up to 60 Mbps ensure smooth video flow.
• Simultaneous HDMI and VGA outputs allow flexible monitor connection and on-site viewing.
• Single SATA interface supports large-capacity HDDs (up to 6 TB) for reliable storage.
• Compact mini 1U form factor fits under counters, in cabinets or behind shop displays.

Technical Specifications

• IP Video Inputs: 4-ch, up to 6 MP resolution.
• Incoming Bandwidth: 40 Mbps.
• Outgoing Bandwidth: 60 Mbps.
• Decoding Capability: 4-ch at 1080p (30 fps), or 2-ch at 4 MP (30 fps), or 1-ch at 6 MP (30 fps).
• Video Compression: H.265+/H.265/H.264+/H.264.
• Video Outputs: HDMI (1-ch) and VGA (1-ch) simultaneous output.
• PoE Ports: 4 × RJ-45 (10/100 Mbps) with IEEE 802.3af/at support, total PoE power budget ≤ 36 W.
• SATA Interface: 1 × SATA, up to 6 TB HDD capacity.
• USB Interfaces: 2 × USB 2.0 (rear panel).
• Network Interface: 1 × RJ-45 10/100 Mbps self-adaptive Ethernet port.
• Power Supply: 48 V DC, 1 A. Typical power consumption ≤ 10 W (excluding HDD and PoE load).
• Operating Temperature: -10 °C to +55 °C; Humidity: 10% – 90%.
• Dimensions: 200 × 200 × 48 mm.
• Weight: ≤ 1 kg (without HDD).

Recommended Applications

• Retail stores and boutiques with IP cameras and modest channel count.
• Office branches or reception areas where PoE simplifies camera installation.
• SMEs upgrading from analogue DVRs to IP surveillance while retaining budget control.
• Kiosks or small-footprint sites needing compact hardware with reliable recording.

Installation Notes

• Install the unit in a well-ventilated space to help HDD longevity and system stability.
• Confirm total camera PoE power consumption stays within the 36 W budget.
• Update firmware on first set-up and enable secure access with strong passwords.
• Set storage retention policies according to available HDD size and recording bandwidth.
• Label and document camera ports connected to PoE ports for future maintenance clarity.
