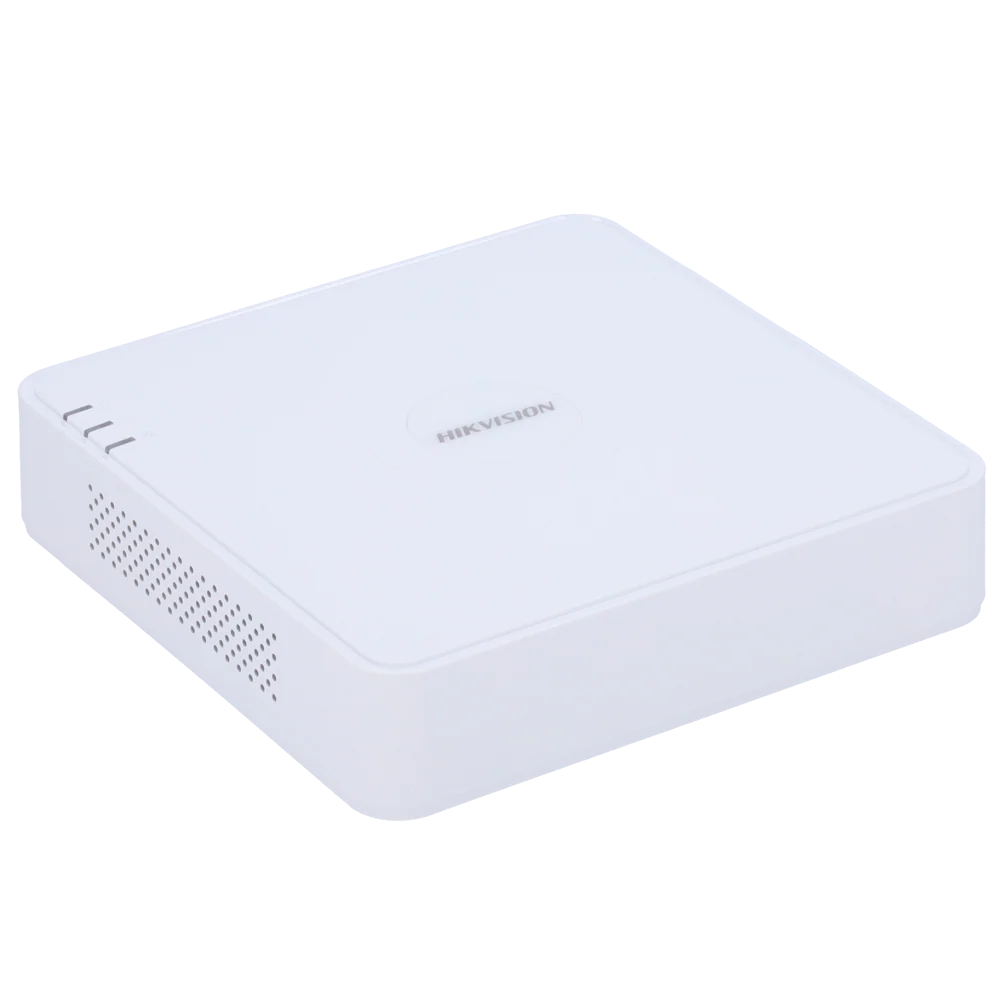

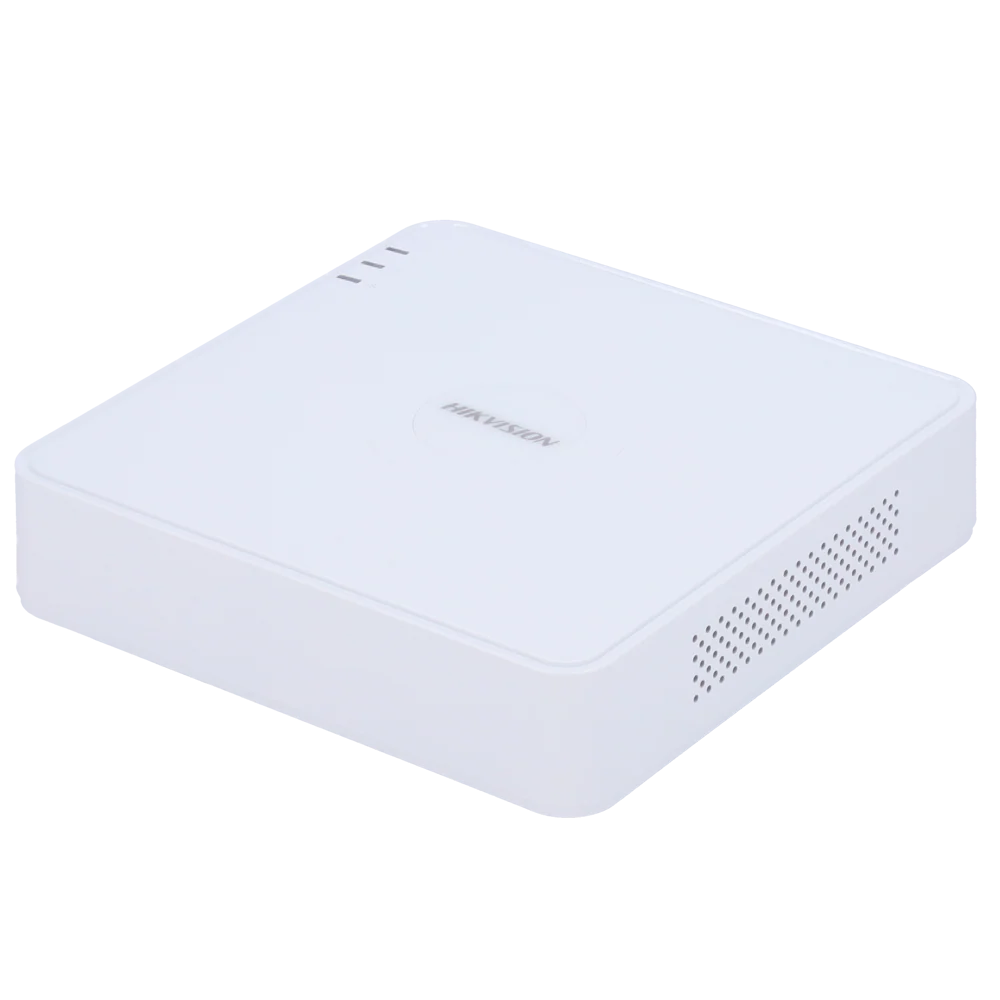

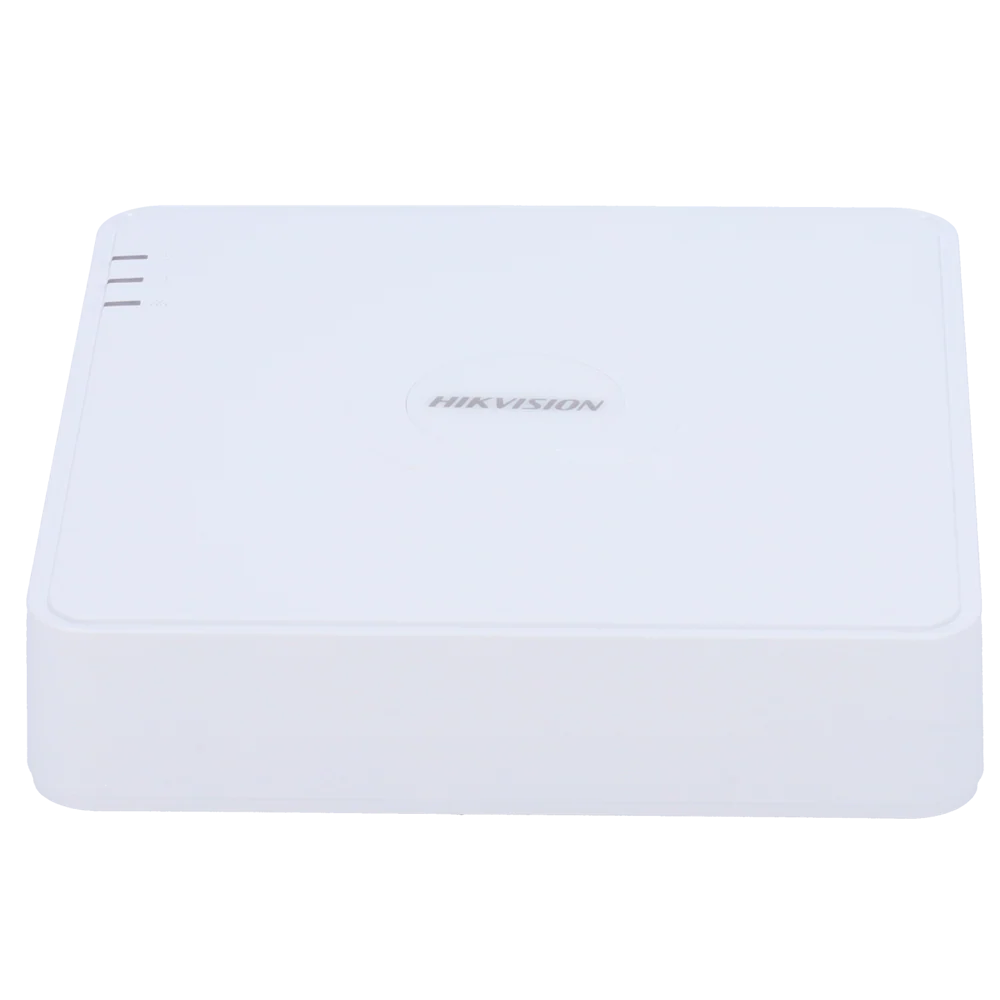

Hikvision DS‑7104NI‑Q1 — 4‑Channel Mini NVR (Non‑PoE)

Overview

The DS‑7104NI‑Q1 is a compact 4‑channel network video recorder designed for small shops, offices and branch sites. It records IP camera streams using efficient H.265/H.264 compression, offers simultaneous HDMI and VGA outputs for local monitoring and supports a single SATA drive for reliable on‑site storage.

Features & benefits

• Supports up to 4 IP camera channels — suitable for small installations.
• Efficient H.265+/H.265 compression reduces storage and bandwidth requirements.
• Simultaneous HDMI and VGA outputs for flexible local monitoring setups.
• Single SATA bay supporting up to 6 TB HDD for recording retention.
• Compact mini form factor — easy to install under counters or in small cabinets.

Technical specifications

• Channels: 4 IP inputs
• Incoming bandwidth: 40 Mbps
• Outgoing bandwidth: 60 Mbps
• Decoding capability: Up to 4‑ch @ 1080p (30 fps)
• Video compression: H.265+, H.265, H.264+, H.264

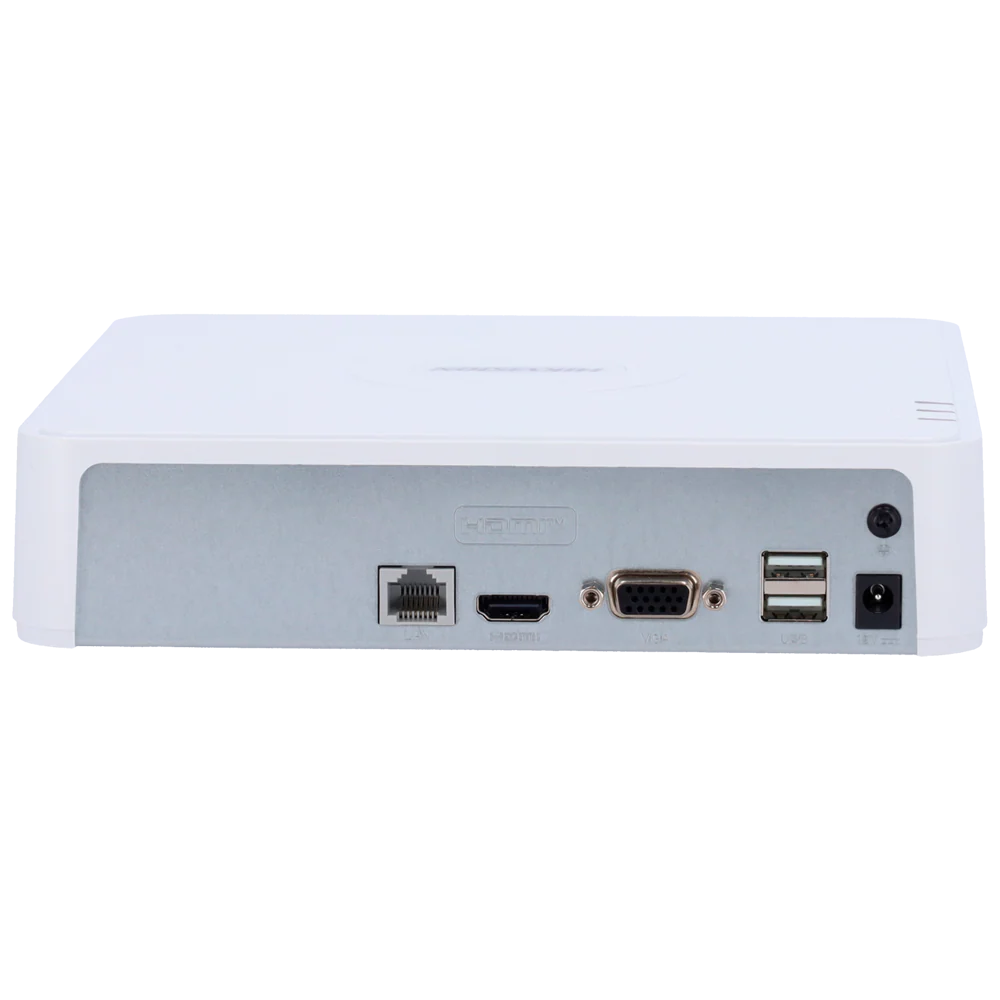

• Video outputs: HDMI and VGA simultaneous
• Storage: 1 × SATA (up to 6 TB)
• USB: 2 × USB 2.0
• Network: 1 × RJ‑45 10/100 Mbps
• Power: 12 V DC, 1.5 A
• Power consumption: ≤ 10 W (without HDD)
• Operating temperature: ‑10 °C to +55 °C
• Dimensions: Approx. 200 × 200 × 48 mm
• Weight: ≤ 1 kg (without HDD)

Installation notes

• Install in a ventilated location to support HDD longevity and system stability.
• Plan external camera power where required — this non‑PoE model does not supply power to cameras.
• Update firmware on first setup and secure access with strong passwords.
• Configure recording modes (continuous, scheduled, motion) to match storage capacity and retention requirements.
• Label camera feeds and port assignments during commissioning for easier maintenance.

What’s in the box (typical)

• DS‑7104NI‑Q1 unit
• Power adapter and power cable
• Quick start guide
