Camera Description

• Image Sensor: 2MP CMOS image sensor
• Signal System: PAL/NTSC
• Effective Pixels: 1920 (H) �1080 (V)
• Min. illumination: 0.01 Lux@(F1.2,AGC ON), 0 Lux with IR
• Shutter Time: 1/25 (1/30) s to 1/50,000 s
• Lens: 2.8 - 12 mm @ F1.4
• Angle of view: 102.25� - 32 �
• Lens Mount: ?14
• Day & Night: ICR
• Angle Adjustment Pan: 0� to 360�, Tilt: 0� to 90�, Rotation: 0� to 360�
• Synchronization: Internal synchronization
• Video Frame Rate; 1080p@25fps/1080p@30fps
• HD Video Output: 1 Analog HD output
• S/N Ratio: >62 dB

General

• Operating Conditions: -40 �C to 60 �C (-40 �F to 140 �F), Humidity 90% or less (non-condensation)
• Power Supply: 12 VDC�15%
• Power Consumption: Max. 4 W
• Protection Level: IP66 IR Range: Up to 40 m

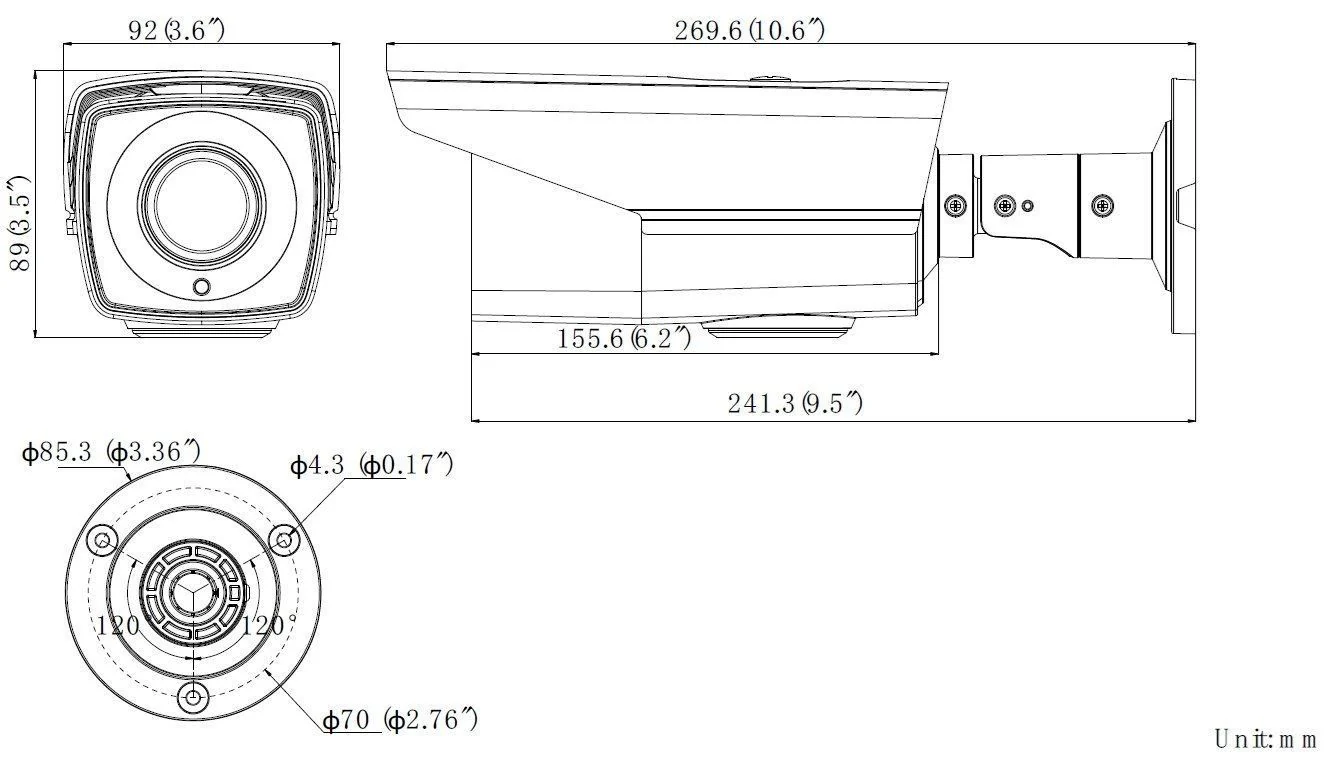

• Dimensions: 92mm�84.8mm�269.6mm (3.62��3.34��3.34�)
• Weight: Approx. 900g (1.98lb)
