HIK 4MP WIFI IP PTZ 4MM – DS-2DE3A400BW-DE/W(F1)(T5)

Compact 4MP Wi‑Fi PTZ with full‑colour night vision

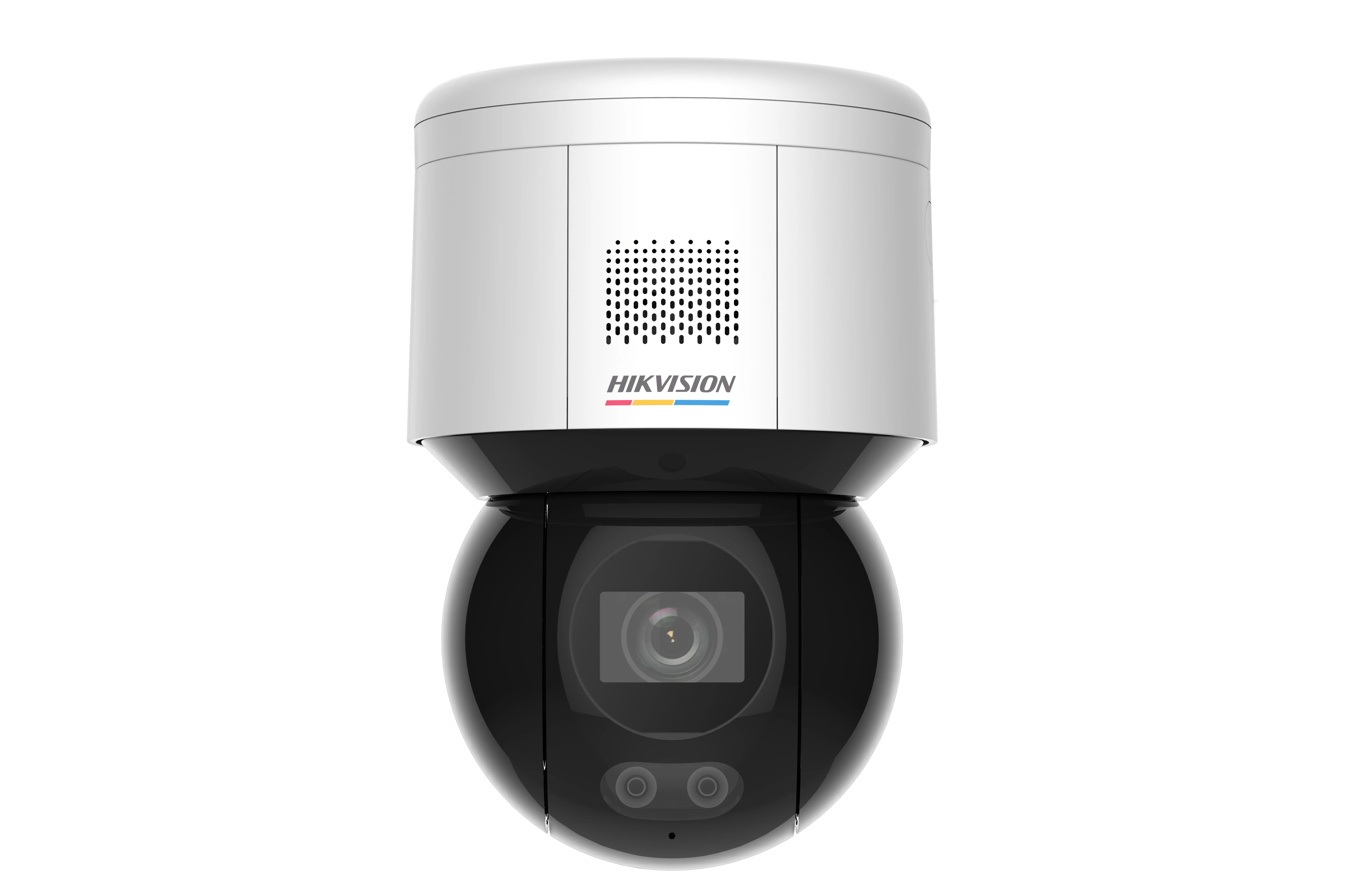

The Hikvision DS‑2DE3A400BW‑DE/W(F1)(T5) is a compact 4MP Wi‑Fi PTZ camera that delivers crisp QHD video, smooth pan/tilt control and excellent colour performance after dark. Equipped with ColourVu low‑light technology and a bright built‑in white light, this mini PTZ produces vivid colour footage around the clock — perfect for estates, shops, parking areas and small business sites where running network cable is difficult or undesirable.

Key features & benefits

• 4MP QHD resolution — clear 2560 × 1440 video for reliable identification of faces and vehicle details.
• Full‑colour night vision — high‑sensitivity sensor plus warm white illumination retains colour in low light.
• Built‑in Wi‑Fi — ideal where Ethernet runs are impractical; supports stable dual‑antenna connections.
• Smooth PTZ control — 350° pan, 0°–90° tilt and fast preset speeds to cover large areas quickly.
• Smart detection — human/vehicle classification reduces false alarms and focuses alerts on real events.
• Flexible power — PoE (802.3at) or 12V DC for versatile installations.
• Weatherproof & robust — IP66 rating with surge protection for tough South African exteriors.

Technical specifications

• Sensor / Resolution: 1/1.8" CMOS — 4MP (2560 × 1440)
• Lens: 4mm fixed (approx. 88.7° horizontal FOV)
• Minimum illumination: Colour: 0.0005 Lux @ F1.0; 0 Lux with white light
• Illumination range: Built‑in white light up to 30 m
• PTZ mechanics: Pan 350°; Tilt 0°–90°; Preset speed up to 60°/s
• Video compression: H.265+/H.265/H.264+/H.264
• Smart features: Human / vehicle classification, motion detection, smart tracking, presets & patrols
• Network: Wi‑Fi (dual‑antenna 2.4 GHz), ONVIF support, Hik‑Connect compatible
• Power: PoE (802.3at) or 12V DC
• Ingress protection: IP66; lightning/surge protection; operating temp suitable for SA climates
• Mounting: Wall/ceiling/pole compatible with appropriate brackets

Ideal applications

• Residential estates and perimeter monitoring
• Retail shopfronts and small business façades
• Driveways, car parks and guest parking areas
• Sites that need flexible Wi‑Fi deployment and colour night footage

Installation notes

• Use PoE where possible for stable network power; confirm your switch supports 802.3at if selecting PoE mode.
• When using 12V DC, account for voltage drop on long cable runs and use appropriately sized cable.
• Mount between 3–6 m for optimal coverage and facial recognition balance.
• Configure intelligent detection zones and PTZ presets after mounting to reduce false alarms and ensure full coverage.
• Secure remote access by enabling HTTPS, using strong passwords and restricting management access to trusted IPs.

What’s in the box

• DS‑2DE3A400BW‑DE/W(F1)(T5) camera
• Quick start guide and warranty information
• Mounting template and basic fixings (verify included accessories)
