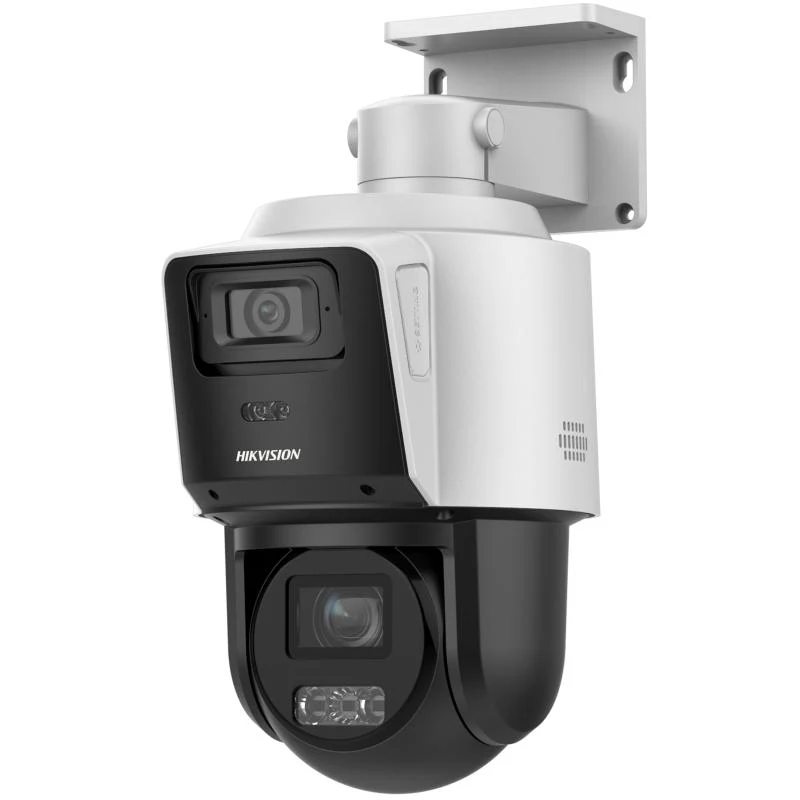

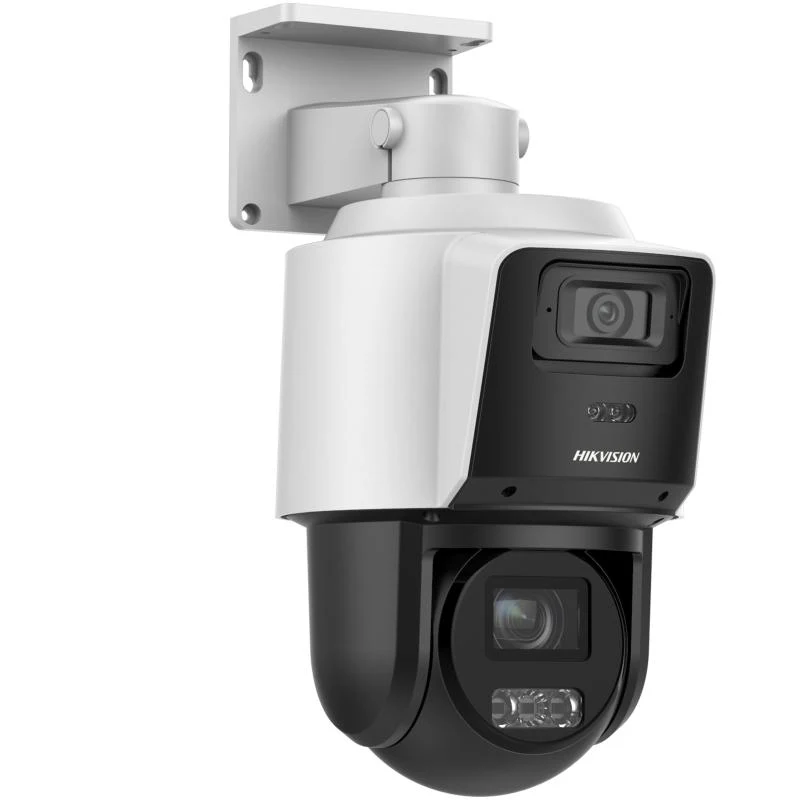

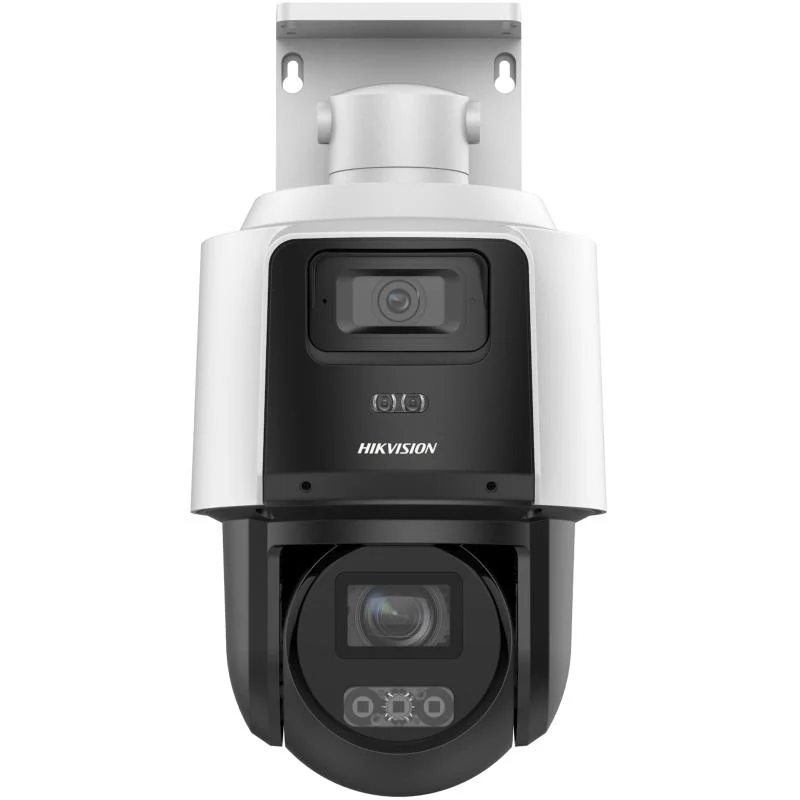

The Hikvision DS-2SE3C404MWG-E/14 TandemVu PTZ Network Camera combines a fixed bullet camera and a PTZ camera in one powerful surveillance solution. This dual 4MP system captures both a wide overview and detailed zoomed images simultaneously, allowing users to monitor large areas while focusing on specific targets.

Powered by DarkFighter low-light technology, the camera delivers clear images even in challenging lighting conditions. With 4× optical zoom, 16× digital zoom, and advanced analytics such as human and vehicle detection, this camera provides reliable and intelligent security monitoring.

Key Features

• TandemVu Dual Camera System – Simultaneously captures wide-angle and detailed views
• 4MP + 4MP Resolution – High-quality imaging on both bullet and PTZ channels
• DarkFighter Technology – Excellent low-light performance
• 4× Optical Zoom – Detailed monitoring with up to 16× digital zoom
• Smart Detection – Supports human and vehicle detection
• Hybrid Illumination – IR and white light support for enhanced night monitoring
• Audio Support – Built-in microphone and speaker
• Flexible Power Options – Supports 12V DC and PoE+
• Weather Resistant – IP66 rated for outdoor installations

Camera & Optics

• Image Sensor: 1/2.8" Progressive Scan CMOS (Bullet & PTZ)
• Max Resolution: 2560 × 1440 (both channels)
• Lens: Bullet 2.8 mm, PTZ 2.8–12 mm
• Optical Zoom: 4×
• Digital Zoom: 16×
• Field of View: Bullet 114.9° horizontal; PTZ 98°–34.2°
• Minimum Illumination: 0.01 Lux (color)
• IR Range: Up to 40 m (PTZ) / 30 m (Bullet)
• White Light Distance: Up to 30 m

PTZ Functions

• Pan Range: 0°–350°
• Tilt Range: -5°–90°
• Pan Speed: 0.1°–30°/s
• Tilt Speed: 0.1°–30°/s
• Presets: 300
• Patrols: 8 patrol scans
• 3D Positioning: Supported
• Power-Off Memory: Yes

Video & Network

• Video Compression: H.265 / H.264 / MJPEG
• Frame Rate: Up to 30 fps at 2560 × 1440
• Video Bitrate: 32 kbps – 16384 kbps
• Audio Compression: G.711, G.722.1, G.726, MP3, AAC
• Network Protocols: TCP/IP, RTSP, HTTPS, FTP, SNMP, NTP, DHCP and more
• API: ONVIF (Profile S/G/T), ISAPI, SDK
• Simultaneous Live View: Up to 20 channels

Storage & Interface

• On-board Storage: MicroSD/SDHC/SDXC up to 512GB
• Ethernet: RJ45 10/100M self-adaptive
• Built-in Microphone: Yes
• Built-in Speaker: Yes
• Reset Button: Yes

Image Enhancements

• Wide Dynamic Range: 120 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Defog: Digital defog
• Privacy Masks: 24 programmable masks
• Regional Exposure / Focus: Supported (PTZ)

General Specifications

• Power Supply: 12 VDC or PoE+
• Max Power Consumption: 13.5 W
• Operating Temperature: -30°C to 50°C
• Protection Rating: IP66
• Material: PC
• Dimensions: 311.5 × 223.5 × 156 mm
• Weight: Approx. 1.37 kg

With advanced analytics, dual-camera TandemVu technology, and robust PTZ capabilities, the Hikvision DS-2SE3C404MWG-E/14 is an ideal surveillance solution for monitoring large areas while capturing detailed events in real time.
