HIK 2MP 32X IP PTZ DS-2DE5232W-AE(T5)

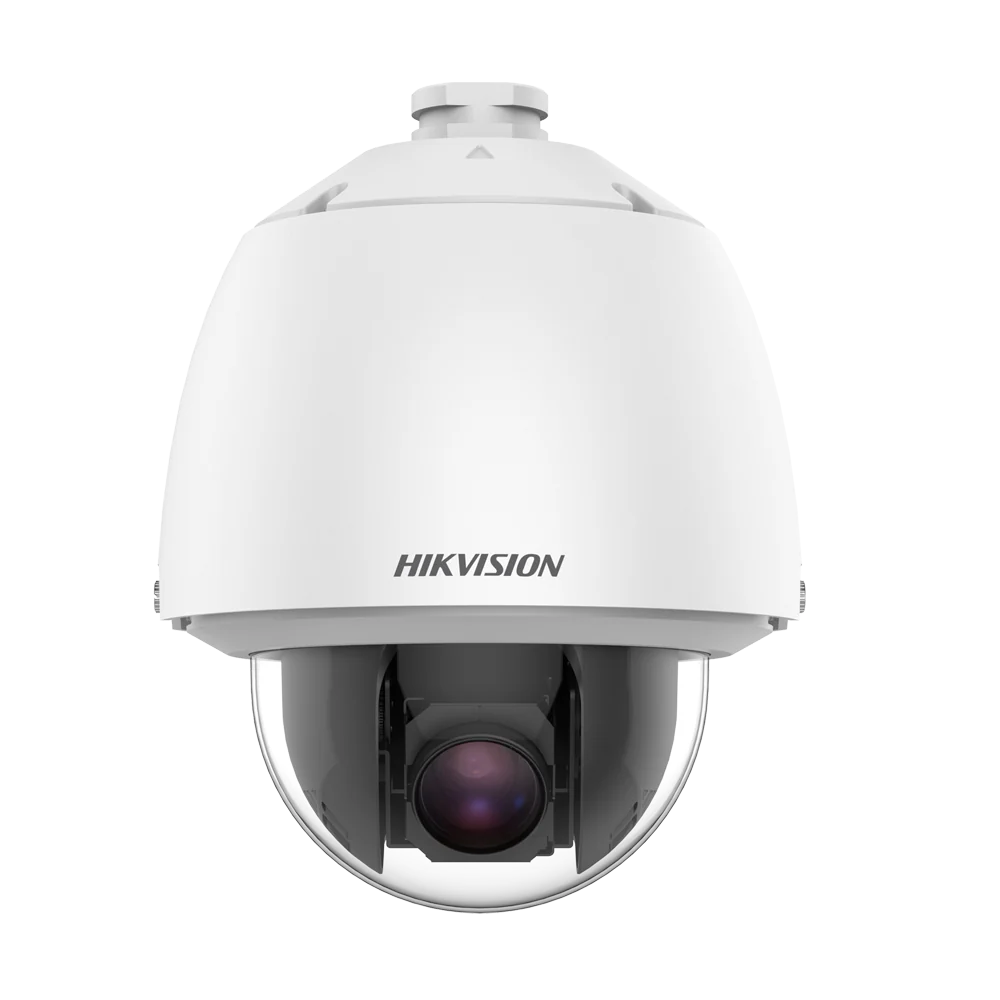

HIKVISION DS-2DE5232W-AE(T5) – 2MP 32× DarkFighter PTZ
Overview
The DS-2DE5232W-AE(T5) is a professional 2MP network PTZ speed dome delivering long-range zoom and strong low-light performance. Featuring a 1/2.8″ progressive scan sensor, 32× optical zoom lens (4.8–153.6 mm), Powered-by-DarkFighter technology and rugged IP66/IK10 housing, it is built for large outdoor perimeters, logistic yards, transport hubs and commercial campuses where both coverage and detail matter.
Key Features
- 2MP resolution — 1920 × 1080 output for effective monitoring and identification.
- 32× optical zoom — 4.8–153.6 mm lens for deep coverage and subject detail at distance.
- DarkFighter low-light imaging — enhanced clarity in very low ambient light conditions.
- Wide range pan/tilt — 360° pan and –5° to 90° tilt (auto-flip) support extensive area coverage.
- Rugged outdoor build — IP66 plus IK10 resistance for reliable external deployment.
- Efficient compression — supports H.265+/H.265/H.264+/H.264 formats to optimise bandwidth and storage.
Technical Specifications (summary)
- Sensor: 1/2.8″ progressive scan CMOS
- Resolution: 1920 × 1080 (2MP)
- Lens / Zoom: 4.8–153.6 mm (32× optical); digital zoom up to 16×
- Field of View (approx): Horizontal ~50.8° to ~2.6°; Vertical ~29.4° to ~1.5°
- Minimum Illumination: Colour 0.005 Lux @ F1.6; B/W 0.001 Lux
- Pan / Tilt: Pan 360° endless; Tilt –5° to +90° (auto-flip)
- Video Compression: H.265+/H.265/H.264+/H.264
- Zoom Speed: Approx. 4.8 seconds from wide to tele
- Ingress Protection: IP66 housing with IK10 resistance
Recommended Applications
- Large open outdoor perimeters, logistics yards, airports and large estate grounds.
- Sites requiring both wide area coverage and detailed zoom-in capability for long distances.
- Commercial and industrial sites where low-light performance and rugged build are critical.
Installation Notes
- Select mounting height and angle to make full use of the 32× zoom range and ensure the lens is clear of obstructions.
- Verify network and power infrastructure supports high data throughput and stable connection for zoomed-in use cases.
- Secure the camera on a dedicated surveillance network segment; enable strong credentials and firmware updates.
- Test night-time performance during commissioning to verify clarity at distance and adjust if necessary.
What’s in the Box (Typical)
- DS-2DE5232W-AE(T5) PTZ camera
- Mounting template and basic fixings
- Quick start guide
HIKVISION DS-2DE5232W-AE(T5) – 2MP 32× DarkFighter PTZ
Overview
The DS-2DE5232W-AE(T5) is a professional 2MP network PTZ speed dome delivering long-range zoom and strong low-light performance. Featuring a 1/2.8″ progressive scan sensor, 32× optical zoom lens (4.8–153.6 mm), Powered-by-DarkFighter technology and rugged IP66/IK10 housing, it is built for large outdoor perimeters, logistic yards, transport hubs and commercial campuses where both coverage and detail matter.
Key Features
- 2MP resolution — 1920 × 1080 output for effective monitoring and identification.
- 32× optical zoom — 4.8–153.6 mm lens for deep coverage and subject detail at distance.
- DarkFighter low-light imaging — enhanced clarity in very low ambient light conditions.
- Wide range pan/tilt — 360° pan and –5° to 90° tilt (auto-flip) support extensive area coverage.
- Rugged outdoor build — IP66 plus IK10 resistance for reliable external deployment.
- Efficient compression — supports H.265+/H.265/H.264+/H.264 formats to optimise bandwidth and storage.
Technical Specifications (summary)
- Sensor: 1/2.8″ progressive scan CMOS
- Resolution: 1920 × 1080 (2MP)
- Lens / Zoom: 4.8–153.6 mm (32× optical); digital zoom up to 16×
- Field of View (approx): Horizontal ~50.8° to ~2.6°; Vertical ~29.4° to ~1.5°
- Minimum Illumination: Colour 0.005 Lux @ F1.6; B/W 0.001 Lux
- Pan / Tilt: Pan 360° endless; Tilt –5° to +90° (auto-flip)
- Video Compression: H.265+/H.265/H.264+/H.264
- Zoom Speed: Approx. 4.8 seconds from wide to tele
- Ingress Protection: IP66 housing with IK10 resistance
Recommended Applications
- Large open outdoor perimeters, logistics yards, airports and large estate grounds.
- Sites requiring both wide area coverage and detailed zoom-in capability for long distances.
- Commercial and industrial sites where low-light performance and rugged build are critical.
Installation Notes
- Select mounting height and angle to make full use of the 32× zoom range and ensure the lens is clear of obstructions.
- Verify network and power infrastructure supports high data throughput and stable connection for zoomed-in use cases.
- Secure the camera on a dedicated surveillance network segment; enable strong credentials and firmware updates.
- Test night-time performance during commissioning to verify clarity at distance and adjust if necessary.
What’s in the Box (Typical)
- DS-2DE5232W-AE(T5) PTZ camera
- Mounting template and basic fixings
- Quick start guide
$786.25
HIK 2MP 32X IP PTZ DS-2DE5232W-AE(T5)—
$786.25
Description
HIKVISION DS-2DE5232W-AE(T5) – 2MP 32× DarkFighter PTZ
Overview
The DS-2DE5232W-AE(T5) is a professional 2MP network PTZ speed dome delivering long-range zoom and strong low-light performance. Featuring a 1/2.8″ progressive scan sensor, 32× optical zoom lens (4.8–153.6 mm), Powered-by-DarkFighter technology and rugged IP66/IK10 housing, it is built for large outdoor perimeters, logistic yards, transport hubs and commercial campuses where both coverage and detail matter.
Key Features
- 2MP resolution — 1920 × 1080 output for effective monitoring and identification.
- 32× optical zoom — 4.8–153.6 mm lens for deep coverage and subject detail at distance.
- DarkFighter low-light imaging — enhanced clarity in very low ambient light conditions.
- Wide range pan/tilt — 360° pan and –5° to 90° tilt (auto-flip) support extensive area coverage.
- Rugged outdoor build — IP66 plus IK10 resistance for reliable external deployment.
- Efficient compression — supports H.265+/H.265/H.264+/H.264 formats to optimise bandwidth and storage.
Technical Specifications (summary)
- Sensor: 1/2.8″ progressive scan CMOS
- Resolution: 1920 × 1080 (2MP)
- Lens / Zoom: 4.8–153.6 mm (32× optical); digital zoom up to 16×
- Field of View (approx): Horizontal ~50.8° to ~2.6°; Vertical ~29.4° to ~1.5°
- Minimum Illumination: Colour 0.005 Lux @ F1.6; B/W 0.001 Lux
- Pan / Tilt: Pan 360° endless; Tilt –5° to +90° (auto-flip)
- Video Compression: H.265+/H.265/H.264+/H.264
- Zoom Speed: Approx. 4.8 seconds from wide to tele
- Ingress Protection: IP66 housing with IK10 resistance
Recommended Applications
- Large open outdoor perimeters, logistics yards, airports and large estate grounds.
- Sites requiring both wide area coverage and detailed zoom-in capability for long distances.
- Commercial and industrial sites where low-light performance and rugged build are critical.
Installation Notes
- Select mounting height and angle to make full use of the 32× zoom range and ensure the lens is clear of obstructions.
- Verify network and power infrastructure supports high data throughput and stable connection for zoomed-in use cases.
- Secure the camera on a dedicated surveillance network segment; enable strong credentials and firmware updates.
- Test night-time performance during commissioning to verify clarity at distance and adjust if necessary.
What’s in the Box (Typical)
- DS-2DE5232W-AE(T5) PTZ camera
- Mounting template and basic fixings
- Quick start guide
