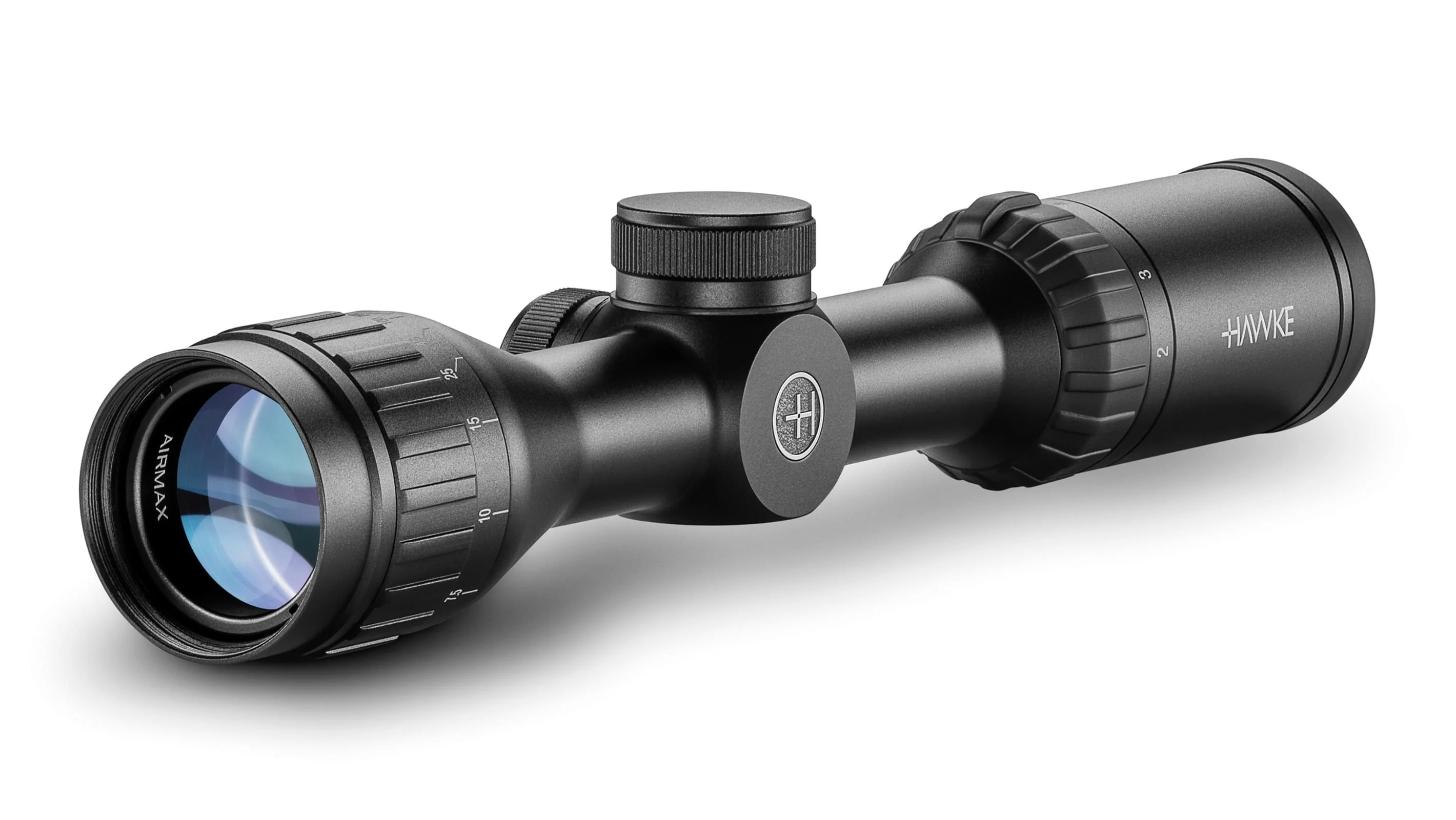

HAWKE AIRMAX 2-7x32 AO AMX RETICLE - 13100
Hawke Optics engineered their 2-7x32 Airmax AO Riflescope to increase the accuracy of airguns by employing a reticle that is specifically designed for airgun use. The duplex ranging reticle is based on a mil-dot system and provides multiple aiming points on all axes to help compensate for the notoriously-wobbly air pellet trajectories.
The scope's 32mm objective and short covered turrets give this optic a low profile with reduced snag possibilities. Capped turrets help guard against accidental adjustments, while its fast-focus collar and zoom ring allow you to quickly adapt to rapidly changing situations.
- 2-7x zoom range
- 32mm objective lens
- 16-layer anti-reflection fully multi-coated optics
- 52.5-18.9' field of view at 100 yards
- Modified duplex crosshair-style reticle
- Etched onto glass for no fading or shift over time
- Placed on second focal plane
- 1 mil spacing on all axes for ranging, hold-over/under, and target size estimation
- 1/2 mil-dot spacing on the lower post offer aim-points for long shots
- Fast-focus collar
- 1/4 MOA per click impact point correction
- 120 MOA windage and elevation adjustment range
- Parallax adjustment

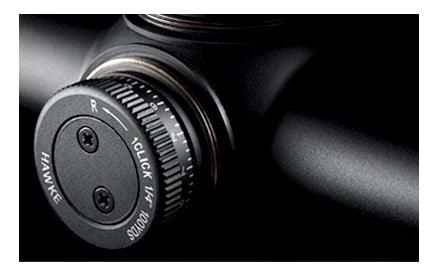

- Side capped turret
- Adjustable from 7.5 yards to infinity
- Low-profile covered turret caps prevent accidental adjustment
- 3.5" long eye relief
- 16-4.5mm exit pupil
AMX Reticle
Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.
Half Mil Dot spacing on the lower post provides increased aim points for long shots.
The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.
Technical Specifications;
|
Length: |
269mm |
|
Weight: |
472g |
|
Eye relief: |
89mm |
|
Focus/Parallax - Adjustable Objective |
7m - ∞ |
|
Field of View: |
17.5 - 6.3m @100m |
|
Exit Pupil: |
16-5mm |
|
Chassis |
1″ Mono-tube |
|
Optical System |
2-7x |
|
Objective |
32mm |
|
Illumination |
N/A |
|
Reticle |
AMX |
|
Elevation Increment |
1⁄4 MOA |
|
Elevation Adjustment Range: |
120 MOA |
|
Windage Increment |
1⁄4 MOA |
|
Windage Adjustment Range |
120 MOA |
|
Material |
Aluminium |
|
Ocular Type |
Fast Focus |
|
Lens Coating |
Fully Multi-Coated - 16 Layers |
|
Power Selector Style |
Rubber Coated Posi-Grip |
|
Focal Plane |
Second Focal Plane (SFP) |
|
Turret Caps |
Yes |
|
Turret Type |
Low Profile |
