EZVIZ HP7 SMART VIDEO INTERCOM - 3MP
EZVIZ HP7 SMART VIDEO INTERCOM - 3MP

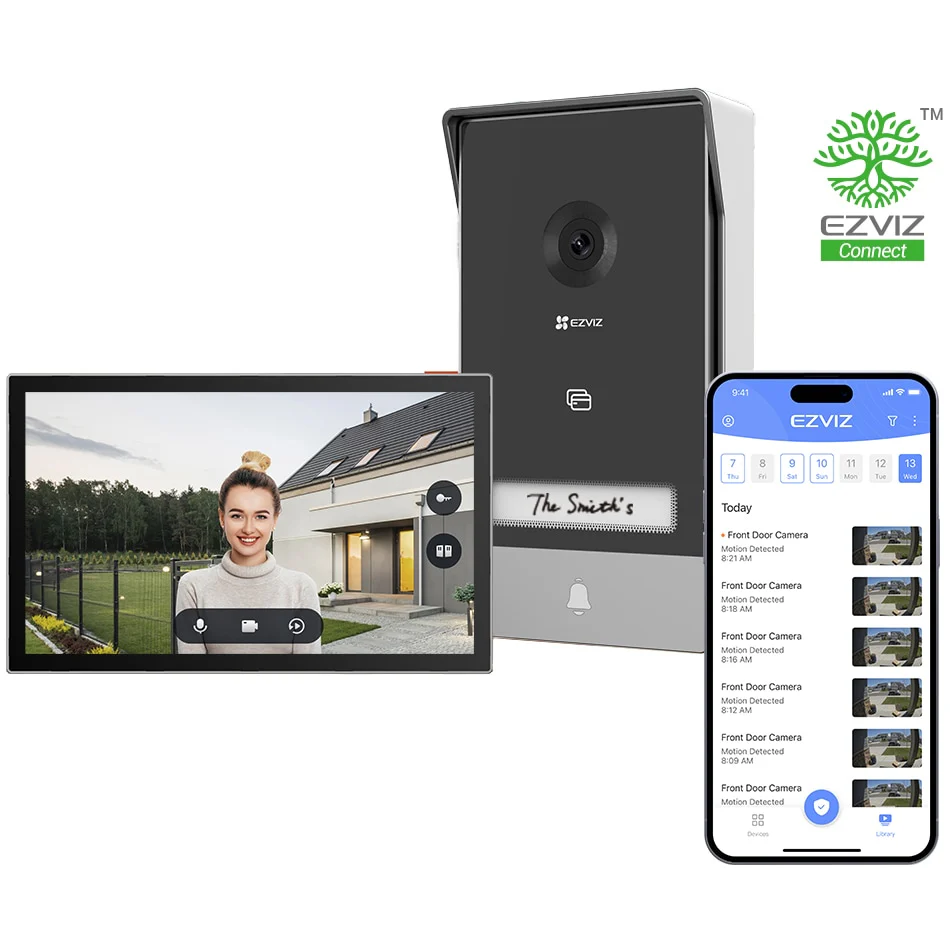

Replace your old doorbell with an advanced, stylish video intercom system. The EZVIZ HP7 features a sharp 2K (3 MP) camera and a 7″ colour touch-screen, ensuring crystal-clear live view, two-way talk, and remote access over Wi‑Fi—even when you're not at home.
Key Features
2K (2048 × 1296) Resolution & 162° Viewing Angle
Render true-to-life video from head to toe, even in low light, with up to 5 m IR night vision
Dual-Band Wi‑Fi (2.4 GHz / 5 GHz)
Reliable and low-latency connectivity for both indoor monitor and app
7-Inch Touch LCD Monitor
Large in-home display for adjustable volume, live view, talkback, playback, and screen control
Smart Human Motion Detection
Adjust sensitivity and detection zones; get instant alerts for real-time protection

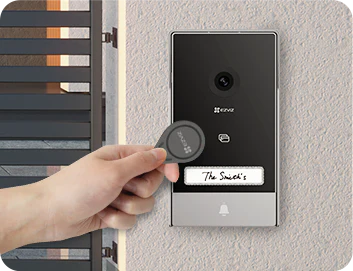

Gate/Door Unlocking & RFID Entry
Supports remote, monitor, and RFID tag-based unlocking (3 tags incl.) with dry contact relay for gates/locks (12 V/2 A)
Privacy Voice-Changer Feature
Alter voice during conversations for added privacy
Local & Cloud Storage
Supports microSD (up to 512 GB) and optional encrypted EZVIZ CloudPlay
Weatherproof & Robust
Outdoor unit is IP65 rated and operates in –30 °C to 60 °C (install sheltered); indoor screen supports 0 °C–45 °C .
Modern & Sleek Design
High-gloss black exterior, with backlit nameplate and 20 ringtone options
Specifications Snapshot
| Feature | Details |
|---|---|
| Camera | 1/2.7″ CMOS, 2K (2048 × 1296), 162° FOV, 5 m IR |
| Monitor | 7″ LCD Touch, 1024 × 600 resolution |
| Wi‑Fi | IEEE 802.11 b/g/n/ac dual‑band |
| Power & Relay | 12–24 V DC input; 12 V/2 A dry‑contact output |
| Dimensions | Outdoor: 161 × 87 × 20 mm; Indoor: 180 × 111 × 15 mm |
| Temp & Humidity Range | Outdoor: –30 °C to 60 °C @ ≤95 %; Indoor: –10 °C to 45 °C |
| Storage Options | SD card up to 512 GB, EZVIZ Cloud, H.265 video |

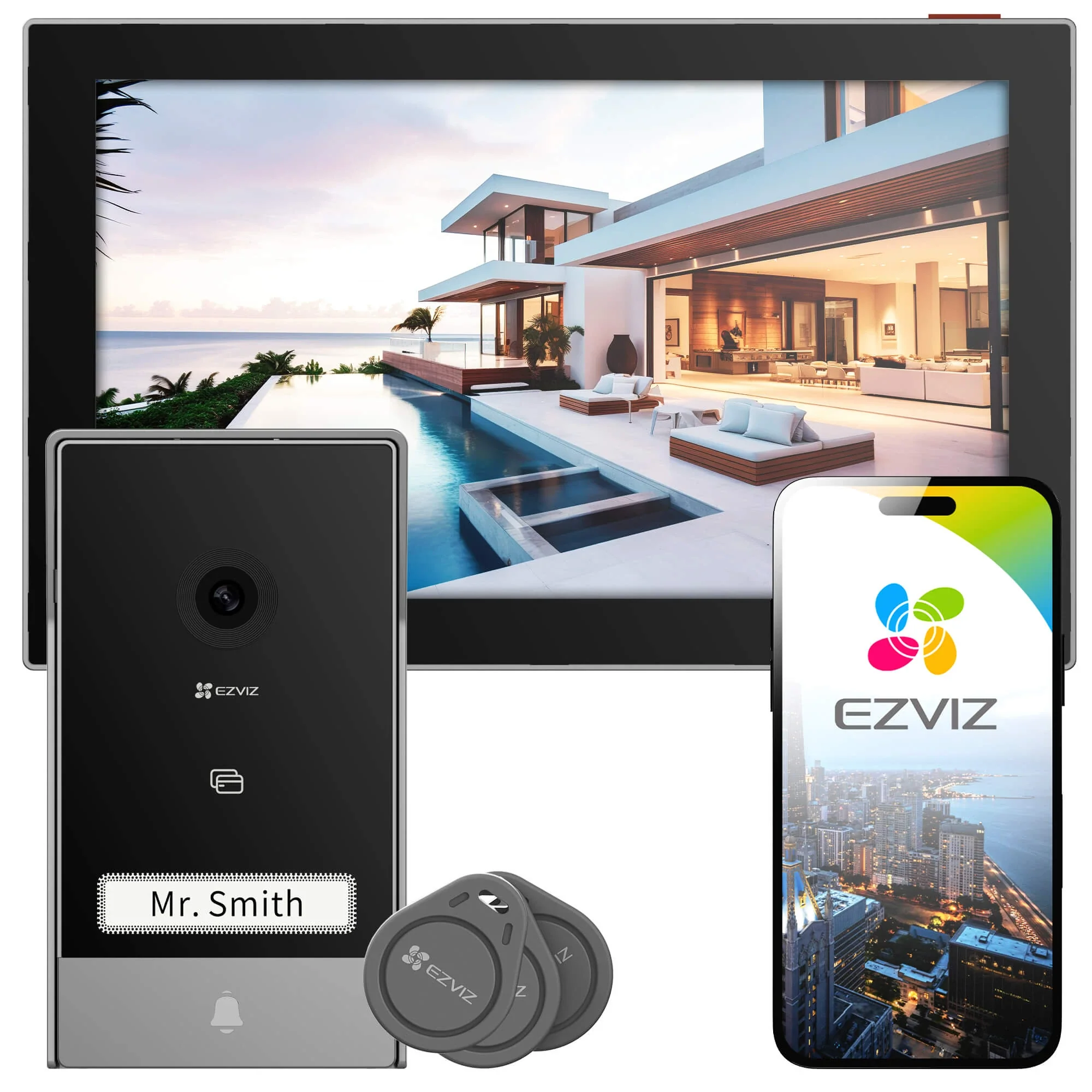

Included in the Bundle
1 × Outdoor intercom panel with camera & RFID reader
1 × 7″ colour touch-screen indoor monitor
3 × RFID unlock tags
Mounting hardware (brackets, screws, template)
Power and connection cables
MicroSD slot (card not included) & quick-start guide
