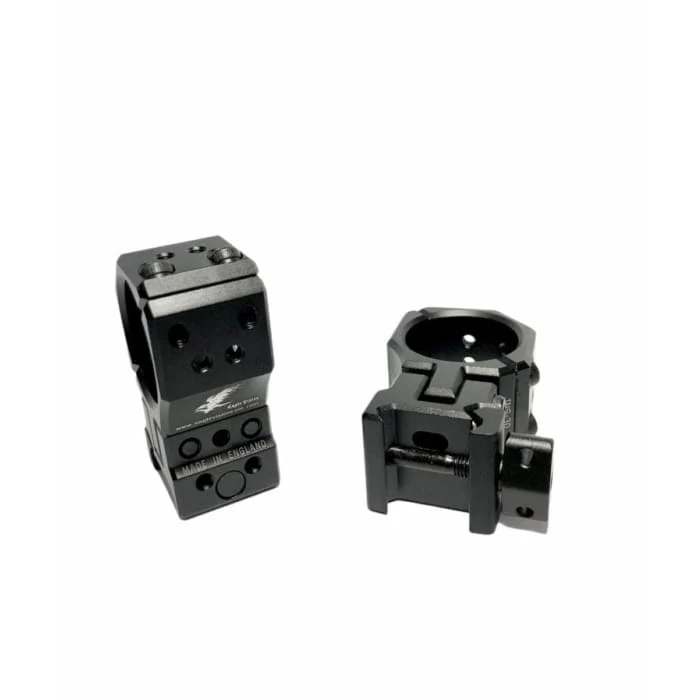

INFINITY Adjustable Scope Mount for 34mm Rings – P-ST-EV/INS34

Extend your long-range shooting capability with these innovative height-adjustable scope mounts. Designed for PCP and spring air rifles, these mounts allow vertical scope adjustment along a guided path, eliminating the need to max out turret clicks.

Important: Only remove elevation screws when mount is fully open to prevent damage.

Benefits

• Converts from low-profile to high-profile configuration
• Ideal when scope objective sits too close to barrel or shroud
• Reach extreme distances without exhausting turret adjustments
• Maintains optical centre of scope – optimal for long-range precision
• Accommodates scopes with awkward ring spacing or rail positioning

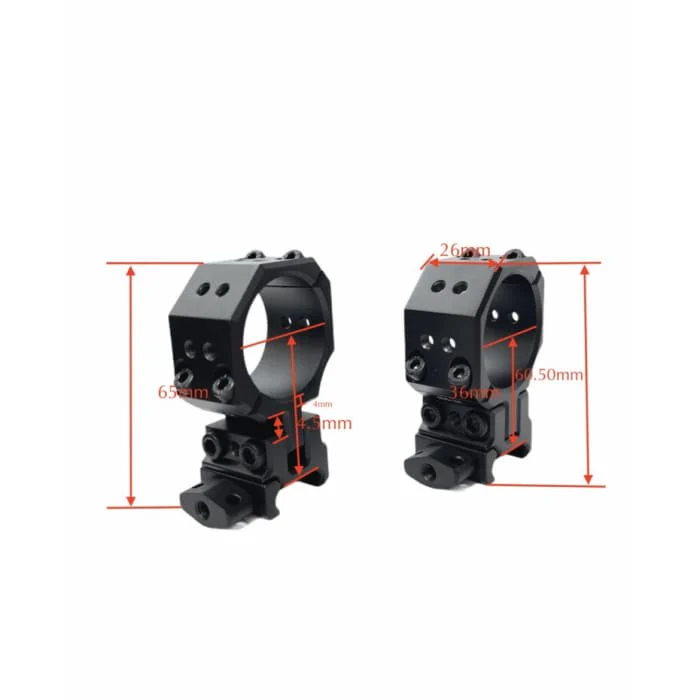

Technical Specifications

• Total Height: 68.25mm to 77.75mm (adjustable)
• Profile Height: 23mm
• Adjustable Range: 9.5mm
• Weight: 81g per mount
• Ring centre to rail bottom: 41mm (closed) / 51.5mm (open)
• Ring Size: 34mm
• Rail Compatibility: 20mm Picatinny

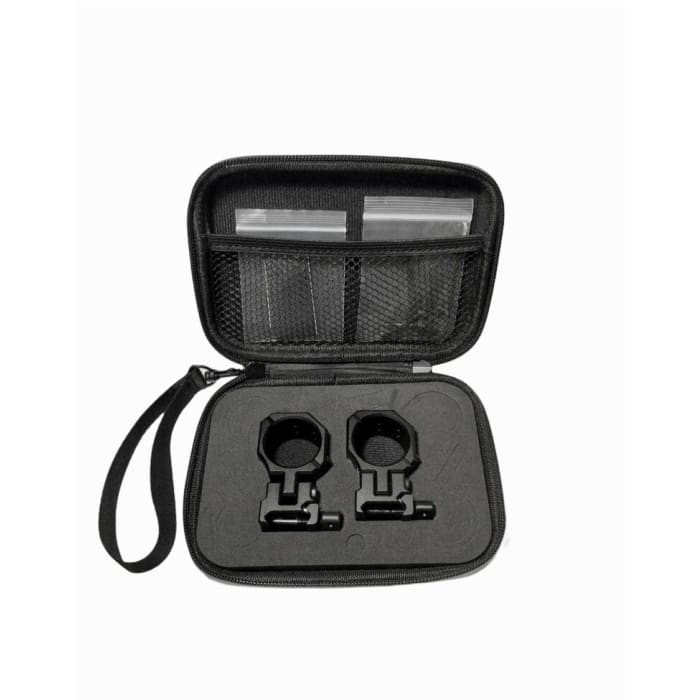

Package Contents

• 2x INFINITY adjustable scope mounts
• 2x Allen keys (two sizes)
• 5x Spare screws
• Protective ring fabric
• Waterproof storage case

Torque Specifications

• Ring screws: 15-20 in-lbs (1.68-2.25 Nm)
• Adjustable side screws: 53-71 in-lbs (6-8 Nm)
• Picatinny nuts: 53-71 in-lbs (6-8 Nm)
