DISCOVERY MS 6-24X42 AOAC SCOPE

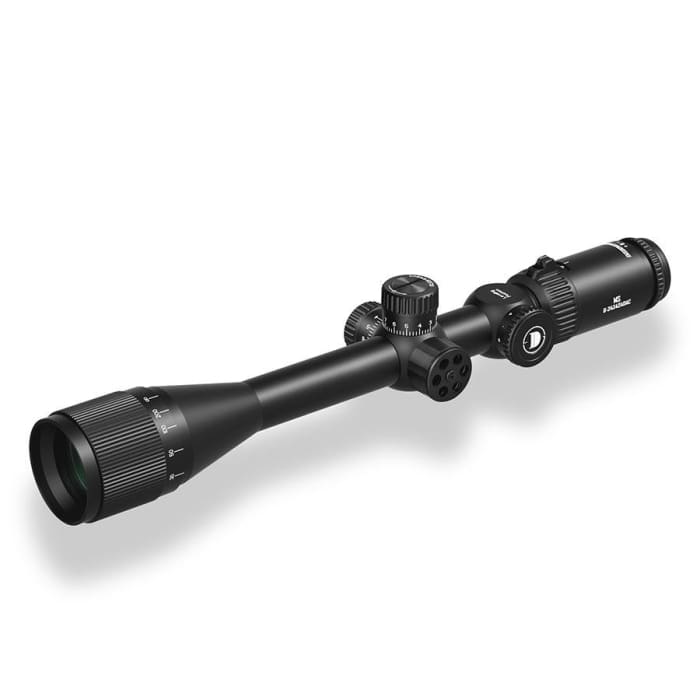

MS Series Magnum Shockproof 6-24X42 Second Focal Plane Rifle Scope
Built for durability, the MS (Magnum Shockproof) Series rifle scope features an enhanced axial and horizontal shock-resistant design. Ideal for air rifle shooters who demand reliability, this second focal plane optic eliminates concerns about recoil damage.

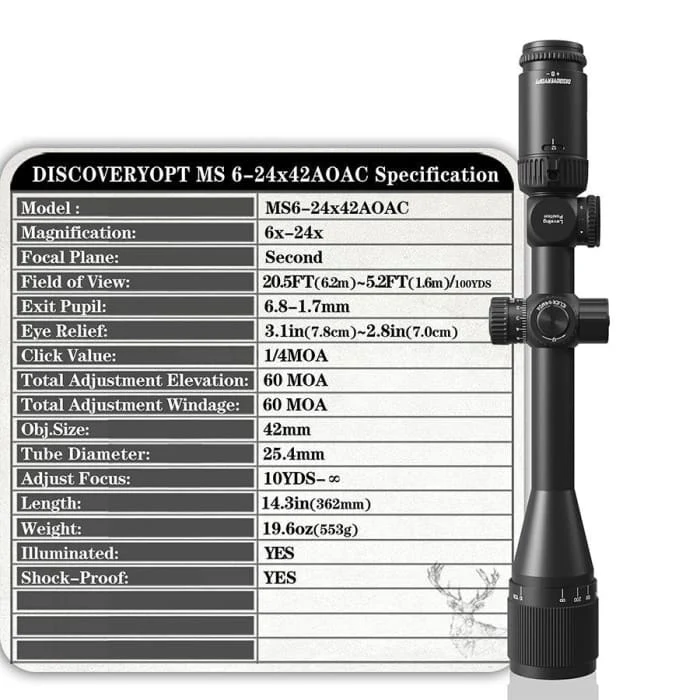

Key Specifications
- Magnification: 6-24X
- Objective Lens Diameter: 42mm
- Tube Diameter: 25.4mm (1 inch)
- Overall Length: 36.2cm (12.8 inches)
- Weight: 553g (19.6 oz)
Optical Performance
- Field of View: 20.5 ft (6.2m) to 5.2 ft (1.6m) at 100 yards
- Exit Pupil: 10.6mm – 2.6mm
- Eye Relief: 3.1 in (7.8cm) to 2.8 in (7.2cm)

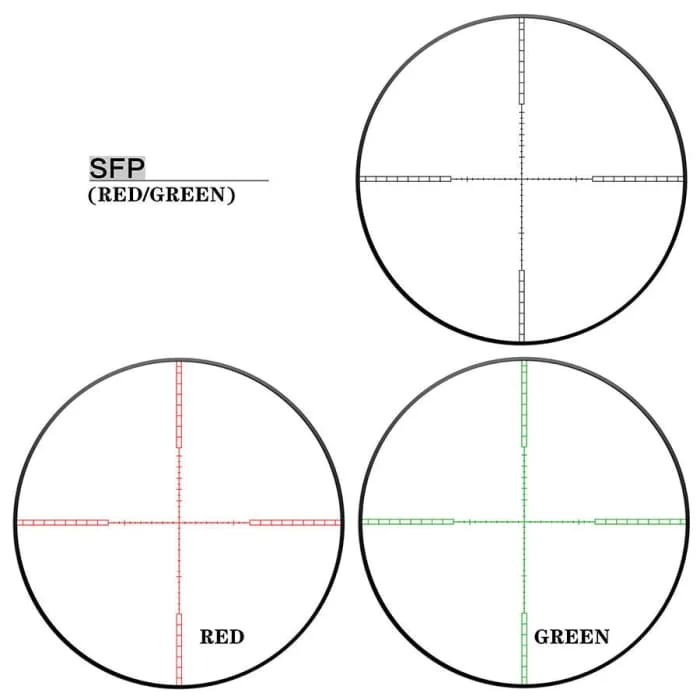

Reticle & Illumination
- Reticle: HMD SFP IR-MIL
- Focal Plane: Second Focal Plane (SFP)
- Illumination: Red & Green with 5 brightness positions

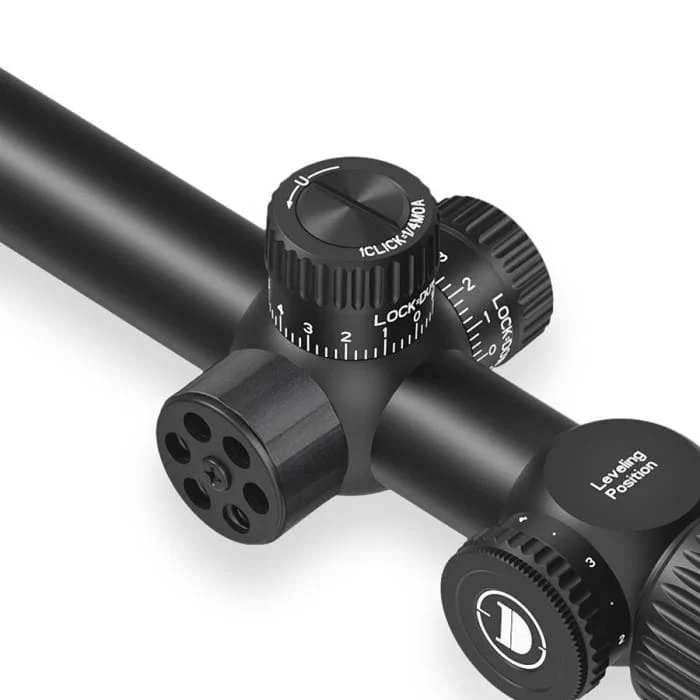

Adjustment Features

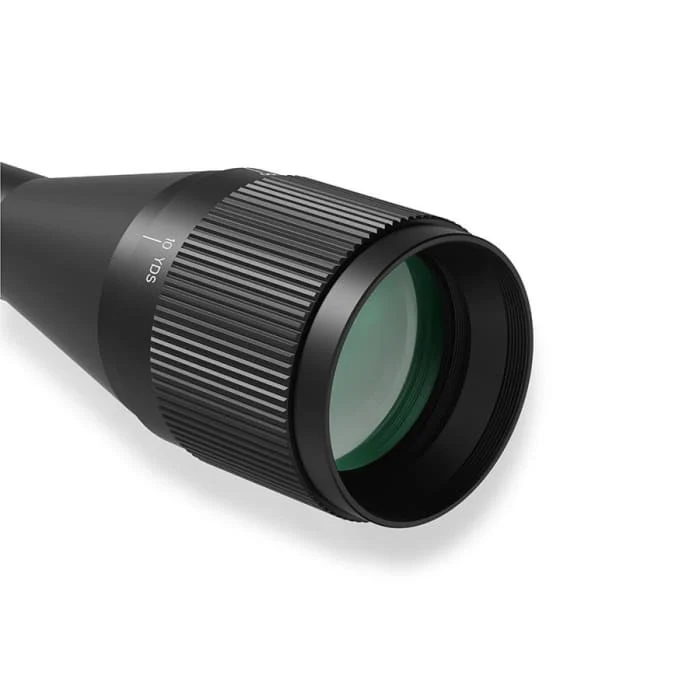

- Focus Adjustment: Adjustable Objective (AO)
- Parallax Adjustment: 5 yards to infinity
- Click Value: 1/4 MOA
- Elevation Adjustment Range: 50 MOA
- Windage Adjustment Range: 50 MOA
- Zero Reset: Yes
- Zero Lock: Yes (Lock = Down)
- Zero Stop: No
- Revolution Indicator: No
Durability Features
- Lens Coating: Fully Multi-Coated
- Nitrogen Filled: Yes
- Shockproof: Yes
- Waterproof: Yes
- Fogproof: Yes
MS Series Magnum Shockproof 6-24X42 Second Focal Plane Rifle Scope
Built for durability, the MS (Magnum Shockproof) Series rifle scope features an enhanced axial and horizontal shock-resistant design. Ideal for air rifle shooters who demand reliability, this second focal plane optic eliminates concerns about recoil damage.
Key Specifications
- Magnification: 6-24X
- Objective Lens Diameter: 42mm
- Tube Diameter: 25.4mm (1 inch)
- Overall Length: 36.2cm (12.8 inches)
- Weight: 553g (19.6 oz)
Optical Performance
- Field of View: 20.5 ft (6.2m) to 5.2 ft (1.6m) at 100 yards
- Exit Pupil: 10.6mm – 2.6mm
- Eye Relief: 3.1 in (7.8cm) to 2.8 in (7.2cm)
Reticle & Illumination
- Reticle: HMD SFP IR-MIL
- Focal Plane: Second Focal Plane (SFP)
- Illumination: Red & Green with 5 brightness positions
Adjustment Features
- Focus Adjustment: Adjustable Objective (AO)
- Parallax Adjustment: 5 yards to infinity
- Click Value: 1/4 MOA
- Elevation Adjustment Range: 50 MOA
- Windage Adjustment Range: 50 MOA
- Zero Reset: Yes
- Zero Lock: Yes (Lock = Down)
- Zero Stop: No
- Revolution Indicator: No
Durability Features
- Lens Coating: Fully Multi-Coated
- Nitrogen Filled: Yes
- Shockproof: Yes
- Waterproof: Yes
- Fogproof: Yes
Original: $69.50
-70%$69.50
$20.85Description
MS Series Magnum Shockproof 6-24X42 Second Focal Plane Rifle Scope
Built for durability, the MS (Magnum Shockproof) Series rifle scope features an enhanced axial and horizontal shock-resistant design. Ideal for air rifle shooters who demand reliability, this second focal plane optic eliminates concerns about recoil damage.
Key Specifications
- Magnification: 6-24X
- Objective Lens Diameter: 42mm
- Tube Diameter: 25.4mm (1 inch)
- Overall Length: 36.2cm (12.8 inches)
- Weight: 553g (19.6 oz)
Optical Performance
- Field of View: 20.5 ft (6.2m) to 5.2 ft (1.6m) at 100 yards
- Exit Pupil: 10.6mm – 2.6mm
- Eye Relief: 3.1 in (7.8cm) to 2.8 in (7.2cm)
Reticle & Illumination
- Reticle: HMD SFP IR-MIL
- Focal Plane: Second Focal Plane (SFP)
- Illumination: Red & Green with 5 brightness positions
Adjustment Features
- Focus Adjustment: Adjustable Objective (AO)
- Parallax Adjustment: 5 yards to infinity
- Click Value: 1/4 MOA
- Elevation Adjustment Range: 50 MOA
- Windage Adjustment Range: 50 MOA
- Zero Reset: Yes
- Zero Lock: Yes (Lock = Down)
- Zero Stop: No
- Revolution Indicator: No
Durability Features
- Lens Coating: Fully Multi-Coated
- Nitrogen Filled: Yes
- Shockproof: Yes
- Waterproof: Yes
- Fogproof: Yes
