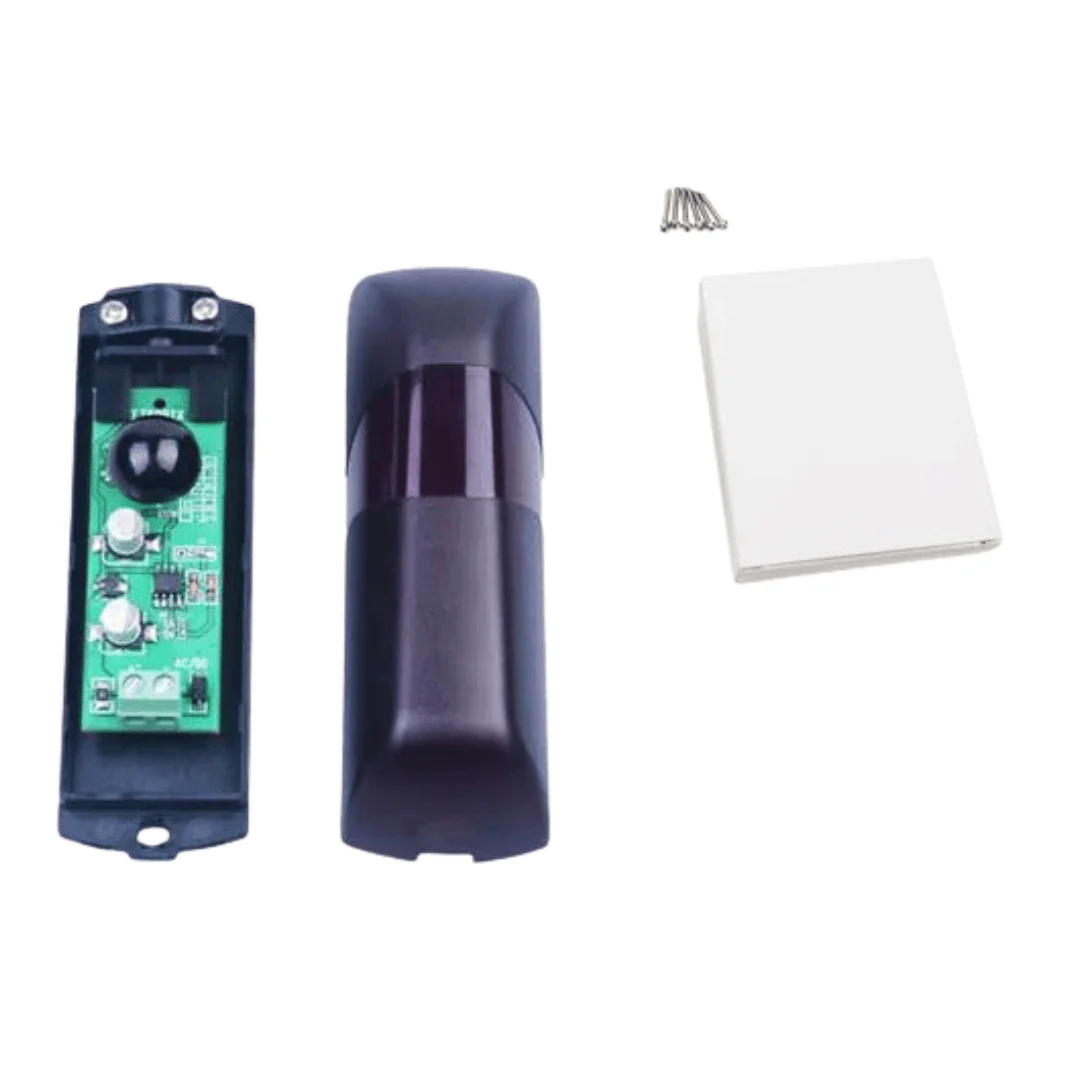

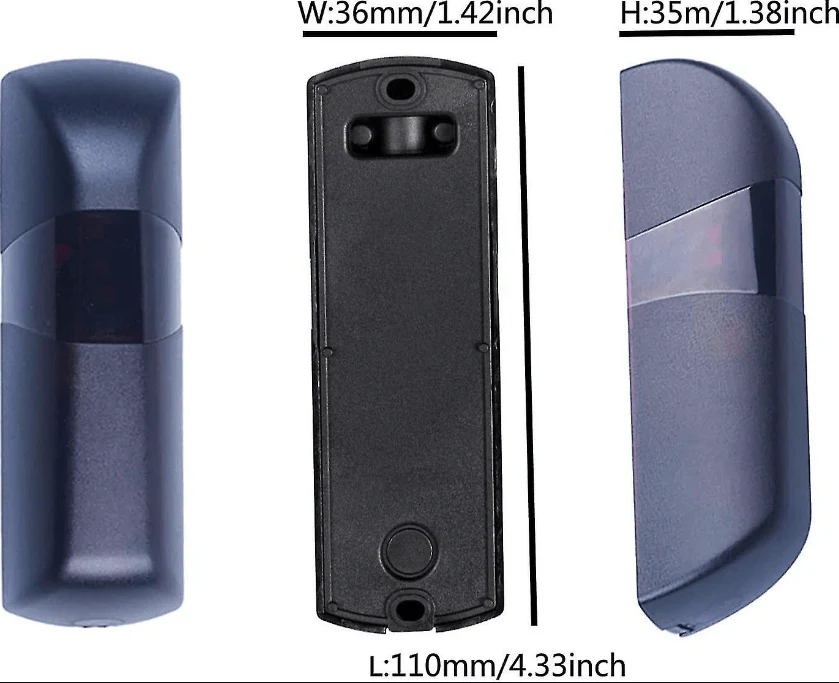

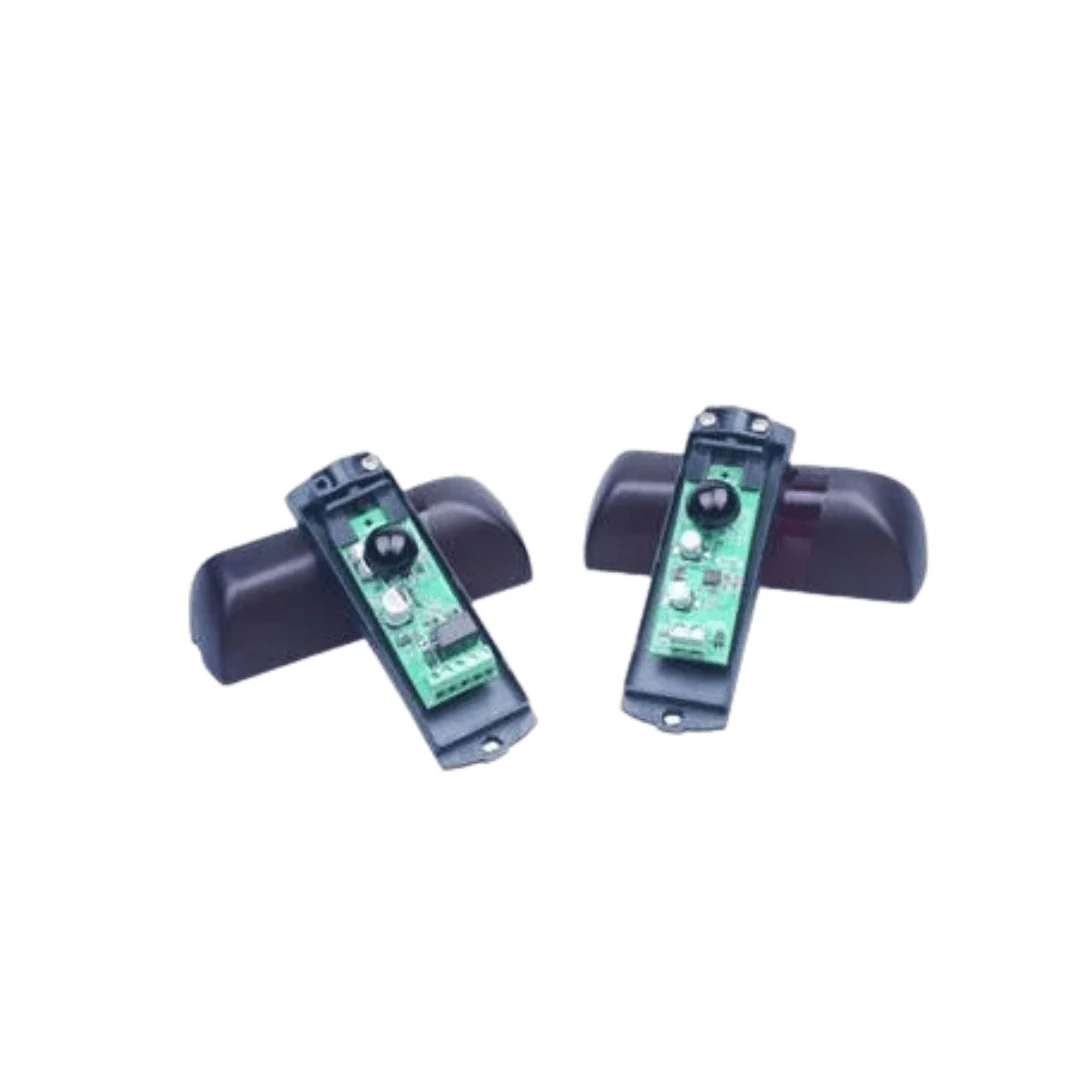

ACTIVE INFRARED DECTECTOR BEAM

1 X Beam Safety Sensor, Ac 12/24V Power Supply, Output Without Nc Com. Reduced By 30% In Bad Weather. Wall-Mounted Type, 135 Rotatable Electronic Board Allows For Unaligned Installation. Not Waterproof, Ip55 Rating, Works With All Gate Openers/Door Openers. Garage/Sliding Roller Shutters. Function: Infrared Photocell Automatically Stops Or Reverses The Motor/Operator When An Object Is Detected When Closing The Door.

1 Beam Detector
Detective Distance: ?15m Outdoor
Power Supply?12-24V AC/DC
Current : TX30MA,RX:15MA
Relay Output:1A,36V Max
Wave Length: 940NM

 - PLEASE NOTE THAT PICTURES ARE FOR ILLUSTRAION USE ONLY AND MAY VARY         ACTUAL PRODUCT.
