- 🐵 INPUT 3000 PSI (SWP) / Output: 900 PSI (via the regulator - tested in-store)
- 🙈 Bottle / Base thread: 5/8"-18UNF - Supplied w/ O-ring.
- 🙉 Top thread : 5/8" - 18 UNF (ASA Standard)
- 🙊 Weight: 137 grams
- 🐒 Height: 86mm
- 🐵 Burst disks: 1.8k (Regulator), 5K (Bottle)
- 🙈 Gauge: (In PSI, 1-5 x1000 resolution), 1/8” BSP male threaded
- 🙉 Regulator type: Compressed Belleville washer stack, not externally adjustable
- 🙊 Filling Q/C filter: None
- 🐒 Quality: 8/10. Presumed to be TUXING branded
- 🐵 Regulator retention: 2x M2.5 grub screws
This is basically a HPA tank valve w/ regulator - Please always confirm the SWP stamped on the bottle to confirm, ESPECIALLY when working with high pressure air.
CO2 can be filled into a HPA bottle to maximum capacity, but HPA cannot be filled into a CO2 bottle to 3000 PSI.
Could you take an old PCP rifle bottle and chuck this on and have a receptacle ready for your paintball marker? No, the bottle threads are usually M18x1.5. You do get those via the Chinese manufacturers, but as of the time of typing this, it isn't locally available yet.
This will fit onto all paintball markers, just note the output pressure: 900 PSI.

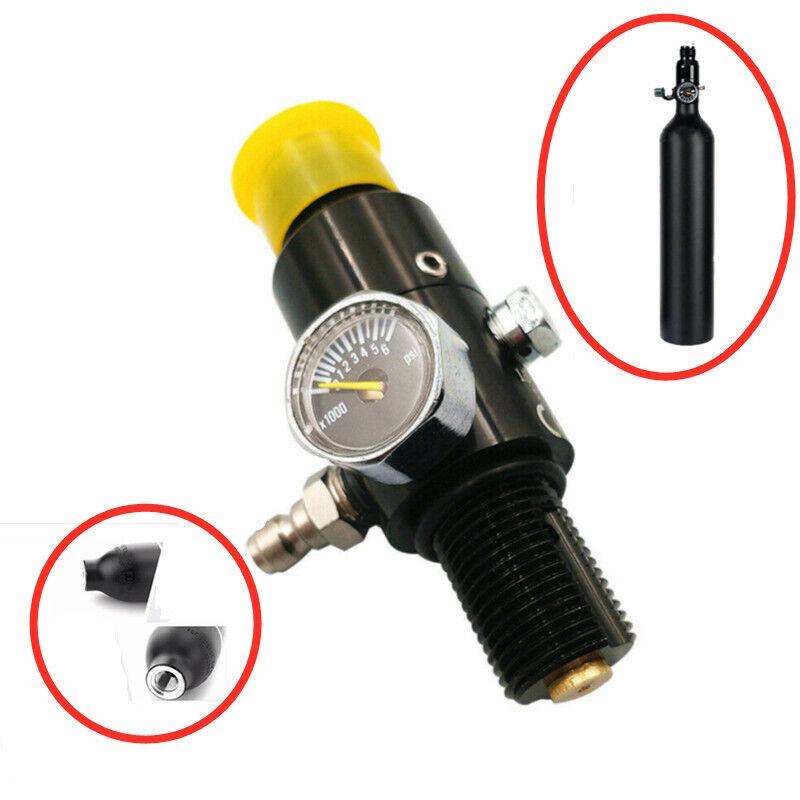

Supplied w/ the yellow cap / thread protector as illustrated. The inlet male Q/C does come w/ the grey protective cover / cap.
Will fit most all paintball tanks available on the market - intended as a replacement unit.
