VECTOR OPTICS DOVETAIL RINGS 25.4MM XASR-2515

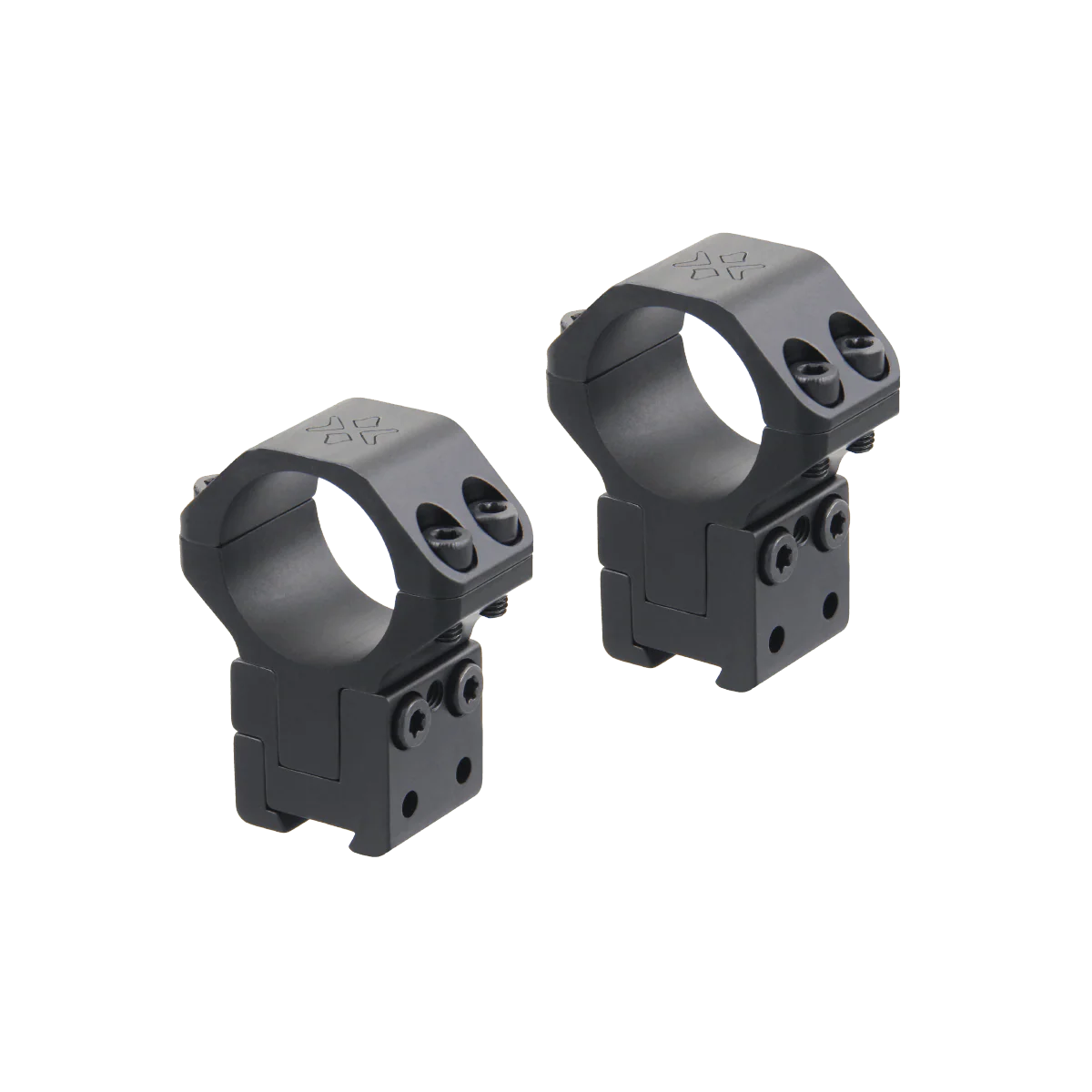

Vector Optics X-ACCU 25.4mm (1") Adjustable Elevation Dovetail Rings – XASR-2515
Precision-Engineered Scope Rings for Optimal Alignment
The Vector Optics X-ACCU 25.4mm (1") Adjustable Elevation Dovetail Rings (Model: XASR-2515) are meticulously crafted to provide shooters with a customizable and secure mounting solution. Designed for 25.4mm (1") scope tubes, these rings offer adjustable elevation settings, ensuring optimal alignment and accuracy for various shooting applications.
Key Features
Adjustable Elevation Height
Allows for elevation adjustments ranging from 33mm to 39mm (1.3" to 1.5") from the base to the ring center, facilitating precise scope alignment.
Robust Construction
Crafted from durable 6061-T6 aluminum alloy with a black matte finish, ensuring strength and resistance to wear.
Secure Mounting
Each ring is secured with four Torx screws, providing a firm grip on the scope and maintaining zero under recoil.
Compatibility
Fits 11mm dovetail rails and accommodates scopes with objective lenses up to 56mm in diameter.
Lightweight Design
Weighs only 105g (3.7oz), adding minimal weight to your firearm setup.
Specifications
| Feature | Details |
|---|---|
| Model | XASR-2515 |
| Tube Diameter | 25.4mm / 1 inch |
| Elevation Height | 33mm – 39mm (1.3" – 1.5") |
| Ring Width | 21mm / 0.8 inch |
| Weight | 105g / 3.7oz |
| Material | 6061-T6 Aluminum Alloy |
| Finish | Black Matte |
| Mount Type | 11mm Dovetail |
| Screws per Ring | 4 Torx Screws |
| Max Objective Lens | Up to 56mm |
| Torque Specification | Do not exceed 18 in-lbs on ring screws |
What’s in the Box
Vector Optics X-ACCU 25.4mm (1") Adjustable Elevation Dovetail Rings (Model: XASR-2515)
T15 Torx Wrench
