High-Pressure PCP Air Compressor — Dual Piston 4-Stage System

Important: Add antifreeze to the water tank if operating in freezing temperatures.

Advanced Dual-Piston 4-Stage Compression Technology

Engineered by GX pump specialists, this PCP compressor features exclusive dual-piston, 4-stage compression for faster fill times. The powerful 1200W motor reaches maximum pressures of 40 MPa (5800 PSI) with ease. Rifles typically fill in 2–3 minutes. Compatible with most PCP, paintball, and scuba tanks up to 20L and beyond. Note: Scuba applications are not certified.

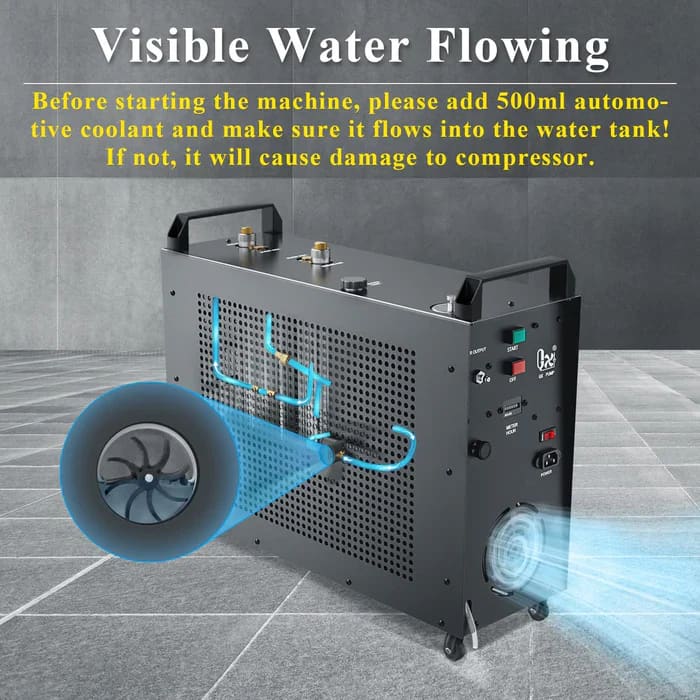

Dual Water & Fan Cooling System

This filling station combines a high-seal water tank cooling system with a powerful cooling fan. A water level indicator allows easy monitoring. Simply remove the cap to add water as needed.

Critical: Water tank is drained for shipping. Add 500ml of automotive coolant before first use to prevent damage.

Dual Auto-Stop & Moisture Filtration

Set automatic shutoff using the twin indicator arms on the large, shock-resistant pressure gauge. Once target pressure is reached, the compressor stops automatically and bleeds off moisture. Simply connect your air cylinder or airgun, press start, and walk away.

Rapid Fill Times

• 6.8L tank: 0–4500 PSI in approximately 45 minutes
• 0.5L tank: 1000–4500 PSI in 2.5 minutes
• 0.5L tank: 1000–3000 PSI in 1.6 minutes
• 1L tank: 1000–4500 PSI in 5 minutes
• 1L tank: 1000–3000 PSI in 3.5 minutes

Notice: Compression method protected by exclusive design patent US 9,726,165 B2.

Grease Injection System & 18-Month Warranty

Grease tank comes pre-filled from factory. Spare grease needle not included — recommend purchasing food-grade E.P. grease for refills.

Important: Do not adjust grease injection for the first 50 hours of operation to prevent excess grease and compromised air quality. After 50 hours, turn 2/3 rotation as needed.

Warning: Do not add external filter systems — doing so will cause damage.
