Offset rifle scope mounting with 30mm diameter, prism rail 11-14mm, strong design

Very stable construction made of weatherproof coated aircraft aluminium (screws made of steel). The mounting is suitable for riflescopes with a 30mm (25.4mm with adapters) center tube diameter.

• Recommended for PCP, paintball and airsoft - low / zero recoil applications

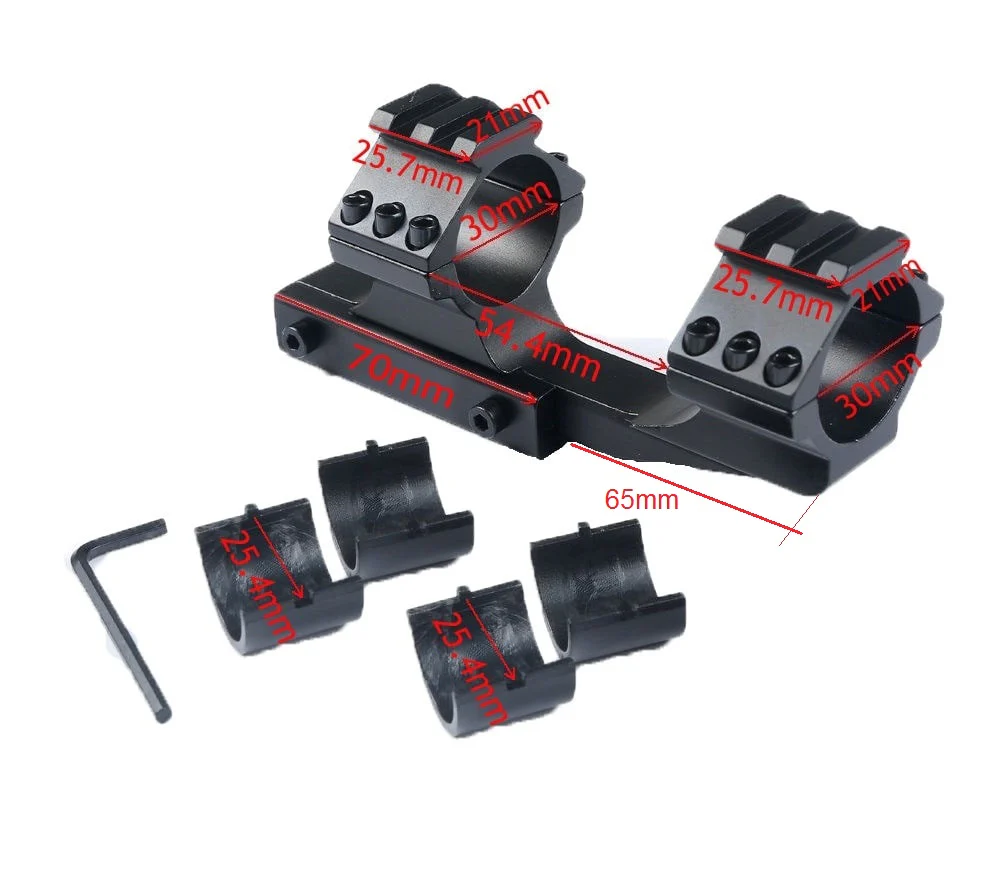

• Ring diameter 30 mm (with adapter rings 25.4mm)
• Effective Elevation 21mm
• Material: Aircraft Aluminium (Screws, Steel)
• Distance between the rings 54.5mm
• For Dovetail rail width (profile) 11mm - 14mm
• Top mount for Picatinny rail 21mm
• 6x lockbolts per mount ring, 3x a side

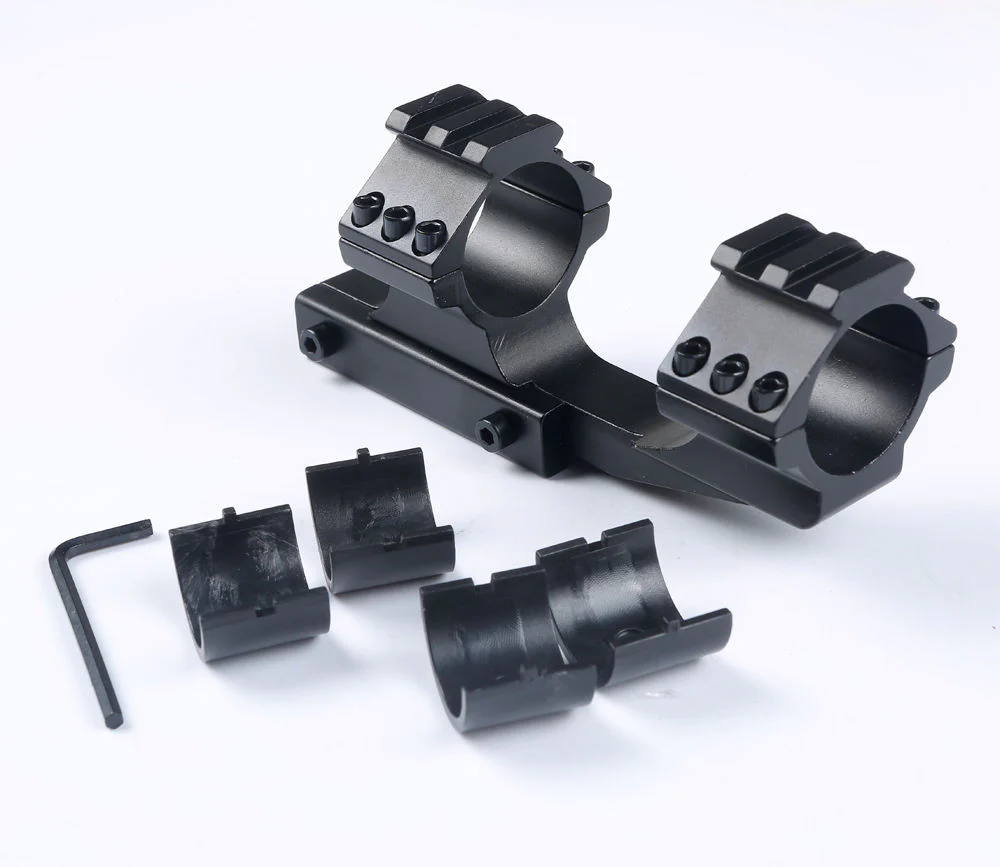

Scope of delivery

• Single piece cantilevered mount ring
• Adapter Rings Set for 25.4 mm Diameter (Made of Hard Plastic)
• Allen wrench
