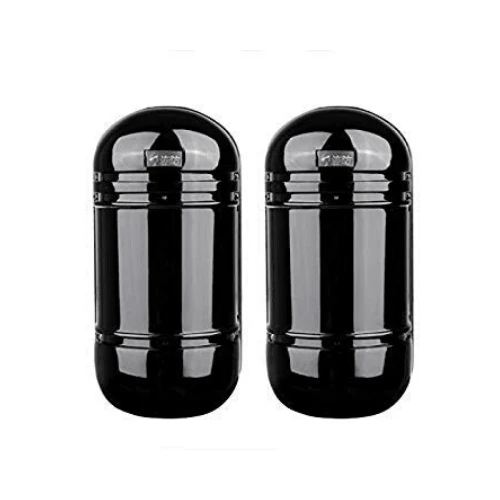

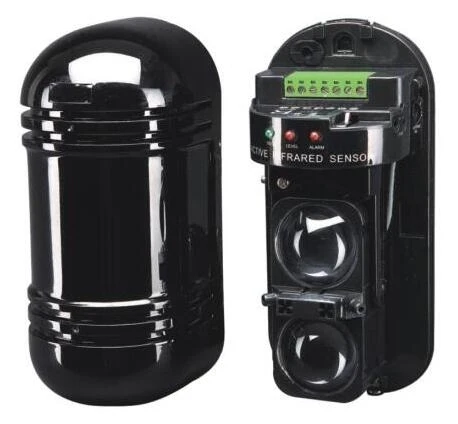

Photo Beams (Invisible Fence) can be used for defense perimeter security, entry alert or as a trigger for an open/close gate system. Solutions for many applications, which require both beams to be broken in order to trigger (NO/NC) an event.

Model	�	ABT-30�	ABT-60
Protection Distance	Indoor	30 m	60 m
	Outdoor	90 m	180 m
Max. Arrival Distance�		360 m�	650 m
Infrared Beam�		2 Beams
Detection System�		Simultaneous cut-off of 2 beams
Light Source		�Infrared LED
Response Time		�50-700 m/sec
Alarm Signal�		Form �C� (SPDT) relay contacts� � � � � � � � Rating: 0.5A max at 30 VAC
�		�DC
Supply Voltage DC�		10.5 - 28V
Current Consumption�		40 mA Max.�	55 mA Max.�
Temperature Range�		-25�C - 55�C
Dimensions (H X W X D)�		171 X 82 X 77 mm
Tamper Range�		Form �B� (SPST) relay contacts
Optical Axis Adjustable Angle (Horizontal)�		180� (�90�)
Optical Axis Adjustable Angle (Vertical)�		20� (�10�)
Collimator�		Viewfinder with peep window
Measure for Moisture/Frost�		Sit type cover
Other Additional Functions�		Alignment LED and Monitor Jack
Material�		ABS Plastic
Weight�		300 g (Transmitter & Receiver)
